Wo finde ich das Stromversorgungsschema und die Leistungsdaten für die P/N: E323104?

Dieser Artikel bietet weitere Informationen zu P/N: E323104 Stromversorgungszeichnung und Stromspezifikationen

E323104 Stromversorgungszeichnung und Stromspezifikationen sind unten aufgeführt.

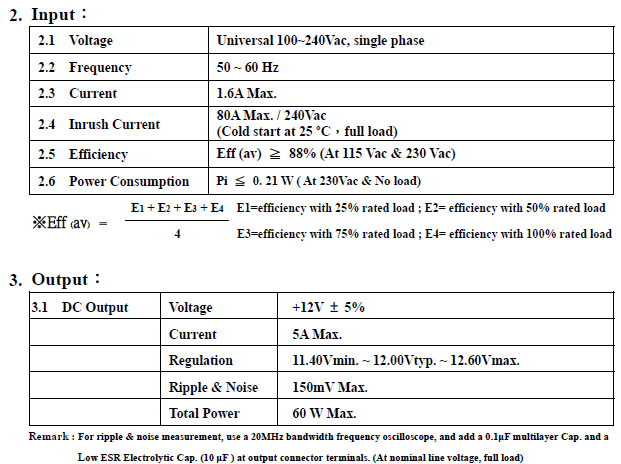

Stromspezifikationen

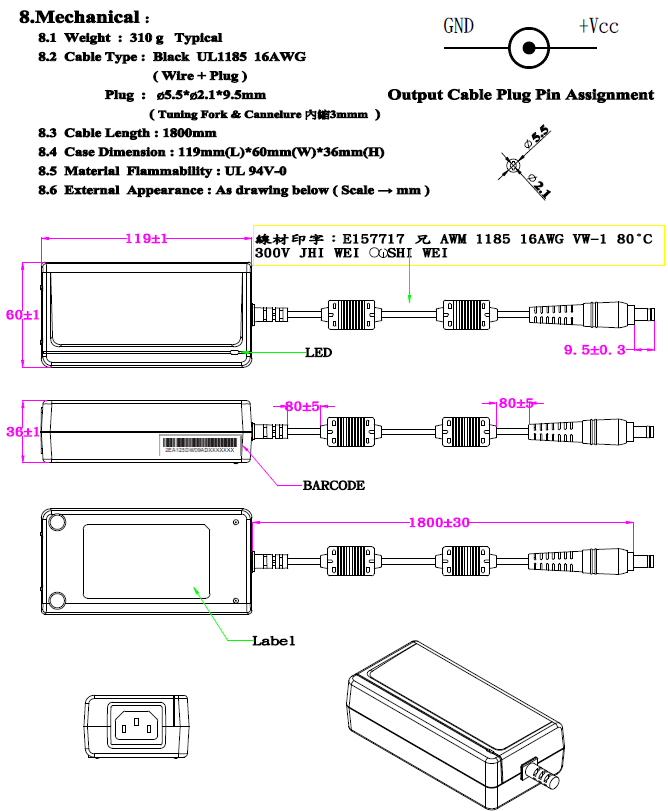

Zeichnungen


Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
