Wo finde ich Informationen zum E181106, Netzteil für den 1502LM Medizinmonitor?

Dieser Artikel bietet weitere Informationen zu Elo P/N: E181106, Netzteil für den 1502LM

Nachfolgend finden Sie Informationen zu Elo P/N: E181106, 60W Netzteil für ET1502LM medizinischen Monitor.

Teilenummer & Beschreibung

  • E181106: Elo-Pwr-Adapt-1502LM-60W
  • Elo Power Brick Kit - 60W Adapter nur, 02LM-Serie medizinischer Monitor

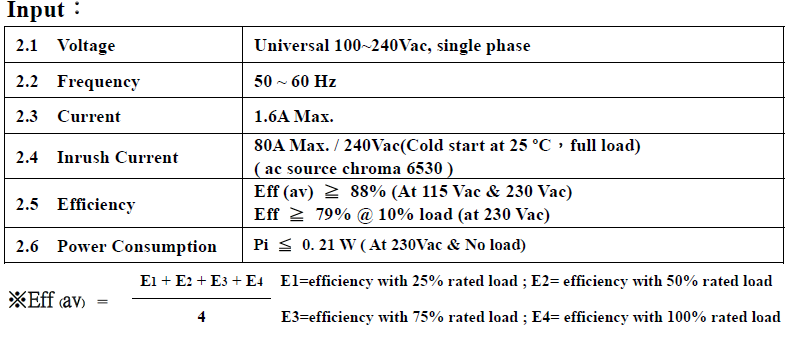

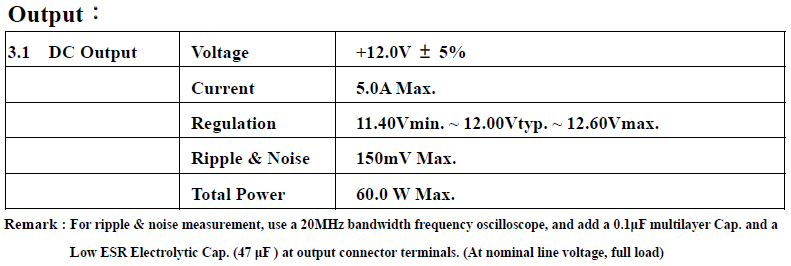

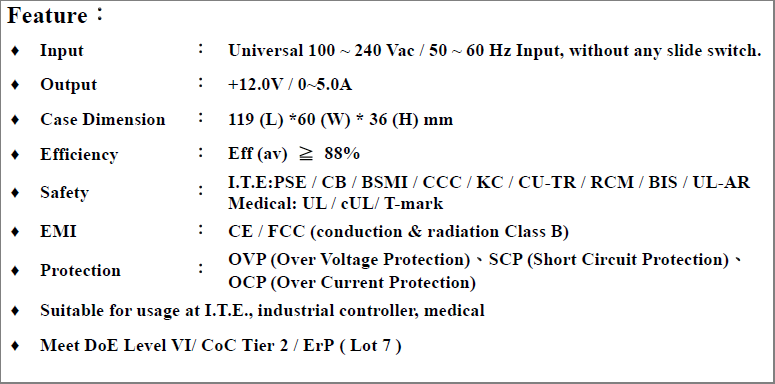

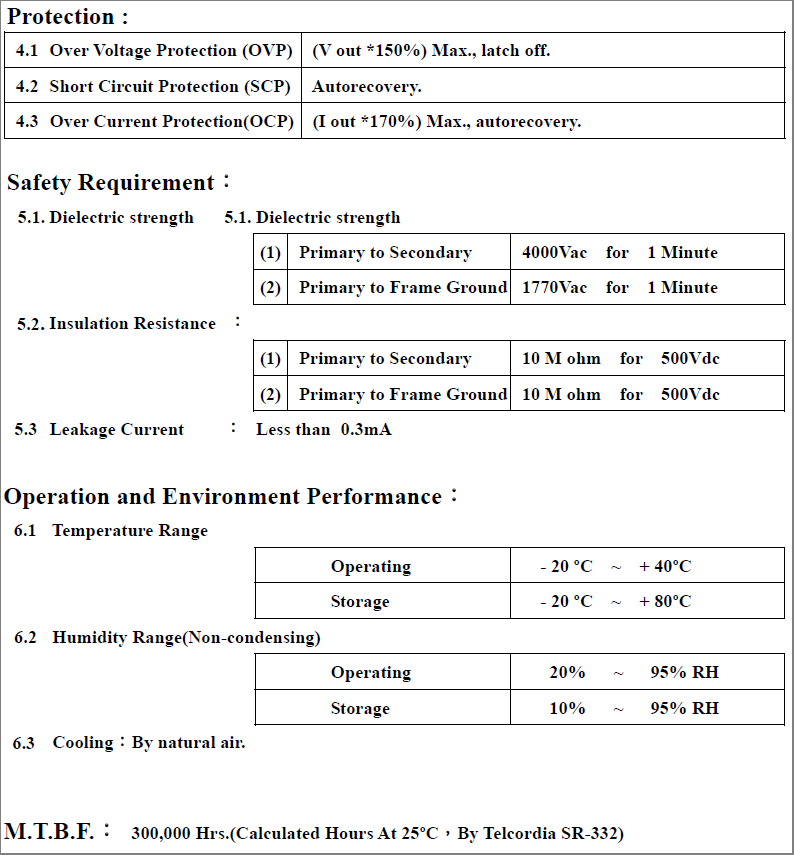

Spezifikationen

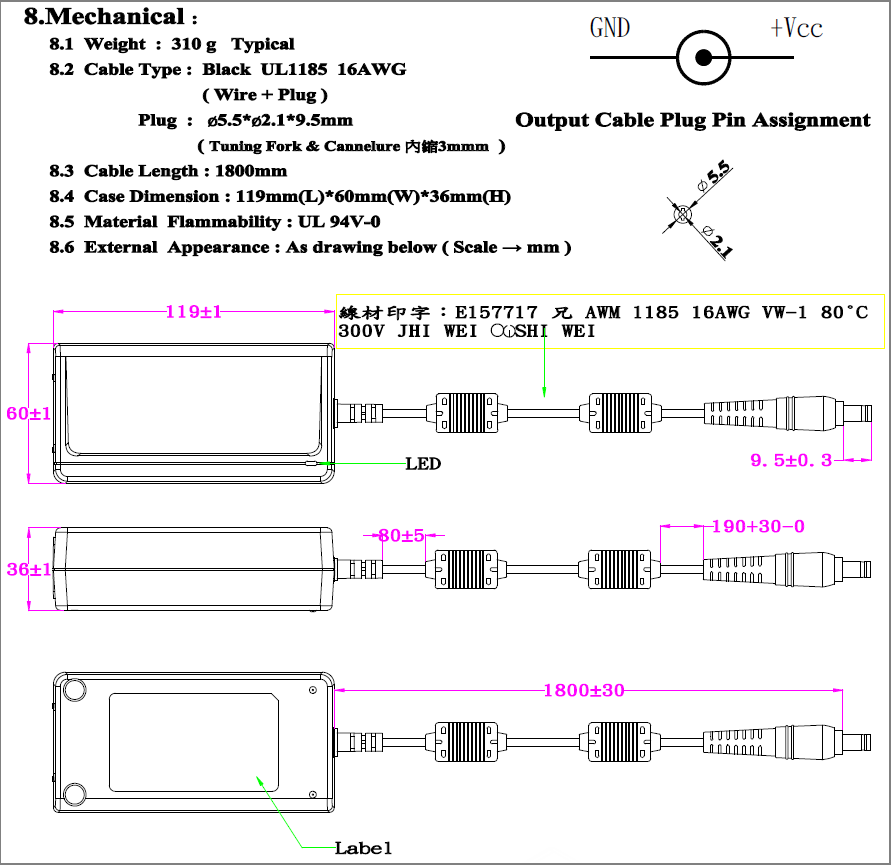

Zeichnung

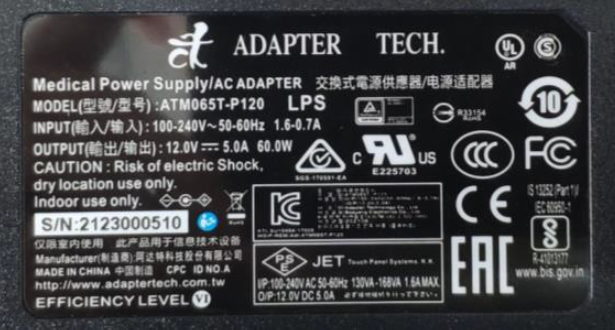

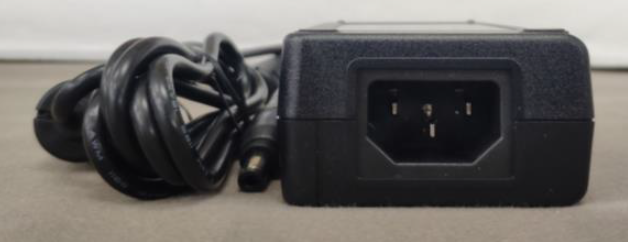

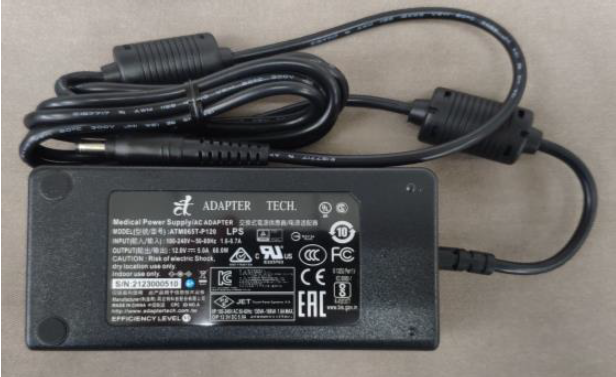

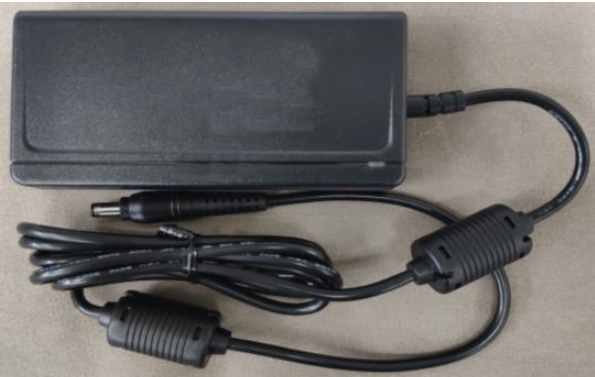

Fotos
