Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich Informationen über E395340, Power Brick Kit für 15E2 AIO (veraltet)?

Dieser Artikel bietet weitere Informationen zu Elo P/N: E395340, Power Brick Kit für 15E2 AIO

Nachfolgend finden Sie Informationen zum Power Brick Kit P/N: E395340 für das 15E2 AIO System.
Dieses Power Brick Kit verwendet den Power Brick P/N: E001429. Dieses Bauteil ist jetzt veraltet und nicht mehr erhältlich.

Technische Daten

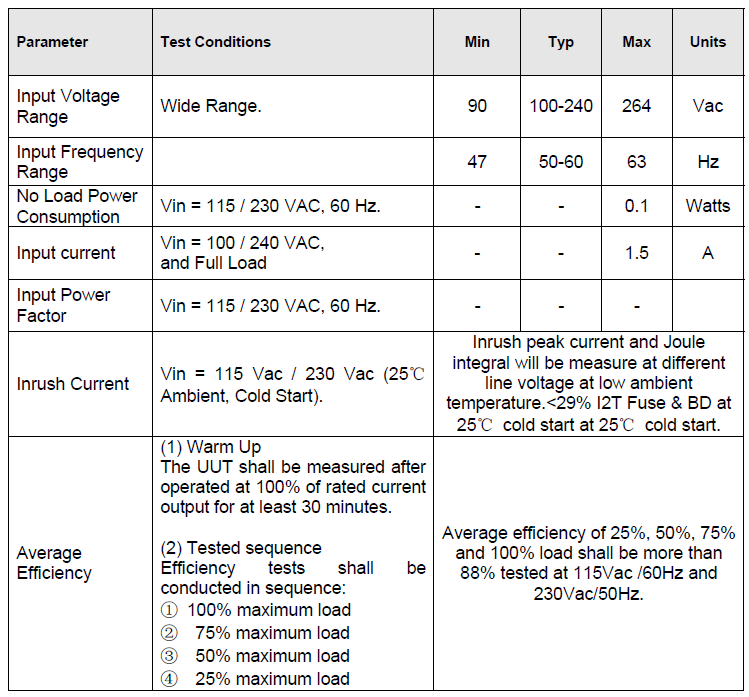

  • Eingang

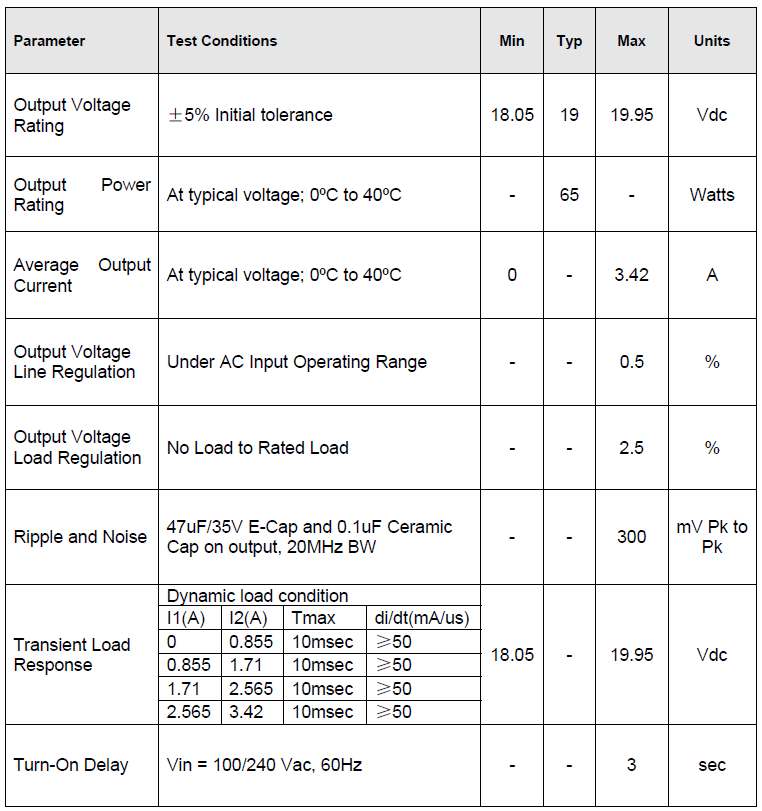

  • Ausgang

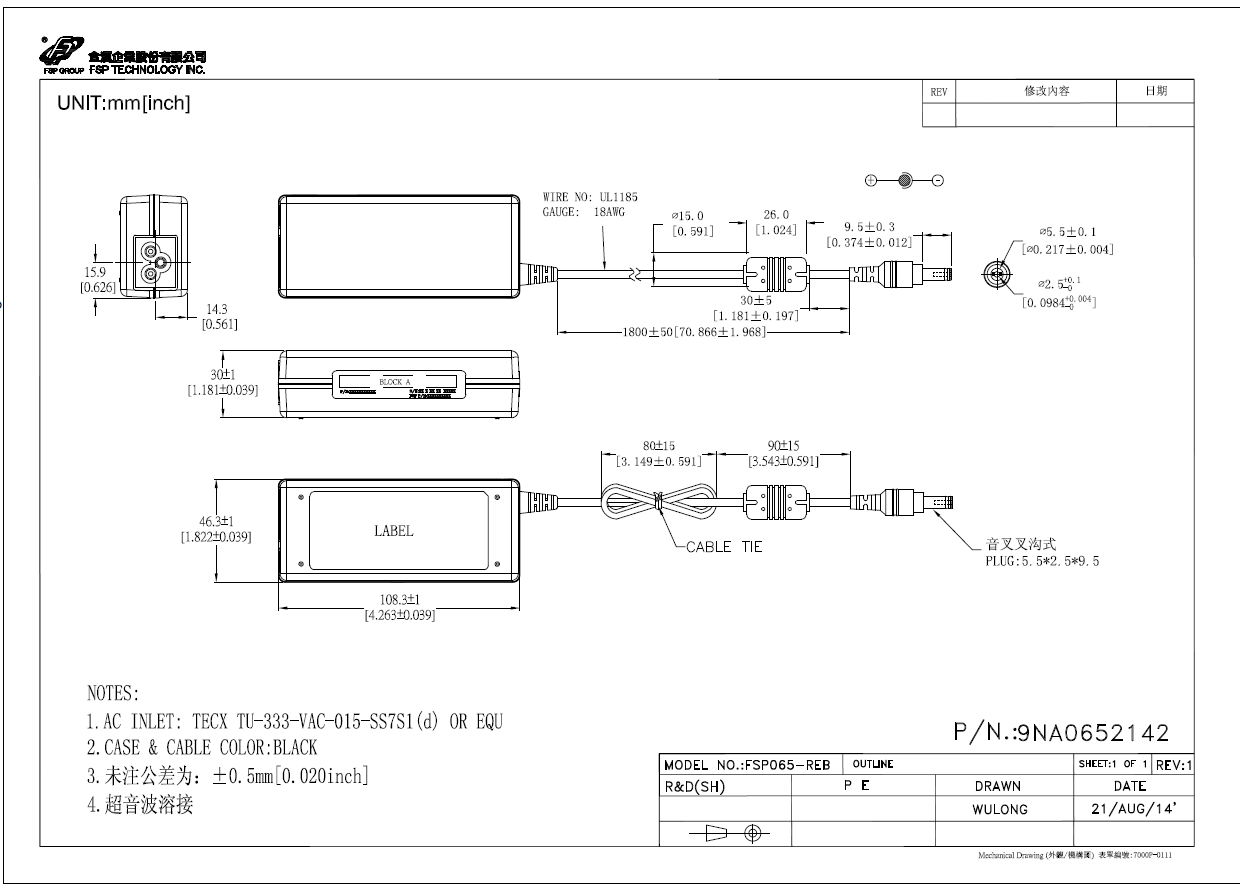

  • Zeichnung
