Willkommen beim Elo-Support

Treiber, Produktinformationen, technische Antworten und mehr.

Wo finde ich Informationen zum Netzteil für den Elo 1509L-8 Monitor?

Dieser Artikel enthält Informationen zum Netzadapter, der für den älteren Elo ET1509L-8UWA-0-G Touchscreen-Monitor verwendet wird.

Technische Informationen:

  • Netzadapter Teilenummer: E318531
  • Teilebeschreibung: ELO-PWR-BRICK, 18Watt, Wandmontage-Netzadapter (einschließlich Wandstecker für US/JP/TW, Brasilien, EU, UK, KR, ARG, IND und CH gesteckte Stecker)
  • Kompatibilität: ET1509L-8UWA-0-G, P/N: E534869 (veraltet)

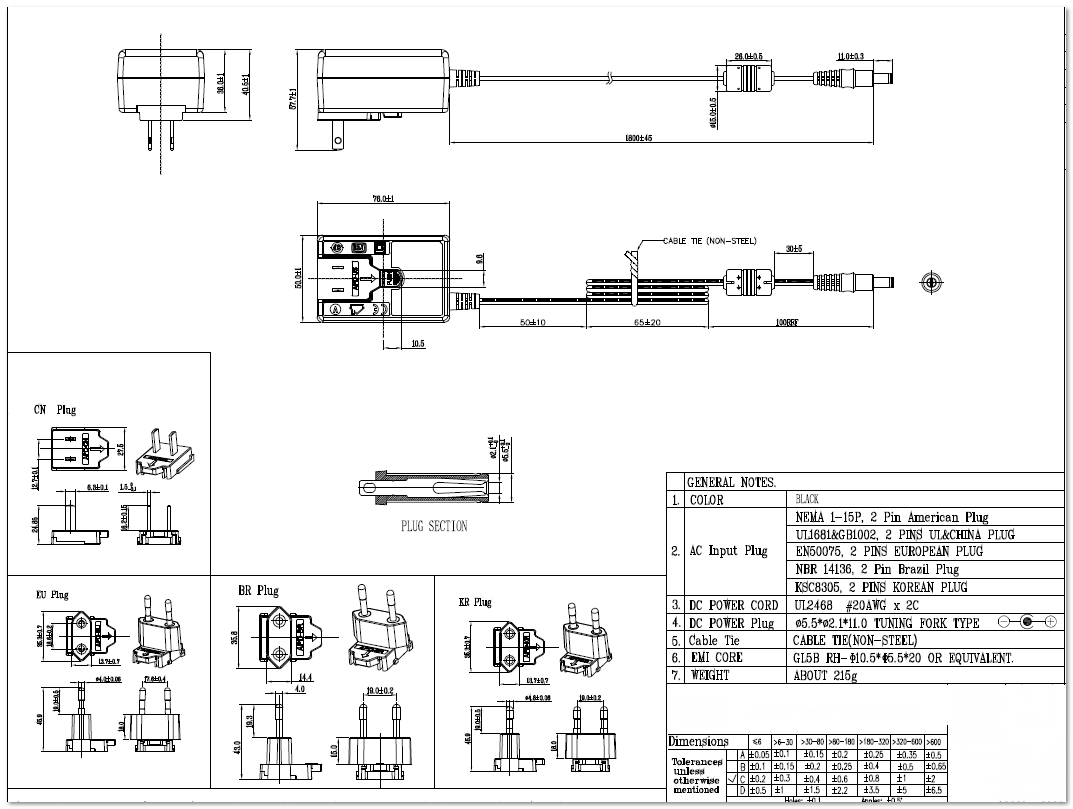

Zeichnung:
