This article provides the procedure to remove and install the CMOS battery on an Elo Android I-Series 2.0 AiO
Please see the procedure below for information on how to remove and install the CMOS battery on an Elo Android I-Series 2.0 AiO
The following hardware that is needed:
• Elo I-Series 2.0 Android Device
• #1 Phillips Screwdriver
• Small flat blade screwdriver
• Replacement CMOS battery (+3V Lithium Coin type CR2032)
1. Place the Elo I-Series 2.0 Device face down on a protective work surface.
b. Remove the 4 outer USB covers.

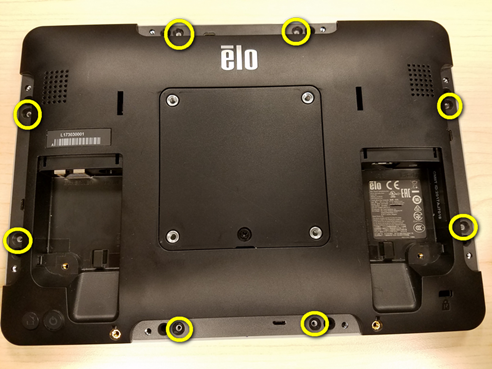

c. Remove the 8 Philipps head screws that were underneath the USB covers.

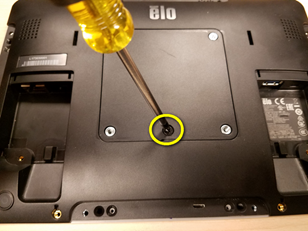

2. Remove the center cover screw and lift off center cover.

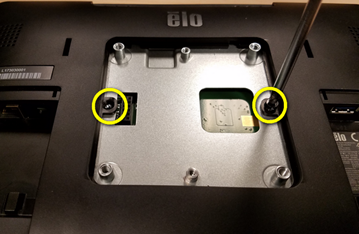

3. Remove the two Phillips screws.

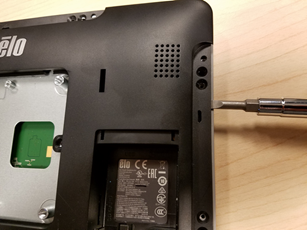

4. Using the flat blade screwdriver, gently pry between the seam of the monitor to separate.

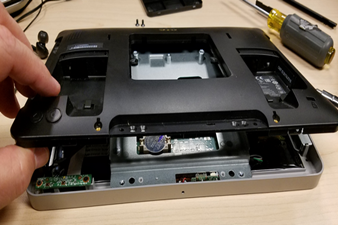

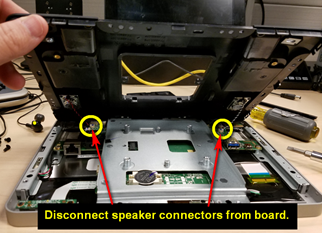

5. As you lift back cover, notice the speaker wires that are connected to the board. These must be disconnected to completely remove back cover.
6. Use flat blade screwdriver to lift CMOS battery up out of retainer.

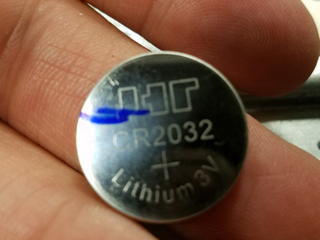

7. Replace CMOS battery with a +3V Lithium Coin type CR2032 battery.
8. Reassemble unit by following steps in reverse.
9. You may need to adjust system time after starting up.
