Where can I find the 3203L dimensional drawing?

This article provides a pdf of the 3203L dimensional drawing

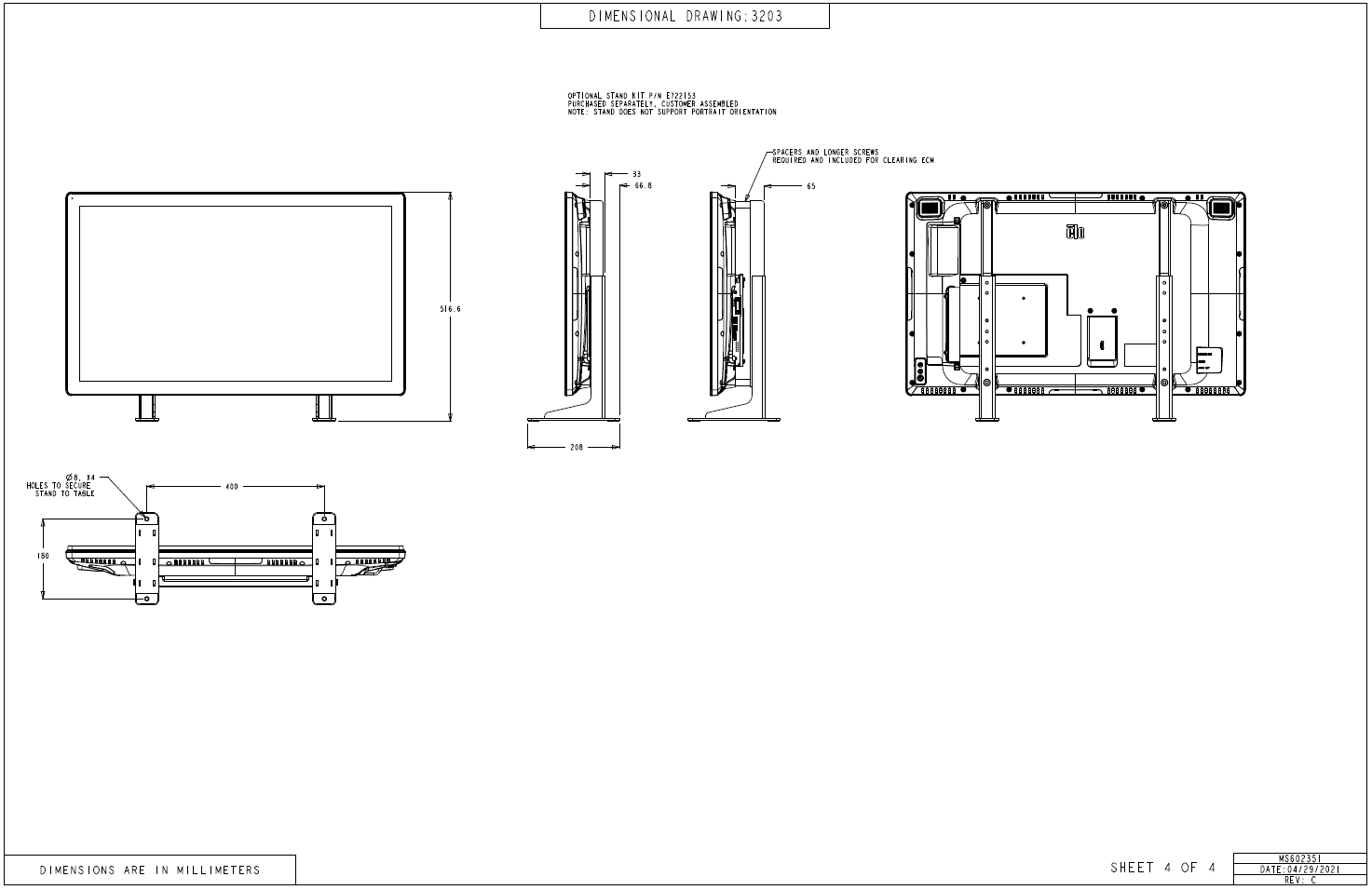

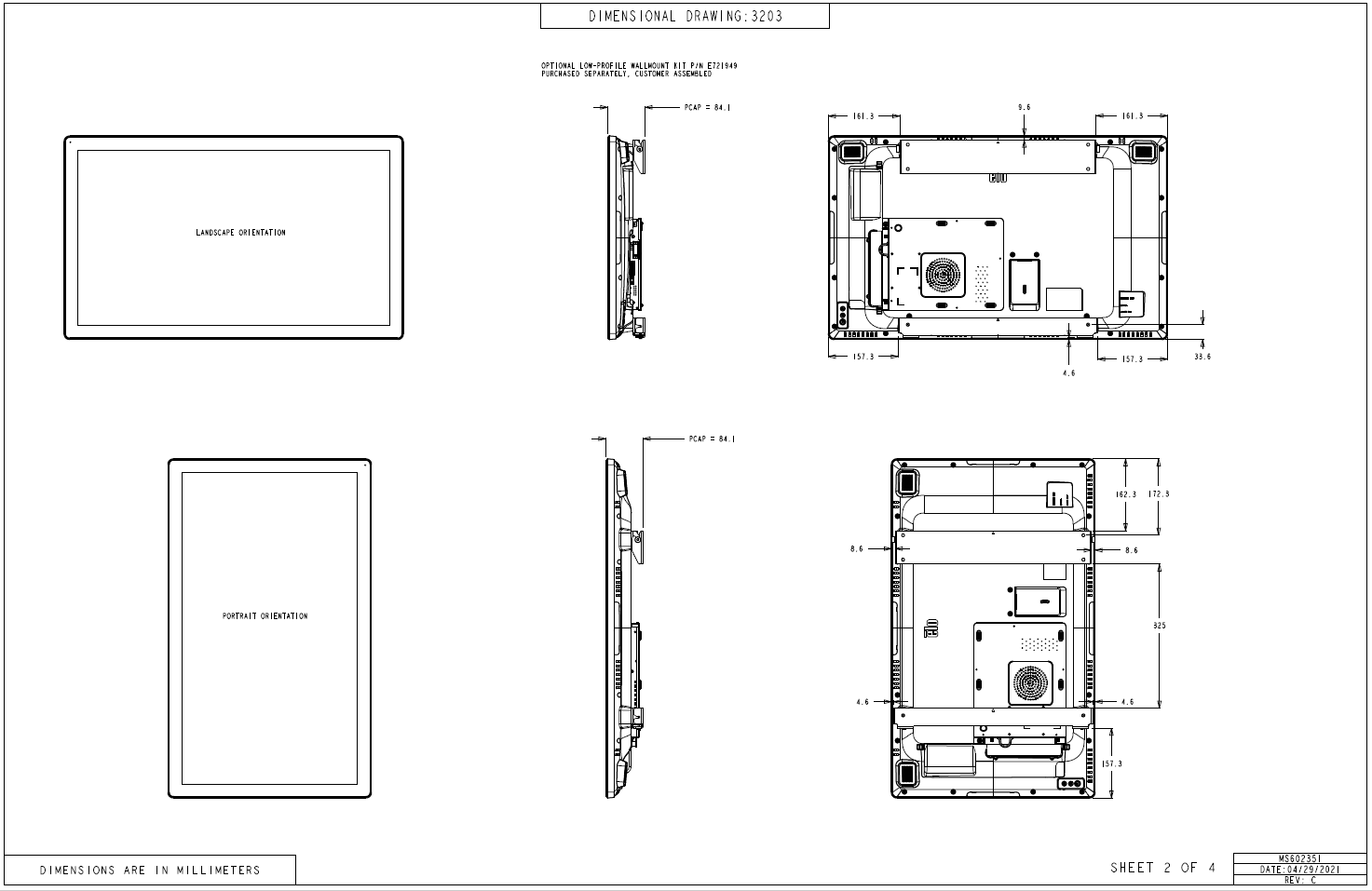

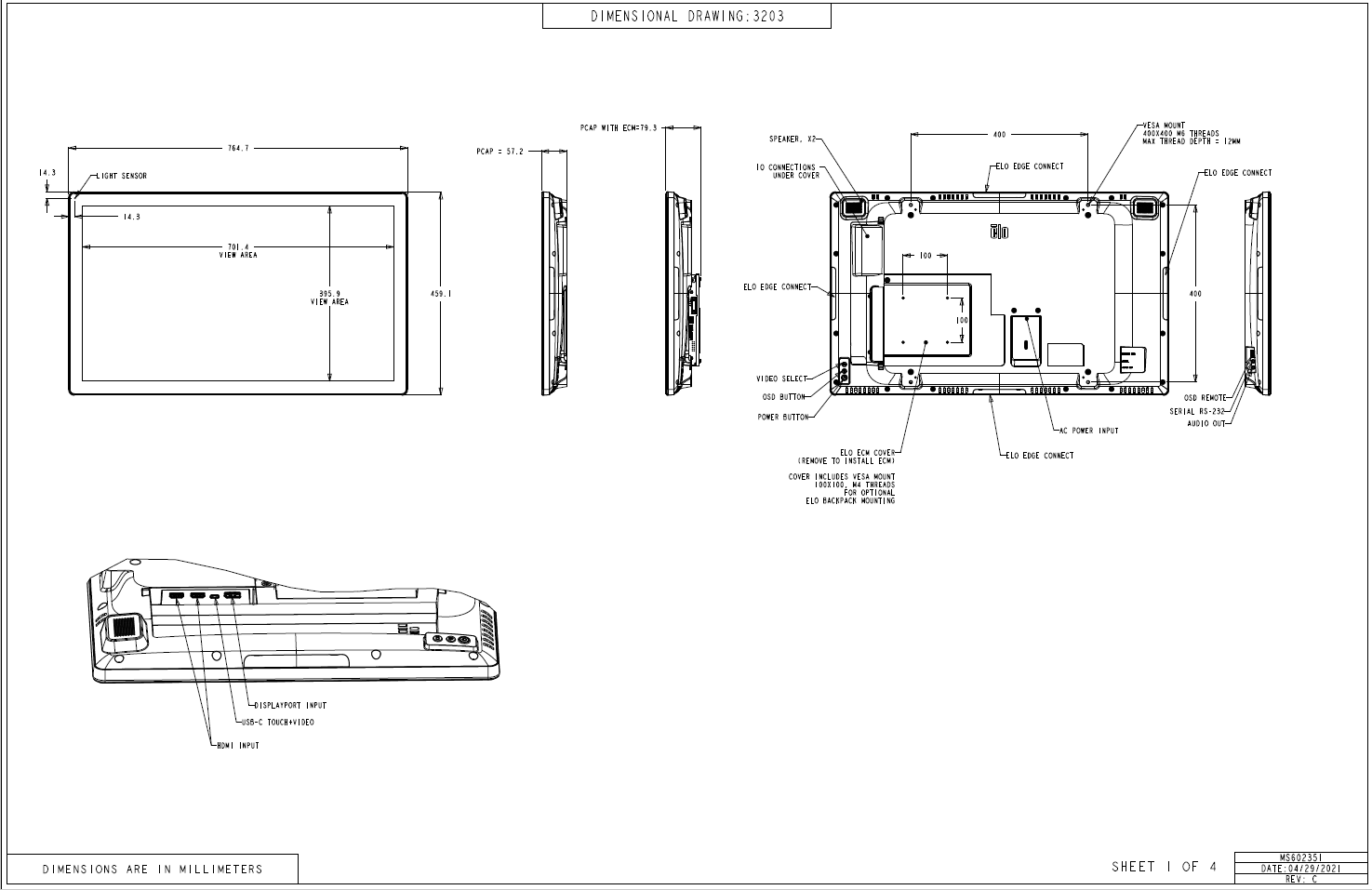

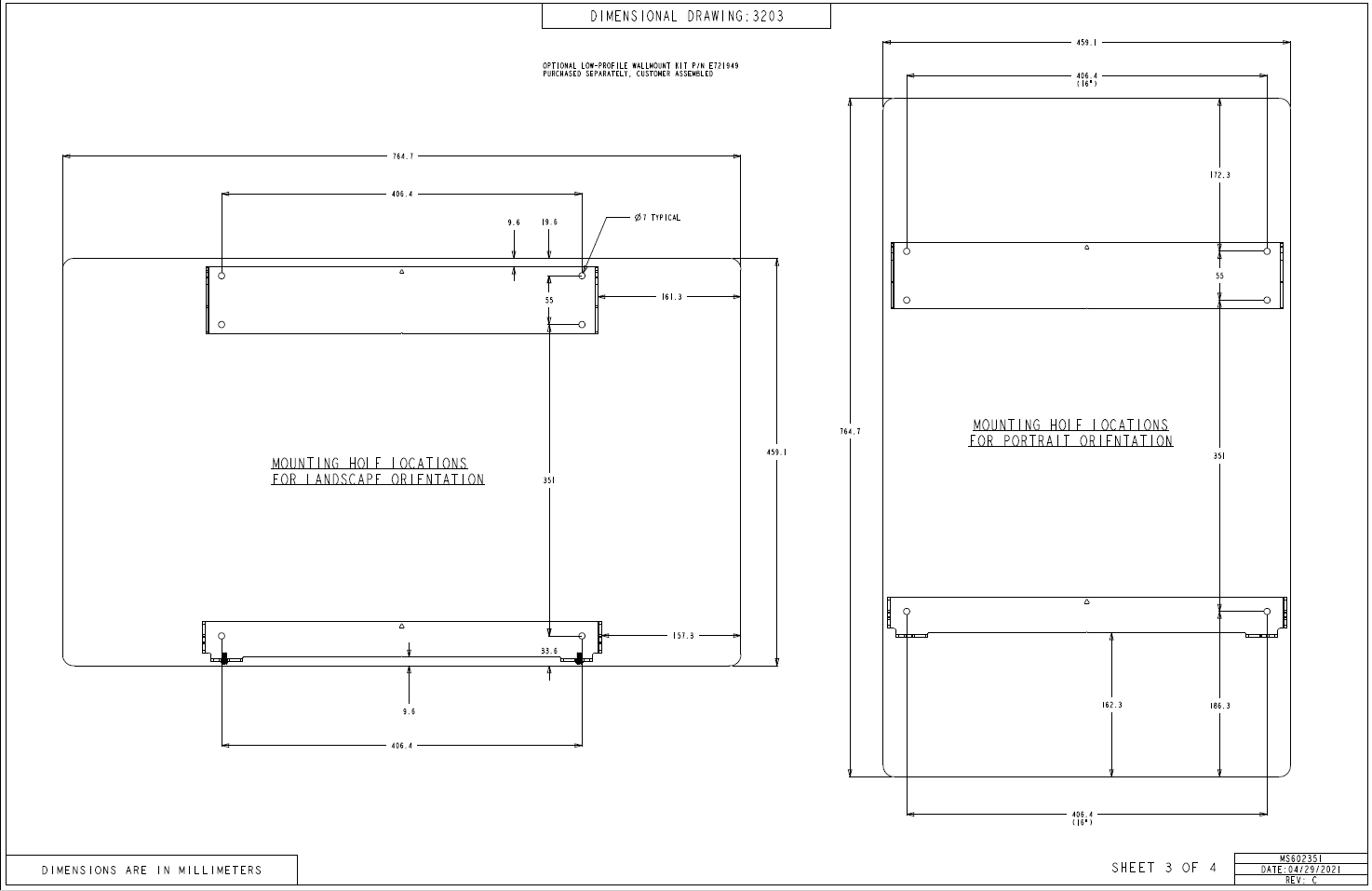

See below for 3203L dimensional drawing. You can also download a .pdf copy attached to this article.



Please report any broken links by emailing elo.support@zebra.com and include a link to the knowledge article
