This article shows how to install the flush mount brackets on the 63-Series Open Frame Monitors (3263L, 4363L)

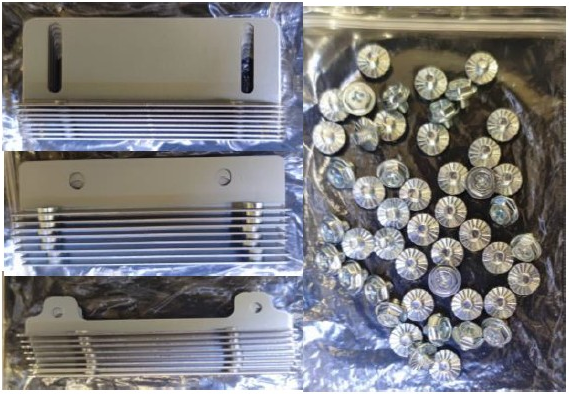

Monitors include 8 sets Flushmount Brackets 48 pcs Screws
- Replacement bracket kits can be purchased separately

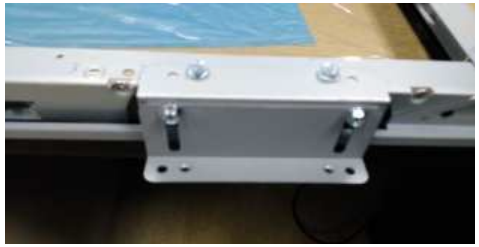

Example of assembled brackets on monitor:

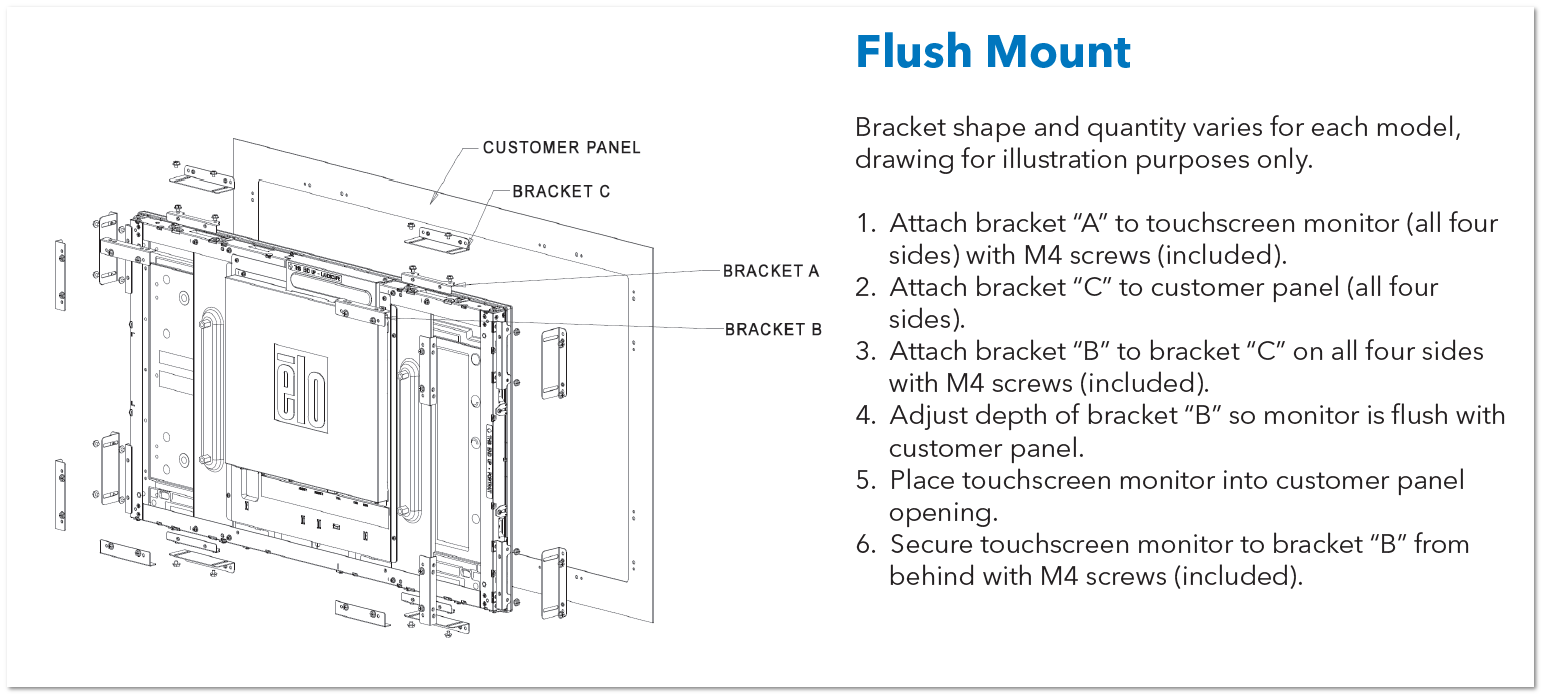

From the QIG

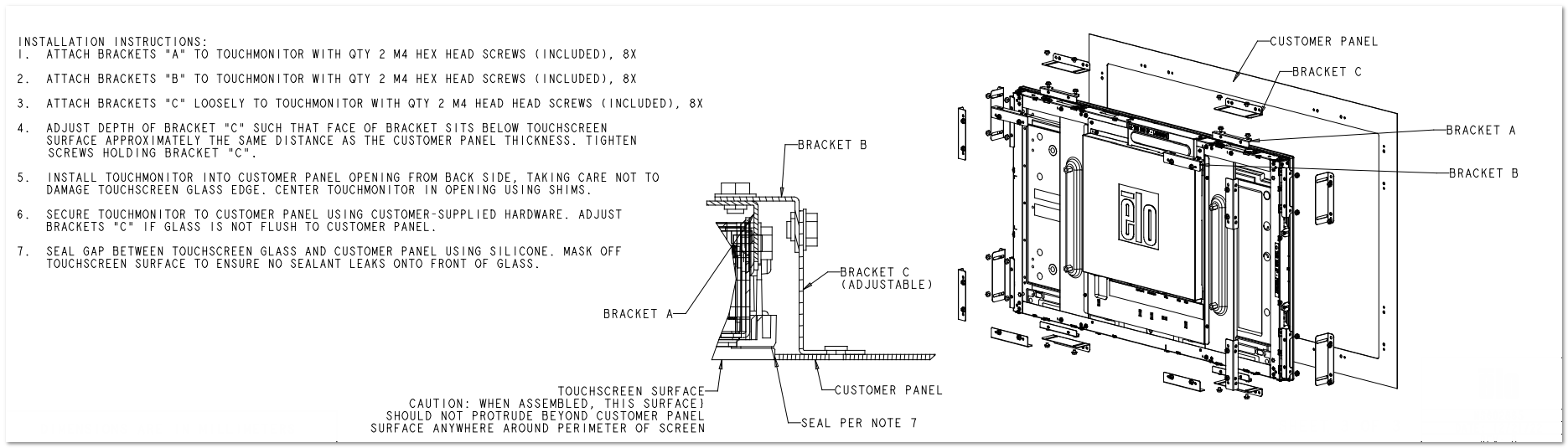

From the Dimensional Drawing 3263L:

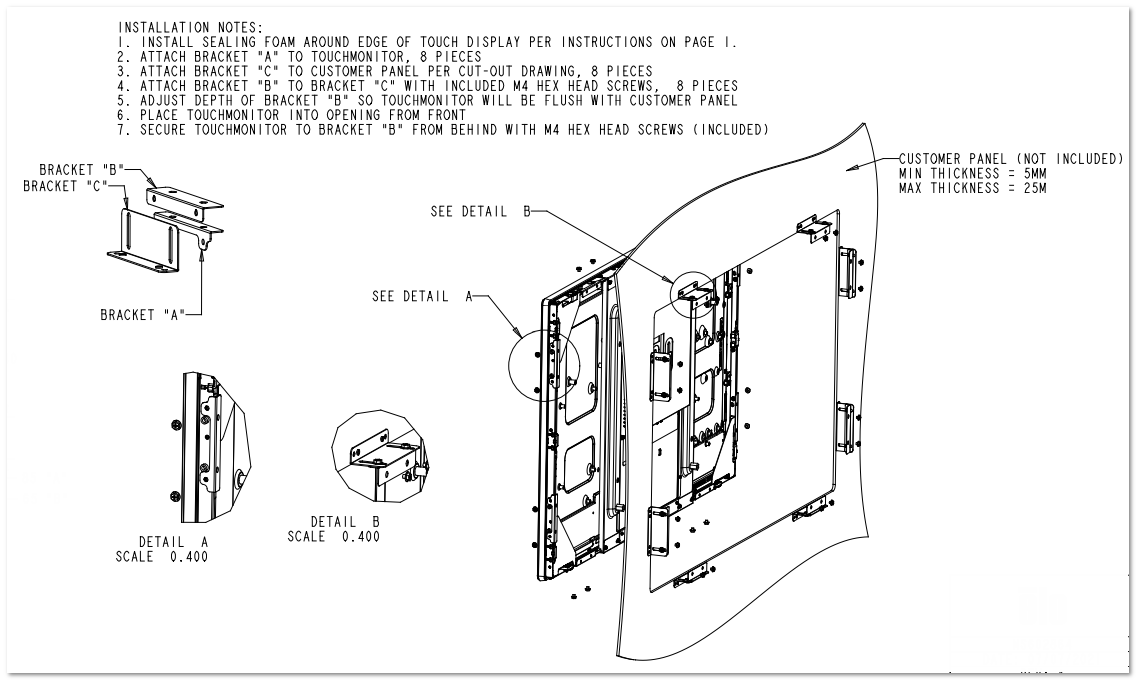

From the Dimensional Drawing 4363L:
