This article provides the serial protocol and pin-out for the rs232 TRS jack for the Elo 5553L monitor

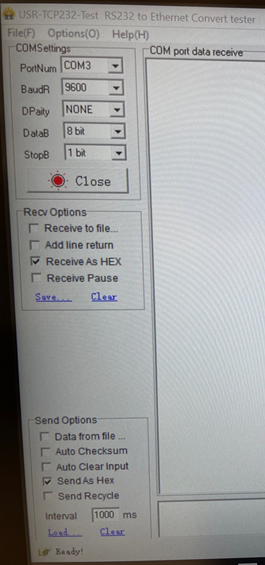

The RS232 serial protocol used on the Elo 5553L/6553L IDS monitors is given below.
- BUAD Rate = 9600
- Parity = NONE
- Data Bits = 8
- Stop Bits = 1

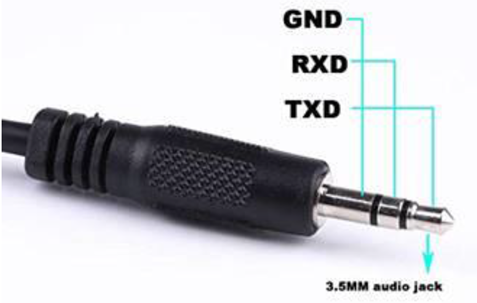

The Pin-Out and diagram of the 3.5mm TRS jack for Serial RS232 is shown below.
