This article addresses IP rating and ingress protection for Elo products.

All Elo products have some degree of ingress protection (IP) and are sealed against dirt, dust and liquids.

Most PCAP monitors have touch-through capabilities and therefore can be integrated into a solution and be sealed to obtain an IP65 rating on the front side of the unit. For more information on how this is accomplished, please see our Knowledge Article, "Sealing PCAP Screens for IP Protection." Also refer to the PCAP Integration Guide for integration help.

Elo monitors with AccuTouch 5-Wire Resistive technology can be sealed against contamination to support NEMA 4/4x/12 and IP65 standards. Please refer to the AccuTouch Integration Guide for more information.

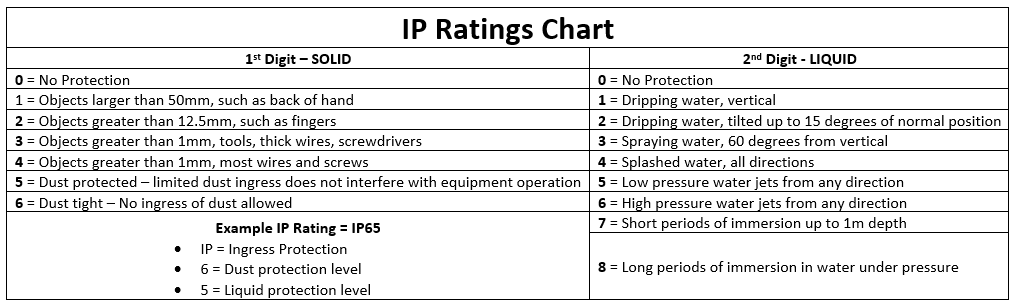

• For further study on IP ratings, please refer to the Wiki article, "IP Code."

Currently, Elo does not offer any off-the-shelf NEMA-4 Rated products. For additional information, please see our Knowledge Article, "NEMA 4 Enclosures."

Below is a list of current Elo products and their provided ratings.

Monitors

• 0702L - IP54 / IP65
• 1002L - IPX1 for front side
• 1302L - IPX1 for front side
• 1502L - IPX1 for front side
• 1515L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1517L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1523L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1715L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1717L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1723L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1902L - IPX1 - Front only
• 1903LM - IP54 entire enclosure
• 1915L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2002L - IPX1 for front side
• 2202L - IPX1 - Front only
• 2203LM - IP54 entire enclosure
• 2201L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2402L - IPX1 - Front only
• 2403LM - IP54 entire enclosure
• 2702L - IPX1 - Front only
• 2703LM - IP54 entire enclosure

Open Frame Monitors

• 1093L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1291L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1590L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1593L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1598L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1790L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1990L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 1991L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2094L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2294L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2295L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2494L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2495L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2794L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 2796L - IPX1 - Front only, Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 3243L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 4243L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 4343L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD
• 5543L - Sealability - Touchscreen sealed to bezel; Touchscreen sealed to LCD

IDS Digital Signage Monitors

• 3203L - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 4303L - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 5053L - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 5503L - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 5553L - N/A
• 6553L - N/A

Touchscreen Computers

• M50 Mobile Computer - Sealability - IP65 per IEC standard 60529
• 10-inch i-series 2.0  - Sealability - Touchscreen sealed to LCD
• 10-inch i-series 3.0  - Sealability - Touchscreen sealed to LCD
• 10-inch i-series 4.0  - Sealability - Touchscreen sealed to LCD
• 15E2 E-Series - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 15-inch (4:3) EloPOS - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 15-inch (16:9) EloPOS - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 15-inch i-series 2.0  - Sealability - Touchscreen sealed to LCD
• 15-inch i-series 3.0  - Sealability - Touchscreen sealed to LCD
• 15-inch i-series 4.0  - Sealability - Touchscreen sealed to LCD
• 15-inch i-series 2.0 w/ Windows - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 17-inch (5:4) EloPOS - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 22-inch EloPOS - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• 22-inch i-series 2.0  - Sealability - Touchscreen sealed to LCD
• 22-inch i-series 3.0  - Sealability - Touchscreen sealed to LCD
• 22-inch i-series 4.0  - Sealability - Touchscreen sealed to LCD
• 22-inch i-series 2.0 w/ Windows - Sealability - Touchscreen sealed to sub-bezel, Touchscreen sealed to LCD
• PayPoint Plus for Android - Sealability - Touchscreen sealed to LCD
• PayPoint Plus for Windows - Sealability - Touchscreen sealed to LCD
• PayPoint for Android (Rev B) - Sealability - Touchscreen sealed to LCD
• PayPoint Plus for Anderod (3.0) - Sealability - Touchscreen sealed to LCD
• PayPoint for Android (3.0) - Sealability - Touchscreen sealed to LCD
