What are the 63-Series Mounting Options?

This article explains what the mounting options are for the 63-Series Open Frame Monitors

General Mounting Information

The OSD text can be rotated between portrait and landscape mode through the OSD menu to better suit your mounting orientation.

Portrait and Landscape Mode

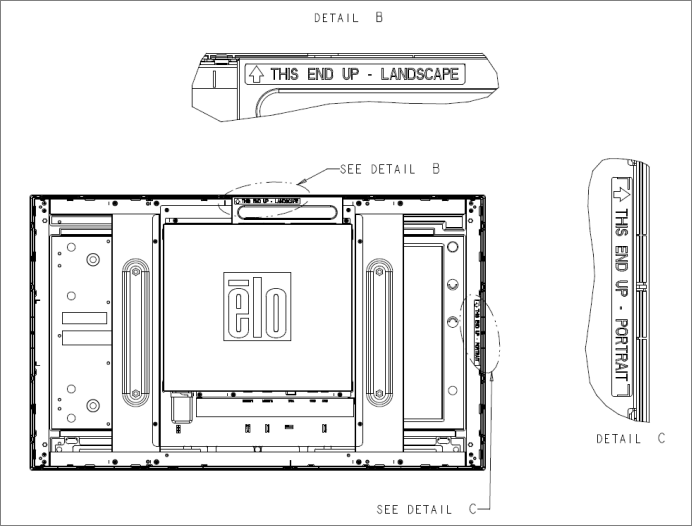

The monitor can only be installed in portrait or landscape mode following the below diagram. The THIS END UP sticker will point up.

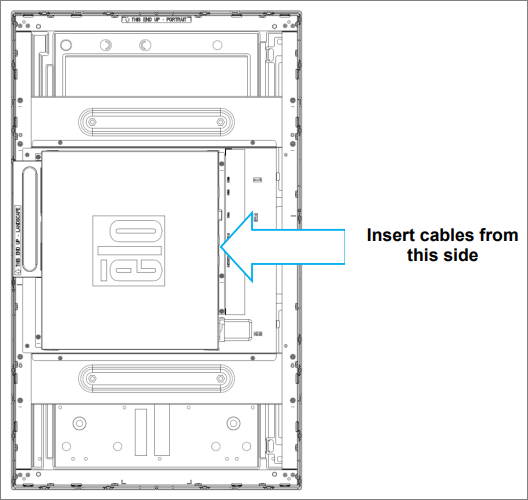

Portrait mode can only be installed in the 90 degrees orientation such that the Elo logo on the back is rotated to the left and the cables are connected from the right side, as the following image shows.

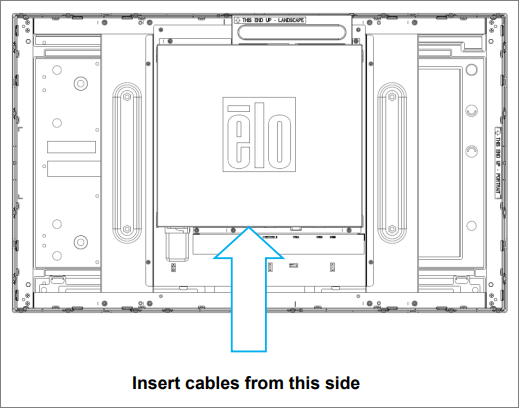

Landscape mode can only be installed at 0 degrees such that the Elo logo is on the back is not rotated and the cables are connected from the bottom, as the image below shows.

Side Mount

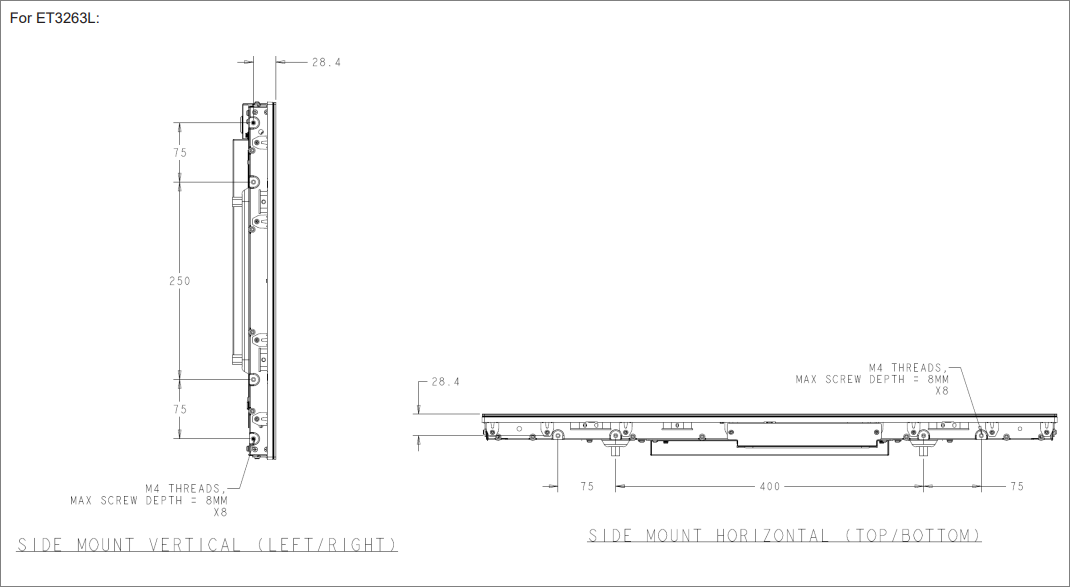

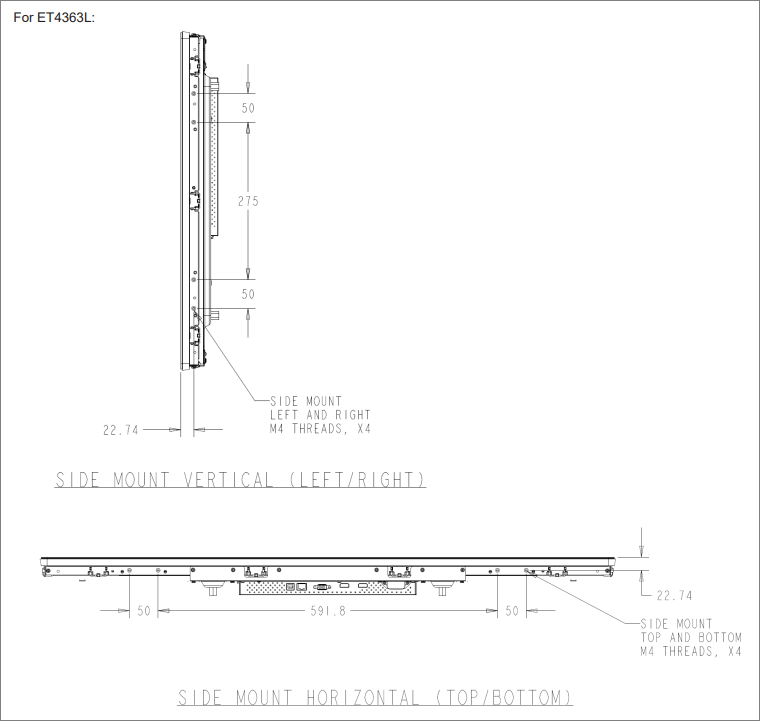

Threaded holes are provided on the sides of the monitor for mounting.

Flush Mount Brackets
Flush mount brackets are box included and in an optional kit for ET3263L/ET4363L.

Rear VESA Mount

For ET3263L:

A four-hole 400x200mm mounting pattern for M6 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-F, 400, 200, 6.

For ET4363L:

A four-hole 400x400mm mounting pattern for M6 screws is provided on the rear of the monitor. The VESA FDMI-compliant counting is coded: VESA MIS-F, 400, 400, 6.

Refer to www.elotouch.com for dimensional drawings.
