This article covers the mounting options for the Backpack 4

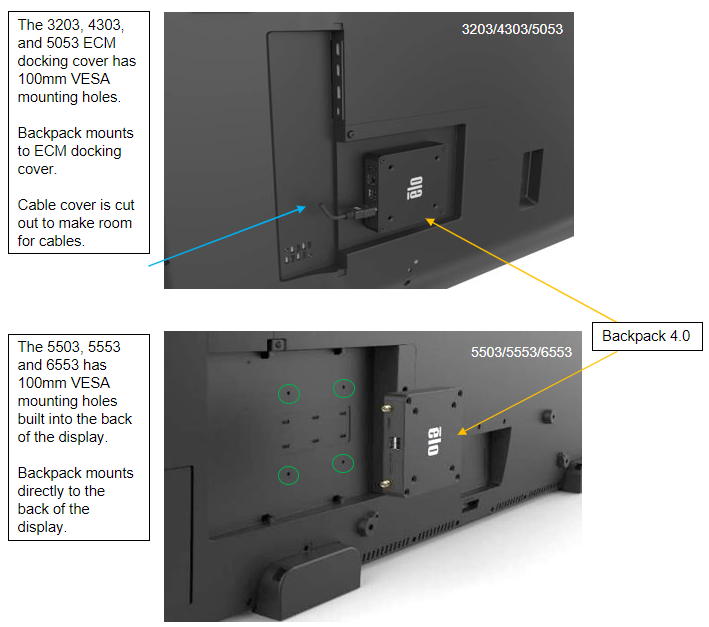

The Elo Backpack 4 was designed to be mounted on an IDS​ monitor

• It features “through-holes” that enable it to be mounted directly to any 100mm or 75mm VESA hole pattern​
• Requires (4) M4x30mm flathead screw (not included)​
• Not designed to mount on the 43 or 63 series open frames​

NOTE: ​

• To fully conceal the Backpack and cables for the 3203, 4303, and 5053, it is recommended to use a USB-C cable as most are short enough to store the excess length under the IDS cable cover. ​
• If using HDMI+USB cables, there may not be enough space to store the excess cable length inside the cover.​
  • In this instance, do not use the cable cover. ​
