This article provides information about the M60 Battery.

Before using the device for the first time fully charge the battery.

Battery Safety Precautions
The battery stores a large amount of energy in small amount of space. Replace the battery with same type only. Improper replacement of battery may cause risk of burns, fire, and explosions. Do not open, crush, bend, puncture, shred, heat above 60˚ C / 140˚ F or incinerate. Risk of fire and burns if improperly handled. Do not short circuit, immerse the battery to liquid, or attempt to insert any foreign object to the battery. Avoid storing under direct sunlight. If there is a serious swelling of the battery, do not continue using. Dispose the battery according to local regulations.

Battery Information / Specification
• Rechargeable Li-ion Polymer Battery
• Nominal Voltage: 3.8Vdc
• Limited Charging Voltage: 4.35Vdc
• Maximum Charging Current: 4A
• Minimum Capacity: 4000mAh 15.2Wh

Battery Un-installation (Elo or qualified service center only)
• Shutdown the system. Refer on power status on this user manual for proper system shutdown.

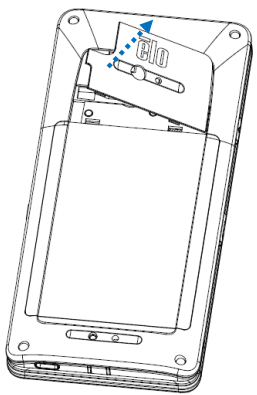

• Remove the top cover access point.

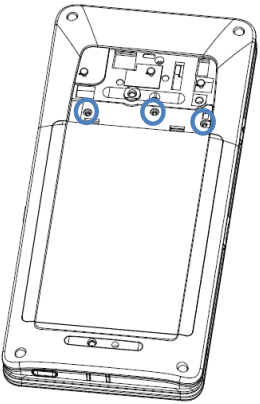

• Remove 3 fastening screws of the battery cover.

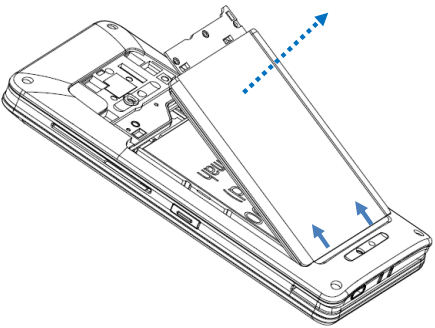

•  Lift-up the battery cover

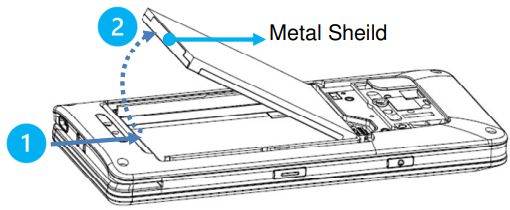

• Push and lift up the metal shield of the battery using your finger.

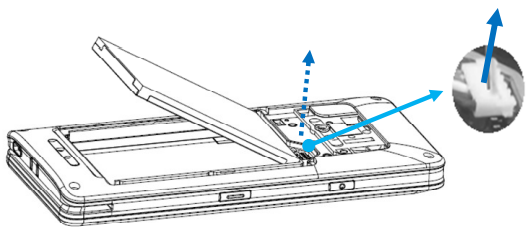

• Disconnect the battery by pulling the Molex connector upwards.




Battery Installation

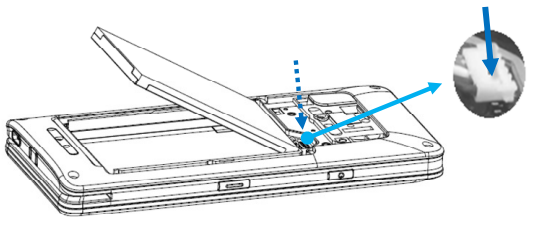

• Connect the battery connector by pushing down.

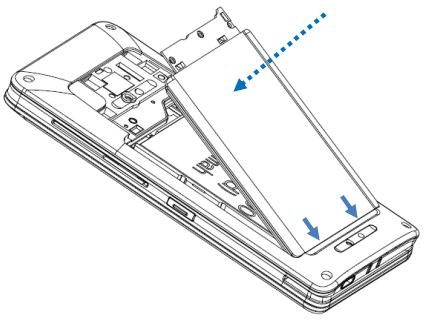

• Insert the battery into the compartment.

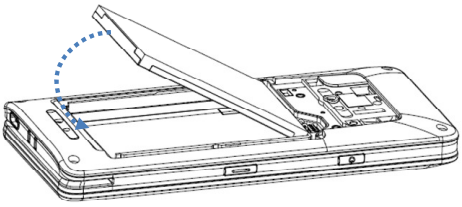

• Place the battery cover and snap into place to secure.

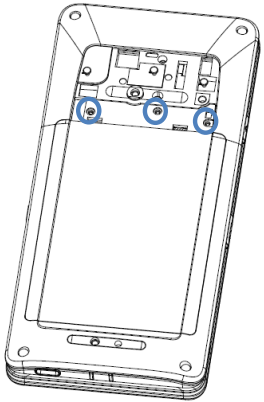

• Fasten the battery cover with 3 screws.

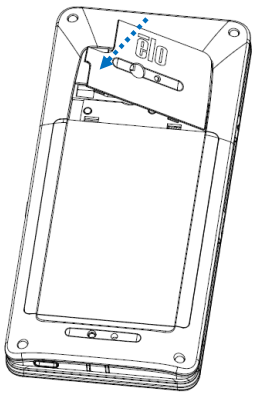

• Place the access point cover and snap into place to secure.
