This article describes how to assemble the HS11 Hand Strap (P/N: E498250) to an Elo M60 Mobile POS Computer.

Prerequisites

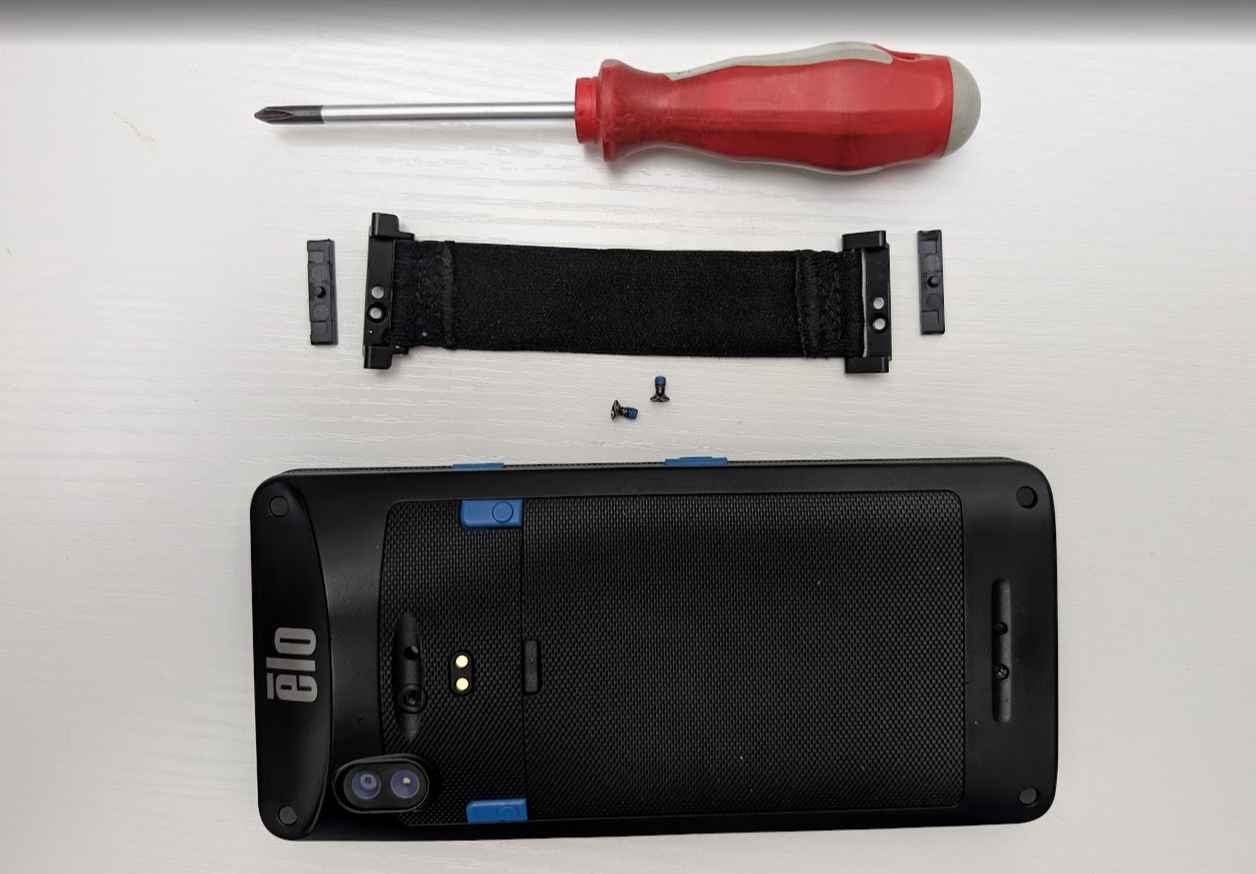

Before assembling the hand strap, ensure you have the following:

• HS11 Hand Strap (P/N: E498250): Product Page
• Elo Pay M60 Mobile POS Computer: Product Page
• Philips screwdriver

A Quick Start Guide is also included in the box and can be seen here.

Assembling the Hand Strap

Follow these steps to install the HS11 Hand Strap on the Elo Pay M60:

1. Place the M60 face down on a soft, protective surface.



2. Align and insert the upper strap pin into the corresponding hole on the back of the M60.

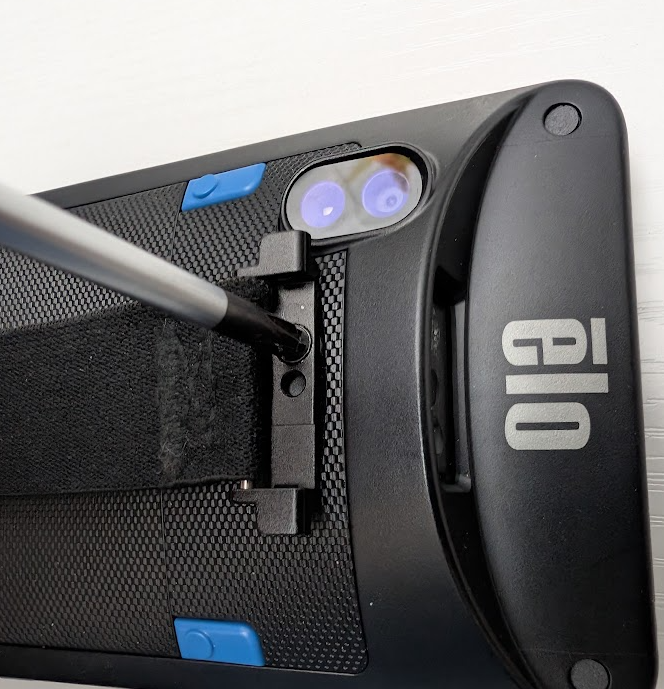

3. Secure the pin by tightening the screw clockwise. Do not overtighten.

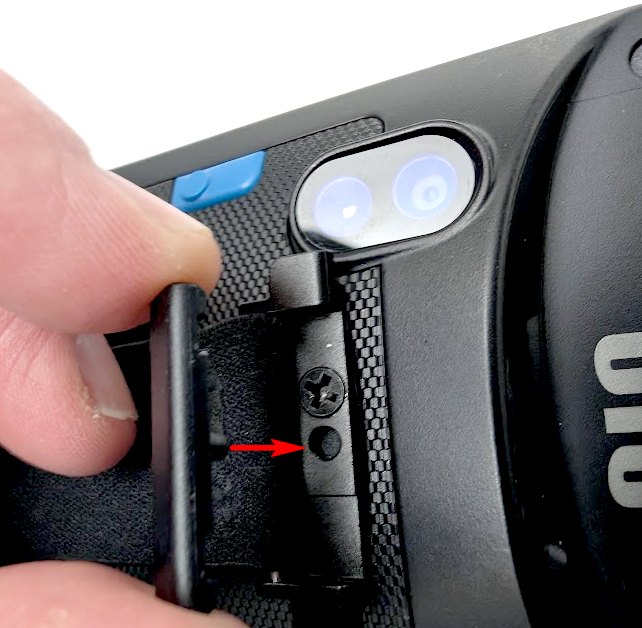

4. Align the strap cover pin with the hole on the hand strap.

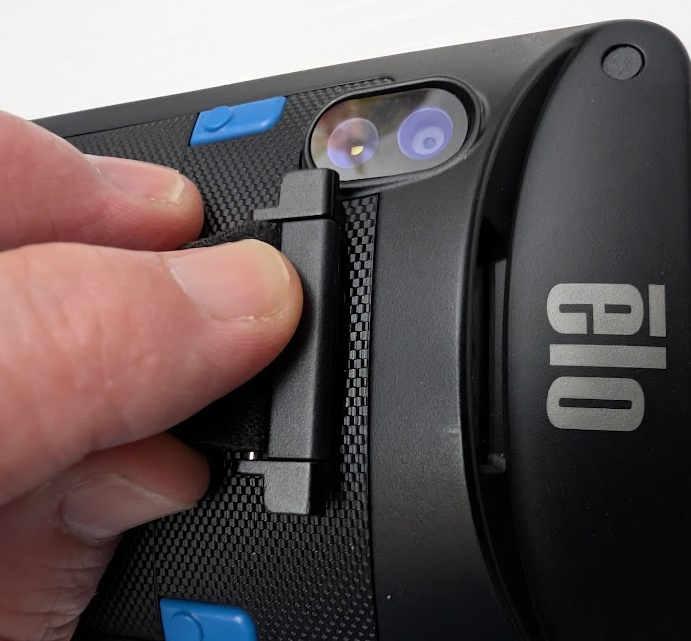

5. Press the strap cover down until it clicks into place.

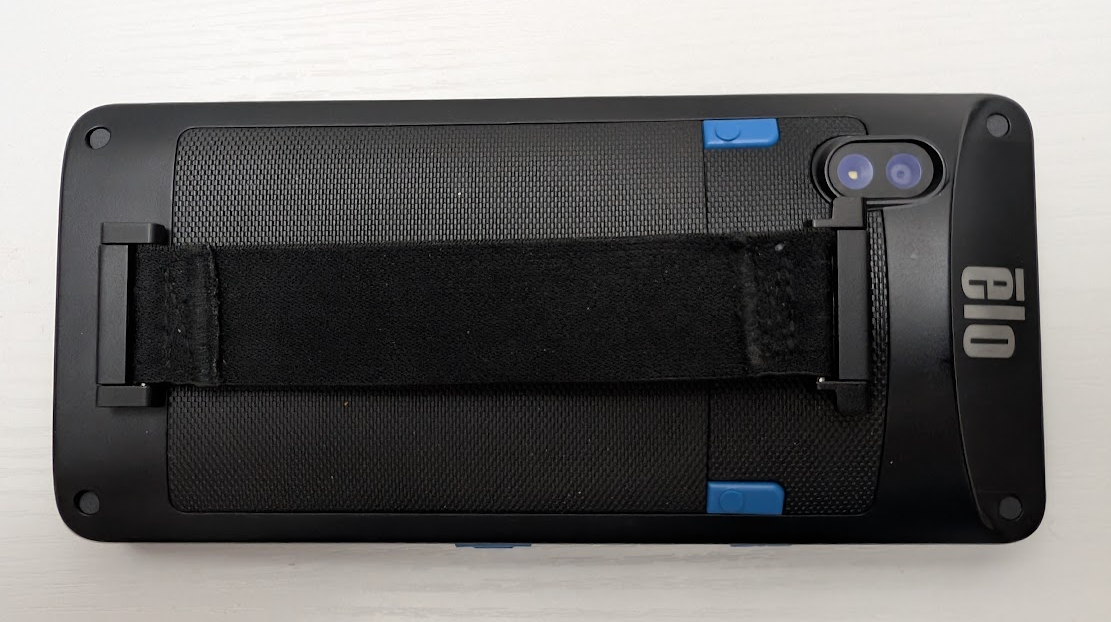

6. Repeat steps 2–5 to attach the lower portion of the strap.
