This article provides instructions on how to remove the battery from the Elo M60 Mobile device

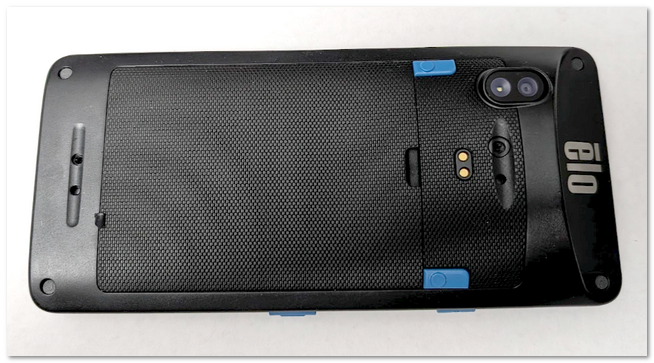

1. Place the M60 face down on a protective surface.

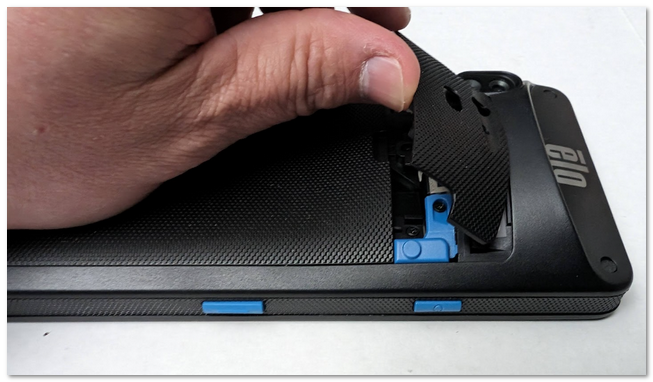

2. Remove the top cover by lifting up at the middle slot, as illustrated in the photo below.

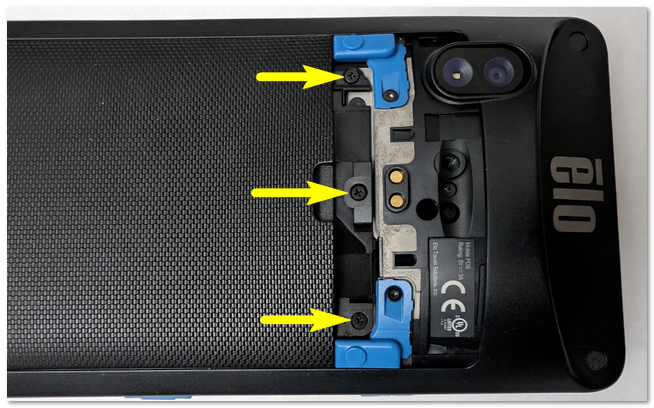

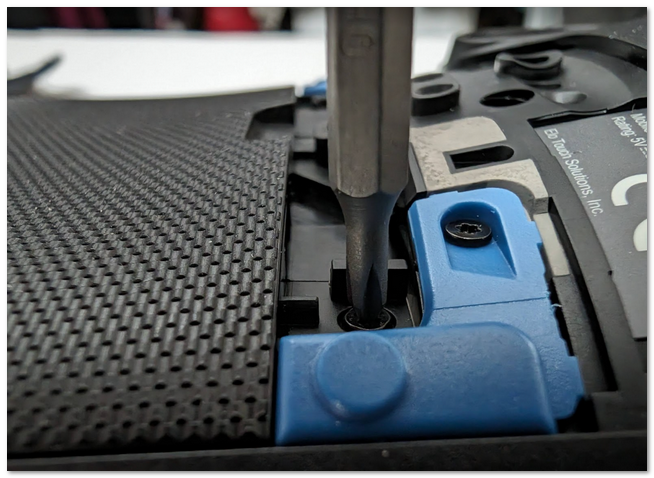

3. Using a Phillips #0 screwdriver, remove the three Metric Flat Pan Head M1.6 x 2.5 screws.

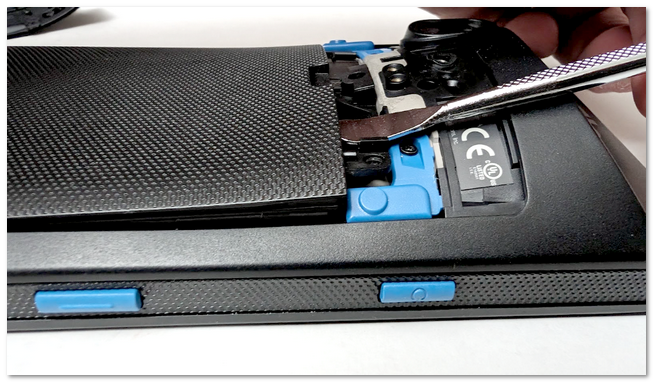

4. Use a prying tool to gently lift the battery cover door and remove it.

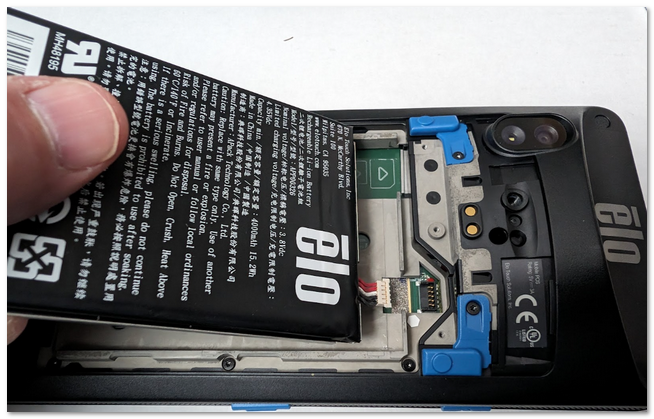

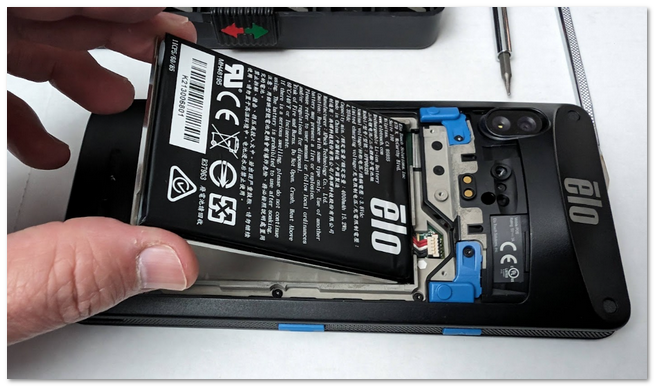

5. Carefully lift the battery, gently pulling up the connector to remove it.
