This article explains where to find a Windows NT v3.1c driver summary

The below is a summary of the Windows NT v3.1c driver.

NOTE: Windows NT is no longer supported by Microsoft or Elo Touch Solutions.

Windows NT v3.1c Driver Summary

Supports: E271-2210, E281-2300, E281-2310 and E281-2500S serial controllers.

Downloadable source file: MMNT310C.EXE (927K)

Installation

• Double-click MMNT310c.exe to unzip the file and install the driver.
• Double-click setup.exe in the EloNT directory to install the driver.
• After reboot, the calibration comes up automatically.
  • The calibration targets appear in the upper left, lower right and upper right corners of a single display; for multiple monitors the target will appear on more than one monitor, depending on the layout, so check all monitors for calibration targets.

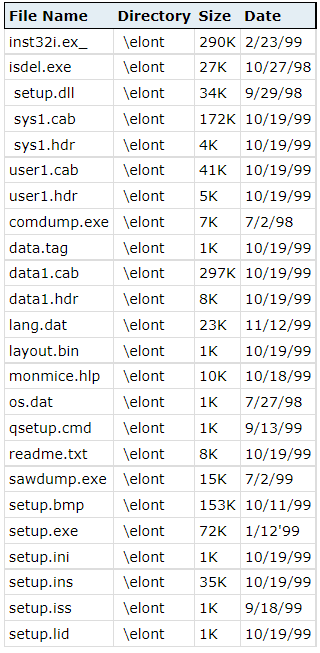

File List

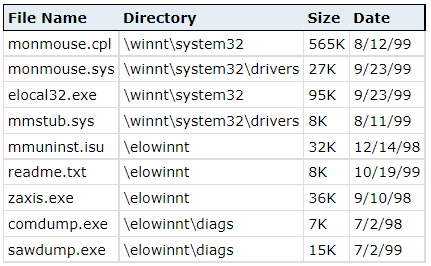

In addition to the files above, the following files can be found on the c: drive after installation from a copy of the driver that has been downloaded from our Web site.



Registry Entries
HKEY_LOCAL_MACHINE
    \System
        \CurrentControlSet
            \Services
                \MonMouse
                    \Enum
                        \Security
                            \Touchscreen0
                                \Parameters

(There can be four instances of Touchscreen - 0 through 3 - for multiple monitor installation).

The following additional keys control the double-click area sensitivity:

HKEY_CURRENT_USER
      \ControlPanel
            \Mouse
                  \DoubleClickHeight
                  \DoubleClickWidth
