This article provide more information about Elo P/N: E000648: ELO-PWR-Adapt-MED,12V,50W,ET2401-R, Power adapter medical grade for ET2401LM

Below is information for Elo P/N: E000648, Power adapter for medical grade ET2401LM.
This part went end of life January 25, 2018 and is no longer available. No replacement was issued due to this line of mointors being discontinued.

Part Number & Description

• E000648: ELO-PWR-Adapt-MED,12V,50W,ET2401-R
• Power adapter medical grade for ET2401LM

Specifications

• Input Voltage: AC110V~AC230V.
• Input Frequency: 60 +/- 3Hz /50 +/-3Hz
• Output Voltage: 12VDC
• Output Wattage: 50W

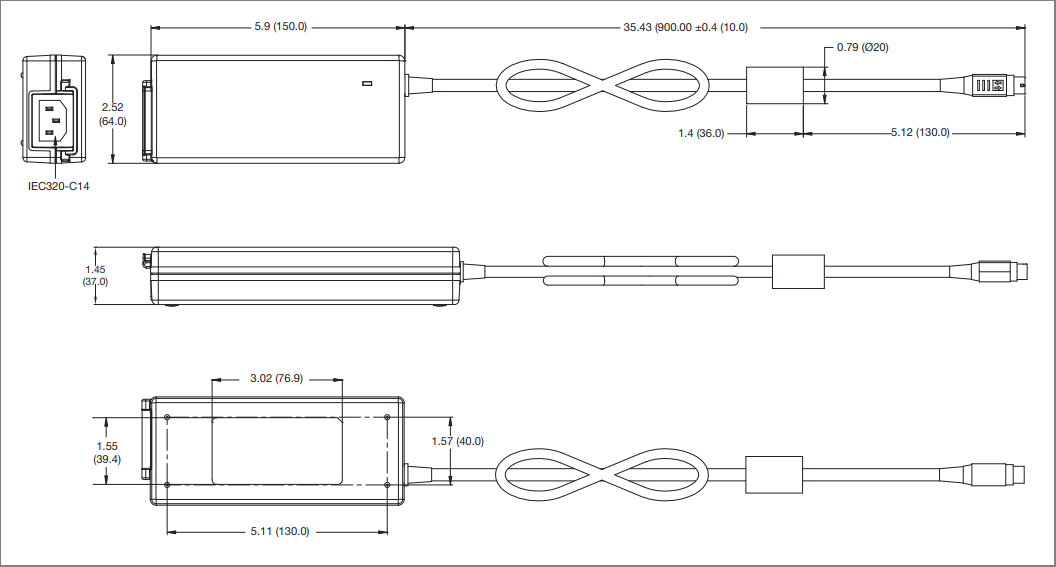

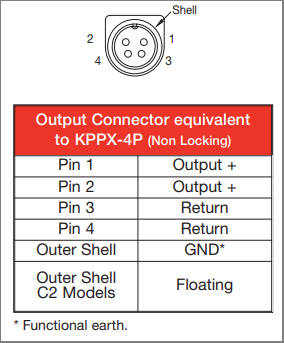

Drawing and Pinout
