This article provides steps to install the M60 Pay Mobile Micro SD/Nano SAM & Nano Sim Card.

• First save files and shutdown the computer.
• Remove the battery. Refer to battery un-installation section of this user manual.
• Pull and slide down the Micro SD/Nano SAM + Nano Sim carrier located on the upper right side of the battery compartment.

Note: Battery removing for the M60 series requires specialized tools (Torx screwdrivers) and should only be done by qualified personnel.

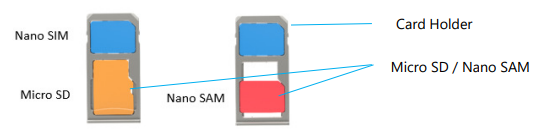

Figures below shows M60/M60C for example as card tray location is identical for M60S/M60SC.

• Place the Nano SIM and/or Micro SD/Nano SAM card into the carrier with contact side face down.

• Insert the carrier back into the Micro SD card compartment.

• Reinstall the battery. Refer to battery installation section of this user manual.
