Where can I find dimensional drawings for the 3203L monitor?

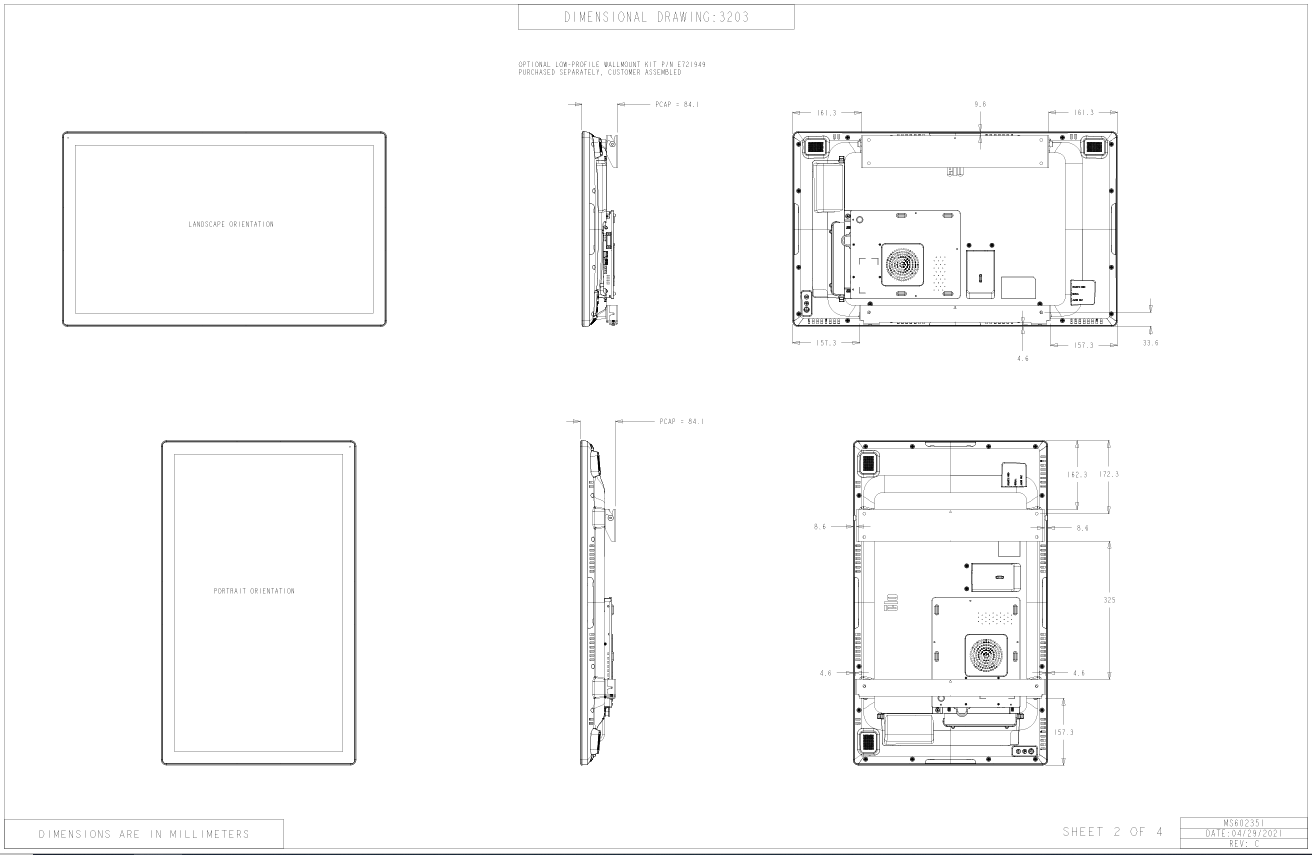

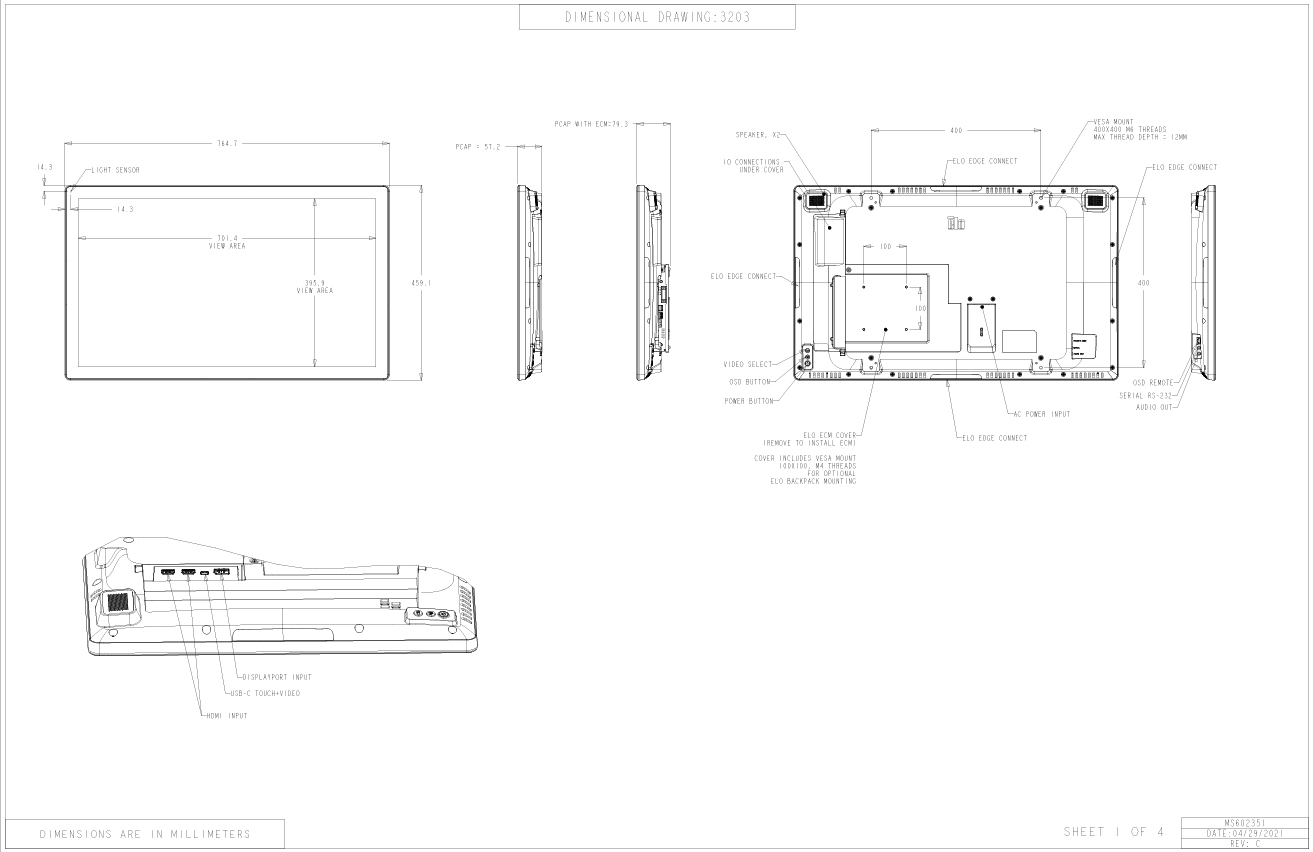

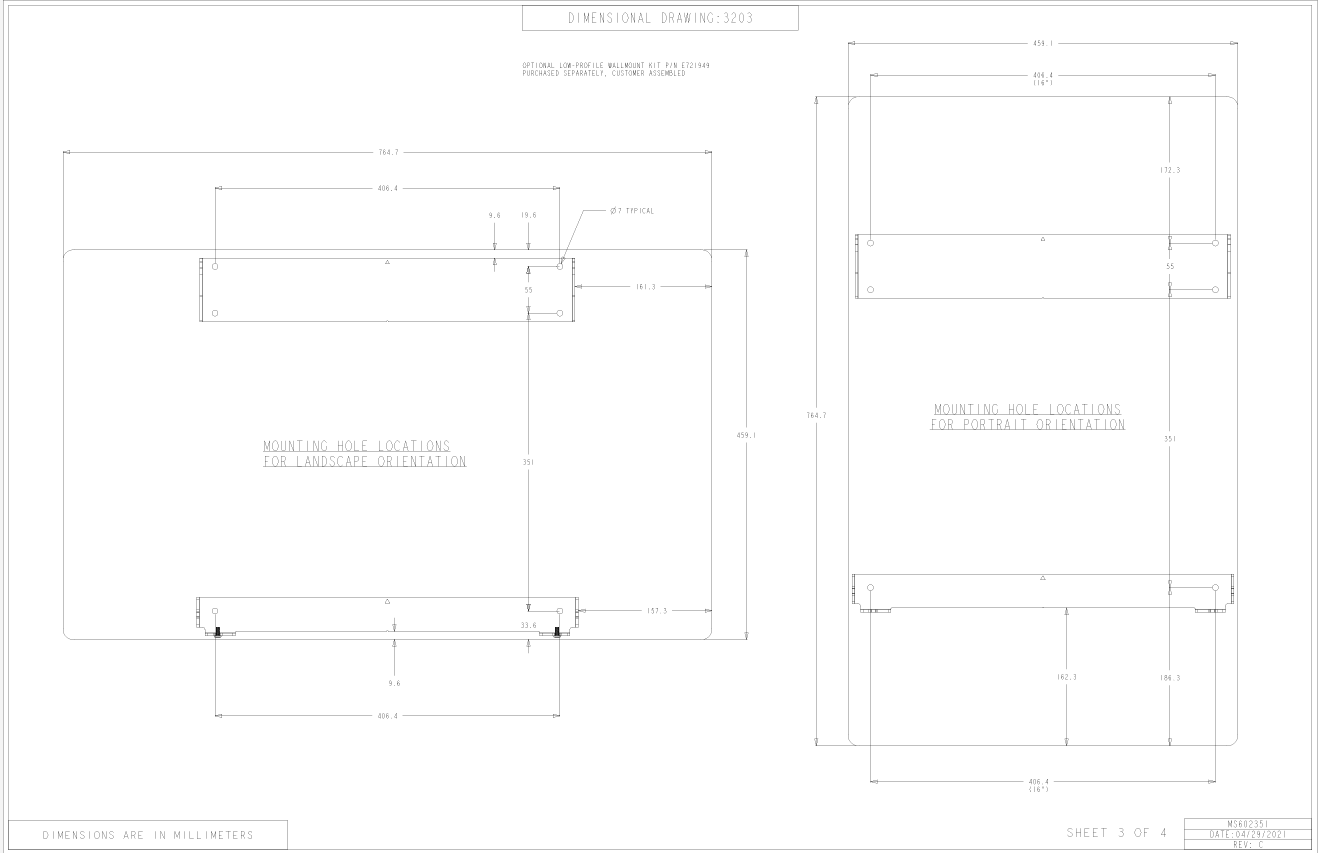

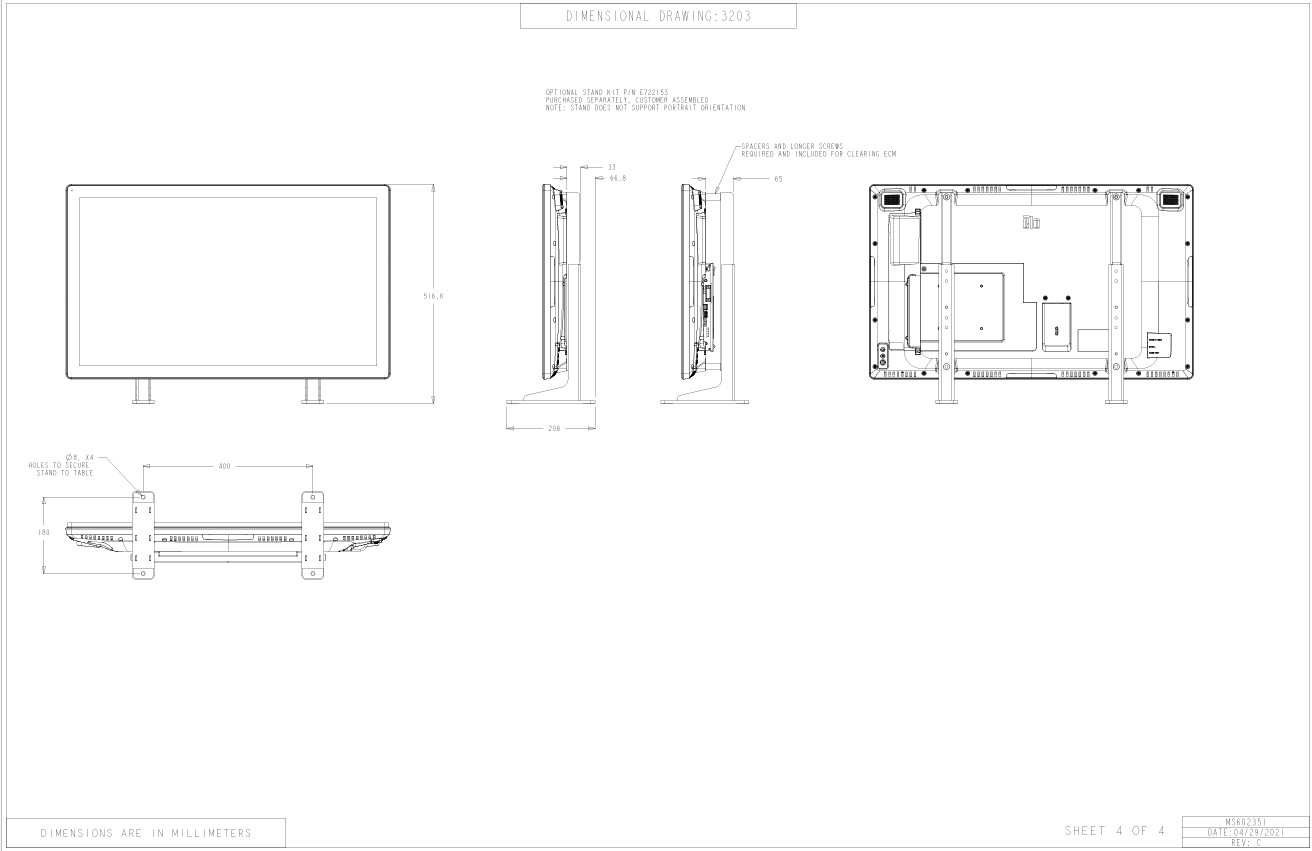

The below screenshot is the preliminary dimensional drawings of the 3203L IDS monitor.

Download the full .pdf copy of the drawing here.

Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
