Welcome to Elo Support

Drivers, Product Info, Technical Answers and more.

Where can I find dimensional drawings of the 4303L monitor?

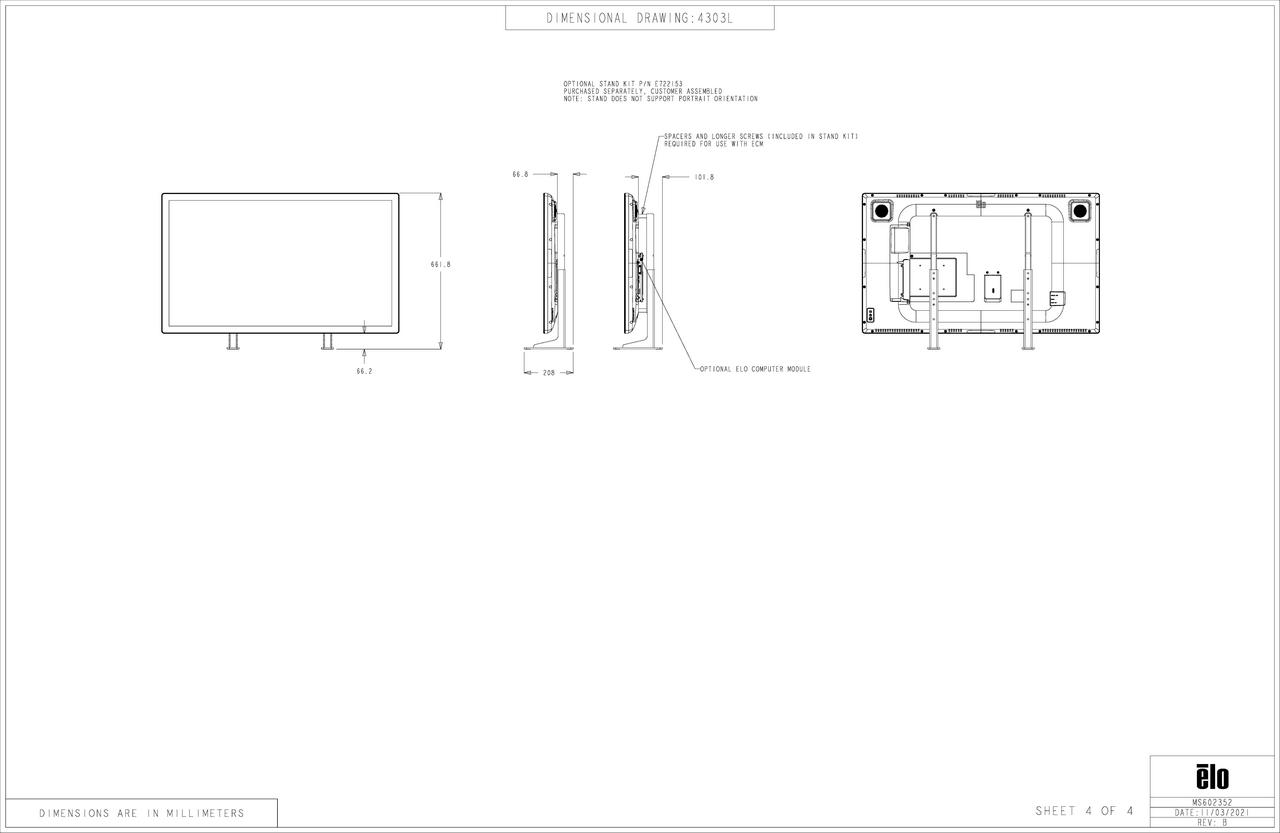

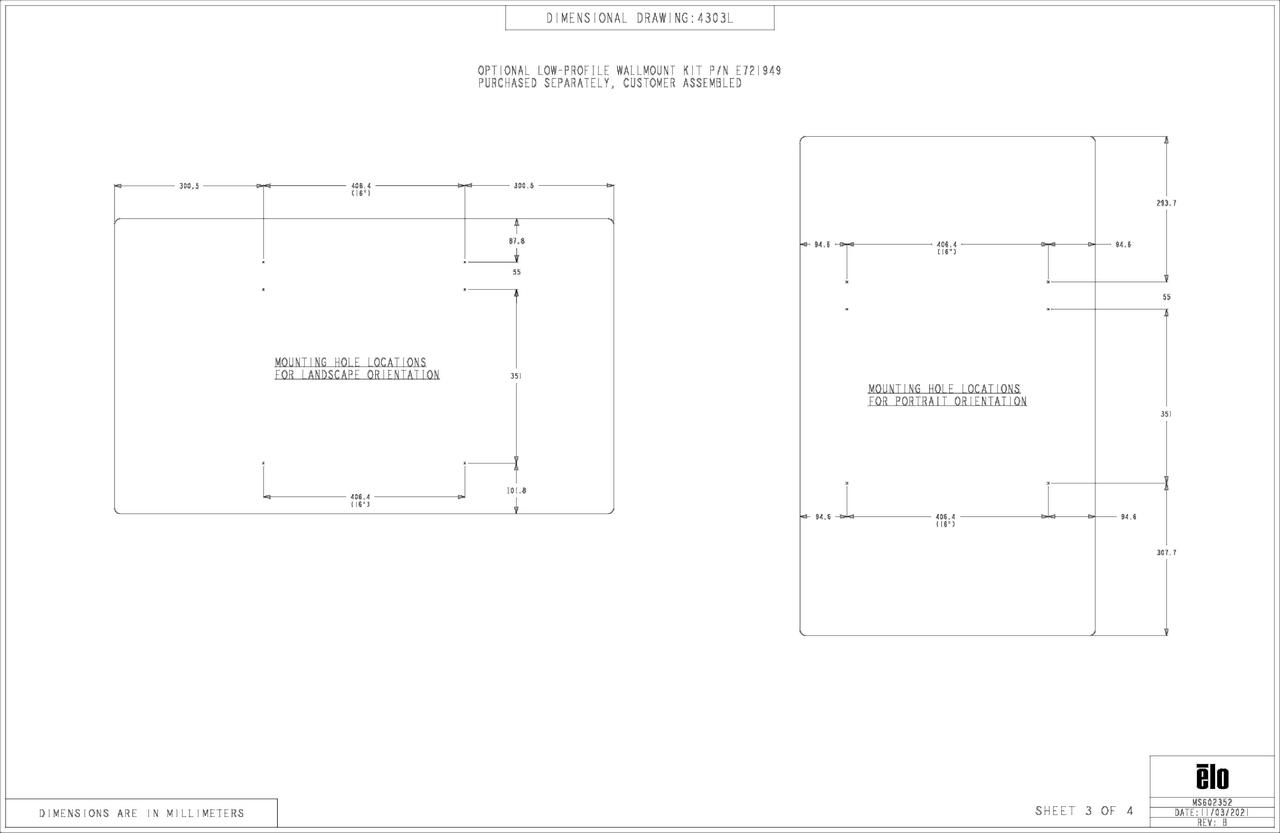

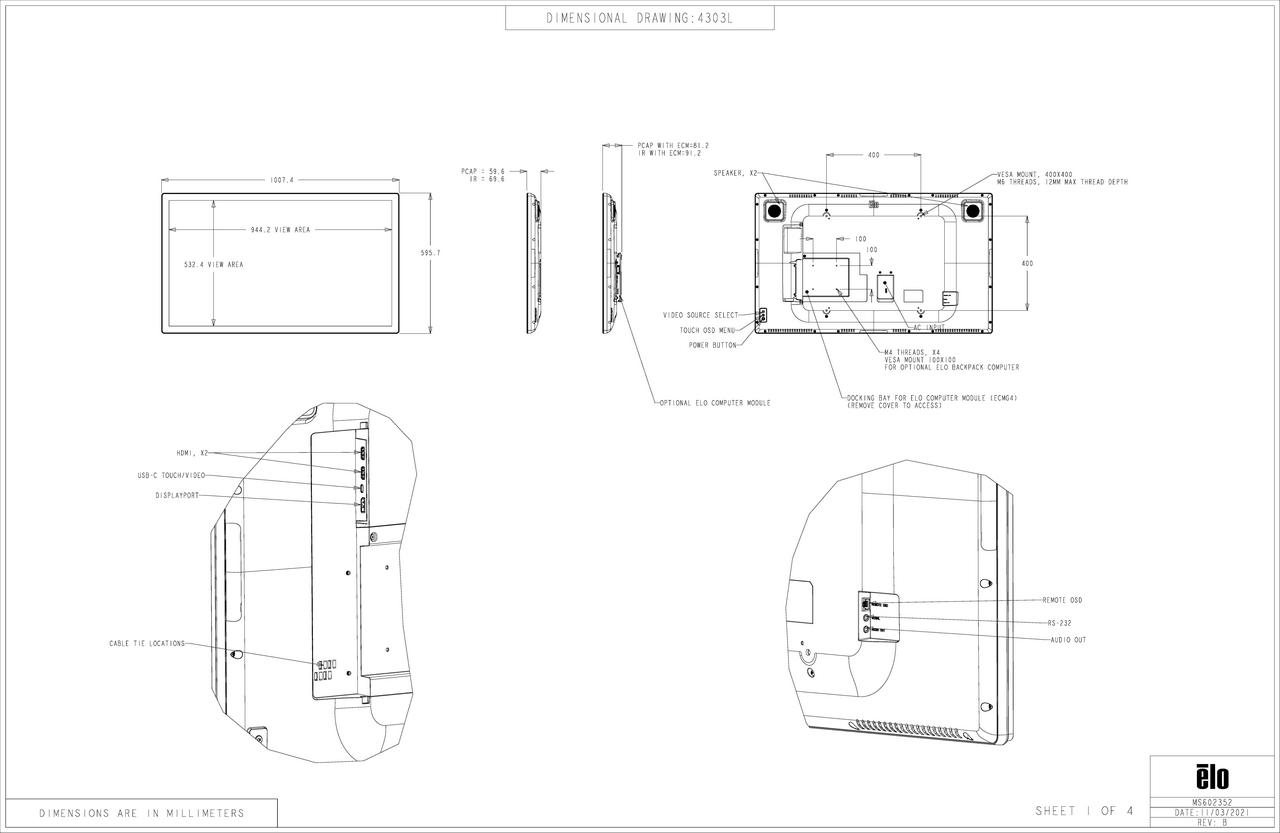

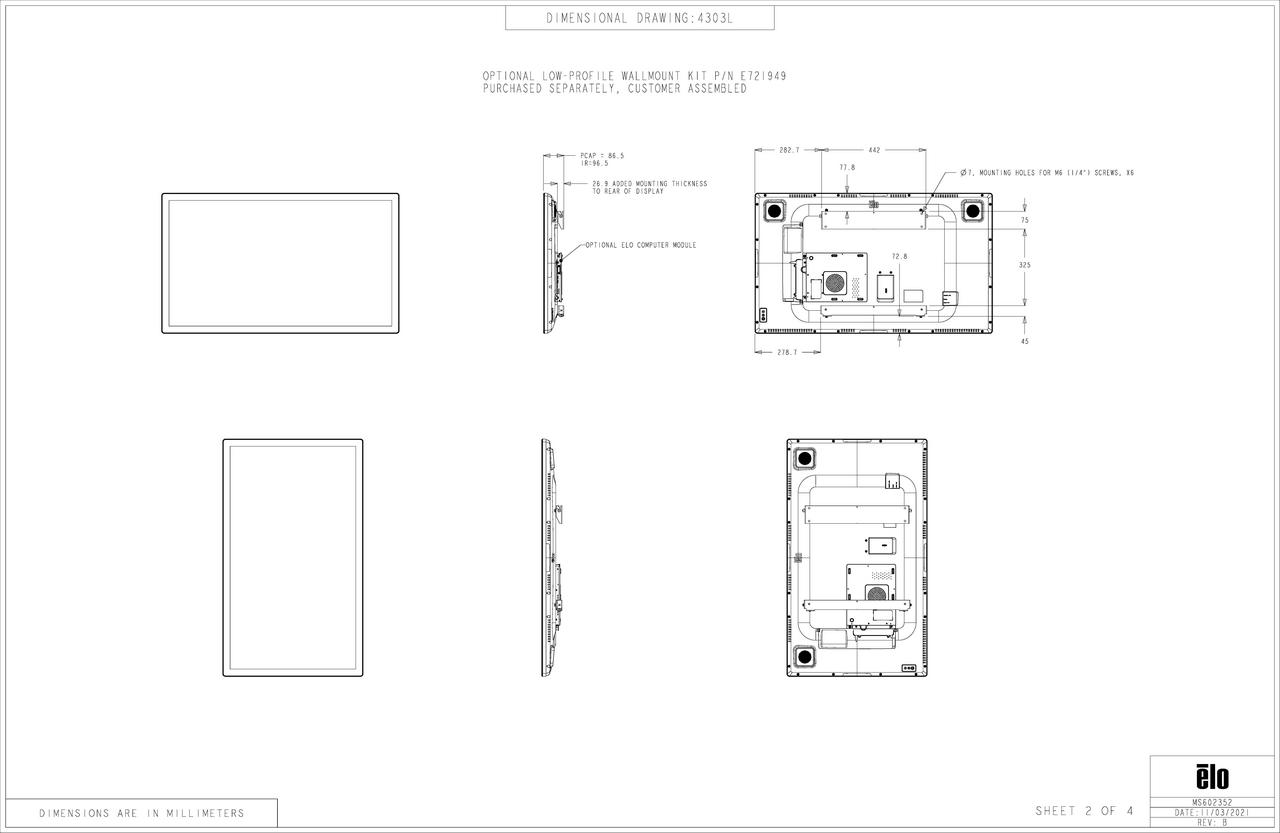

This article provides dimensional drawings for the IDS 4303L Monitor.


Please report any broken links by emailing elo.support@zebra.com and include a link to the knowledge article
