This article provides information for the legacy IDS-02 monitors and where to find VESA spacers and screws for those systems.
The VESA spacers and screws for the 02-IDS monitors (now obsolete) are included in the box with each ECM computer module kit and ECM Harness kit. These spacers and screws are not sold separately.

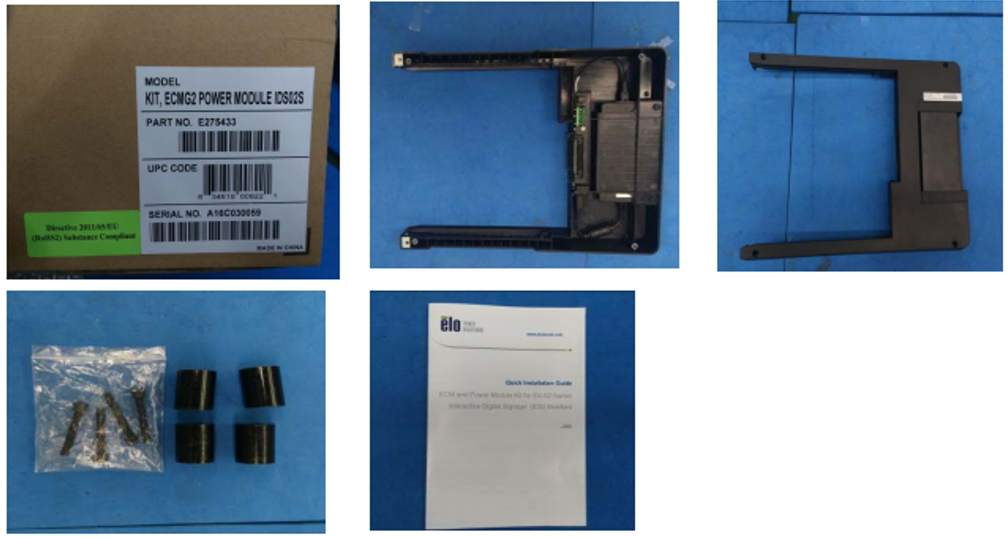

Below are photos of the contents of ECM Harness Kit: E275433 - this ECM harness kit is also included with every ECM computer module.
The power module includes the following components:
• Electrical module (harness) with mechanical assembly.
• Power Brick with AC input and 19V DC output (mounted inside harness)
• 4x VESA SPACER 39mm long
• 4x m6x60mm Philips head screws
• 1x Quick Install Guide
Below are photos of the contents of ECM Harness Kit: E275433
As an alternative, you may try using a 3rd party solution such as shown below:
Round VESA Spacer from McMaster Carr, P/N: 93013A350
Steel Socket Head Screw, P/N: 91290A344
