How to Enable Right-Click Mode in the Elo Multi-Touch Driver (Version 9.0+)

Note: Starting with the Elo Multi-Touch driver (Now part of Zebra Technologies) version 9.0 and above, you must install the driver in "single-touch" mode using the EloOptions.ini file to enable the right-click functionality. The following steps demonstrate this using the version 9.0.1 driver.

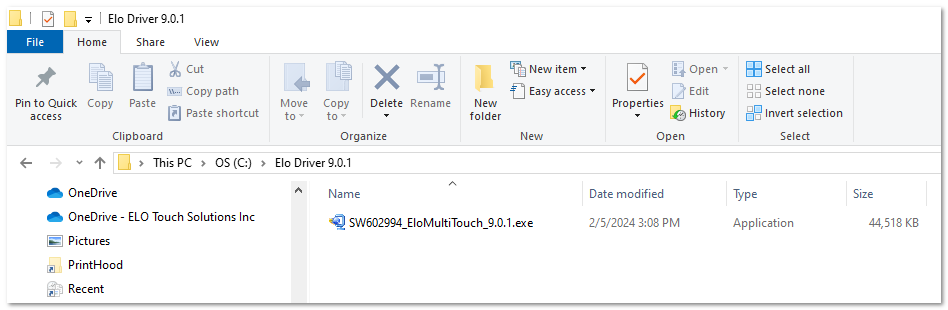

Download the latest Elo Multi-Touch driver to a location on your computer.
Example: C:\Elo Driver 9.0.1
Run the downloaded WinZip Self-Extractor executable.
Extract the file to your downloaded location.

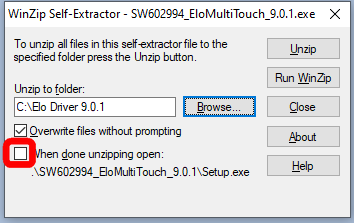

Important Warning: Do not allow the setup installer to open automatically when the extraction is finished. You must deselect the box beside "When done unzipping open:..." before extracting.

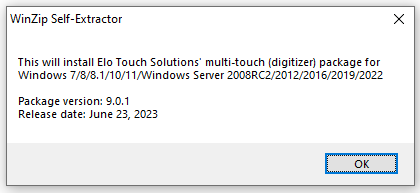

Click OK after the driver successfully unzips, and then close the WinZip Self-Extractor window.

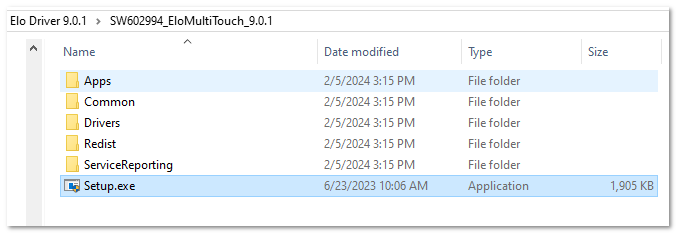

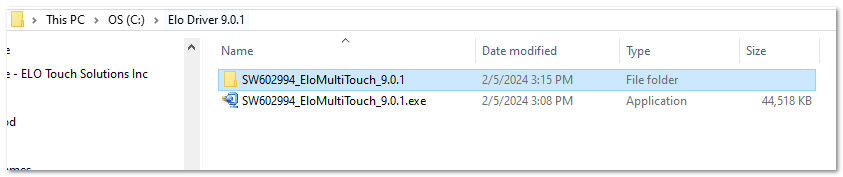

Navigate to the unzipped file location (e.g., C:\Elo Driver 9.0.1) and open the extracted folder.

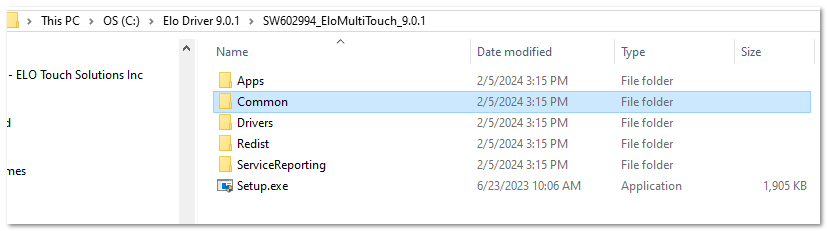

Open the Common folder.

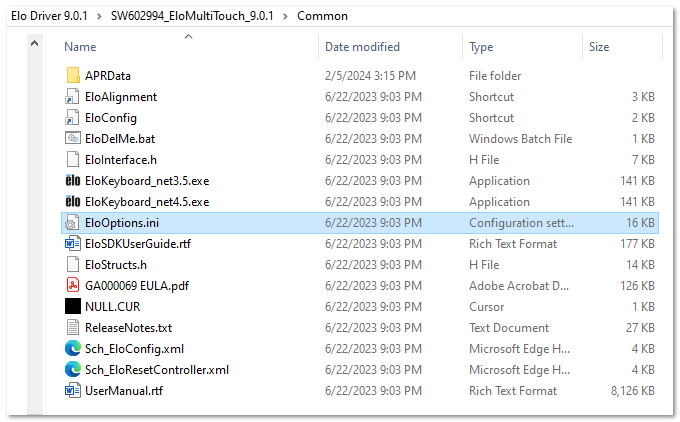

Double-click EloOptions.ini to open the configuration file in Notepad.

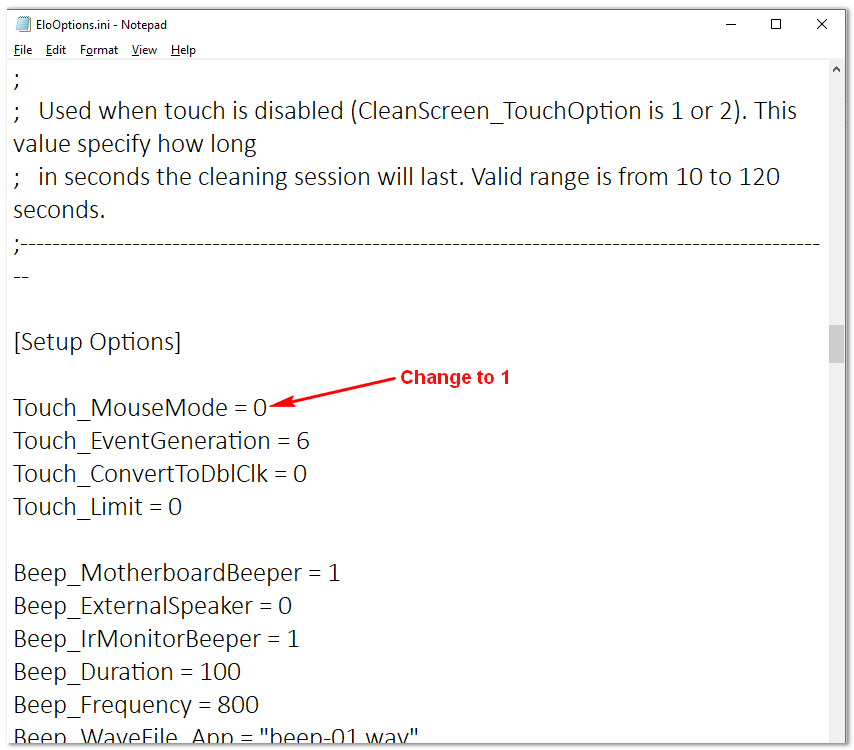

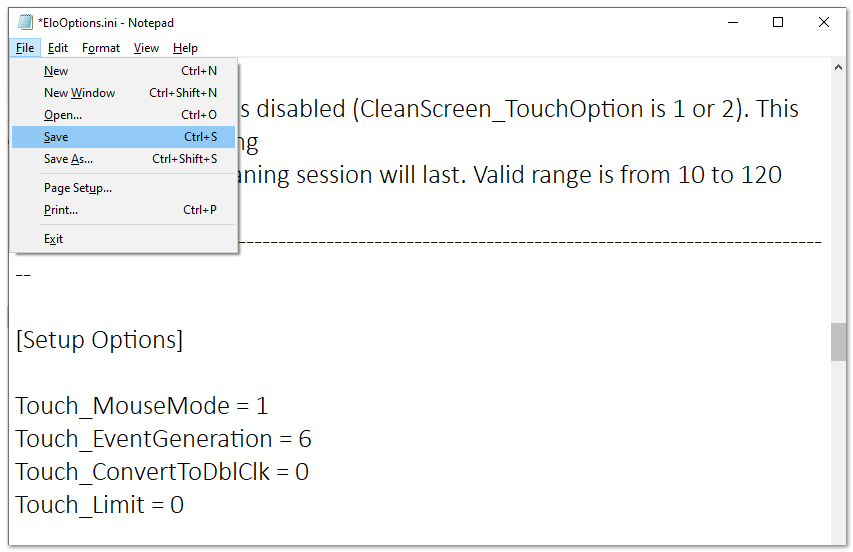

In the EloOptions.ini file, scroll down to the [Setup Options] section and change the Touch_MouseMode value from 0 to 1.

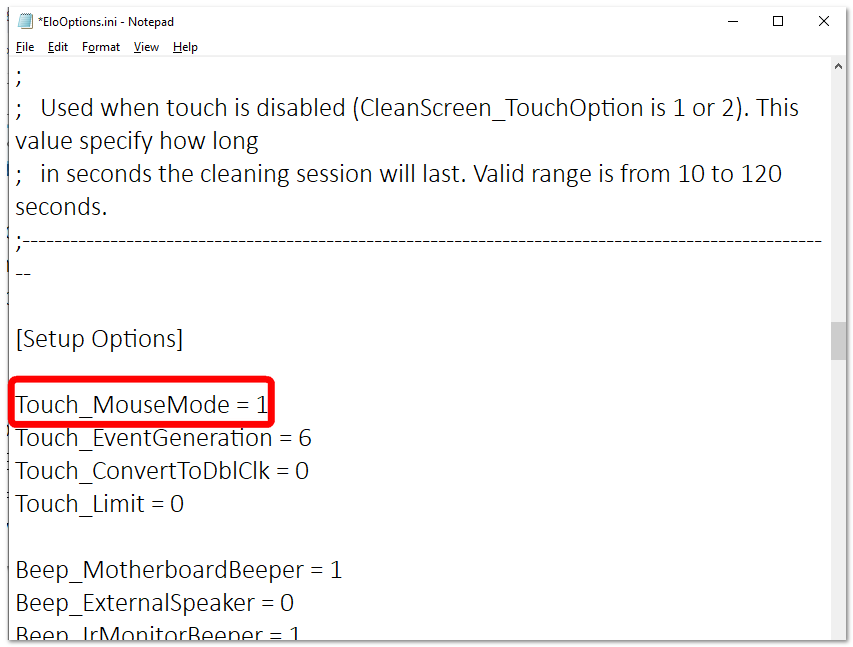

(Change Touch_MouseMode = 0 to Touch_MouseMode = 1)
From the Notepad File menu, select Save, and then close the EloOptions.ini window.

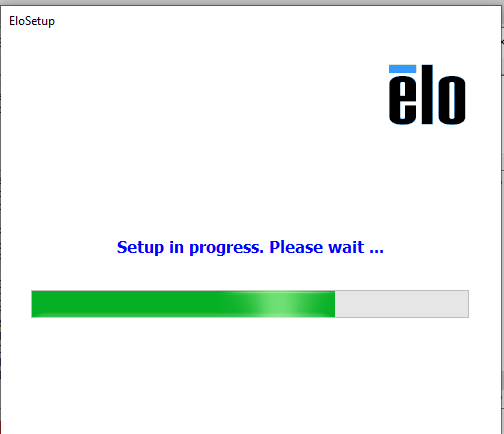

Navigate back to the main unzipped driver folder and double-click Setup.exe to begin the actual driver installation.

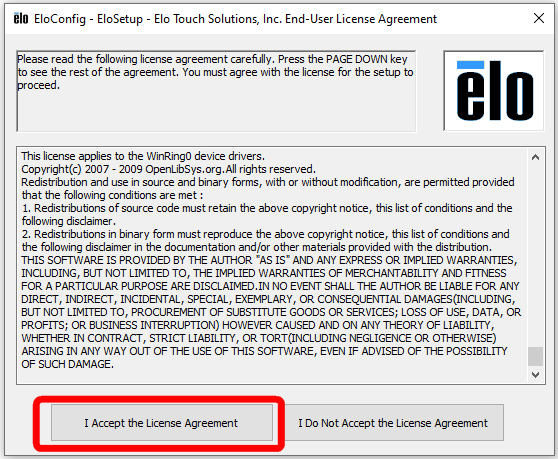

Review and accept the End-User License Agreement to proceed.
Click OK when the driver installation completes.
Go to your Windows Desktop and double-click the EloConfig application icon.

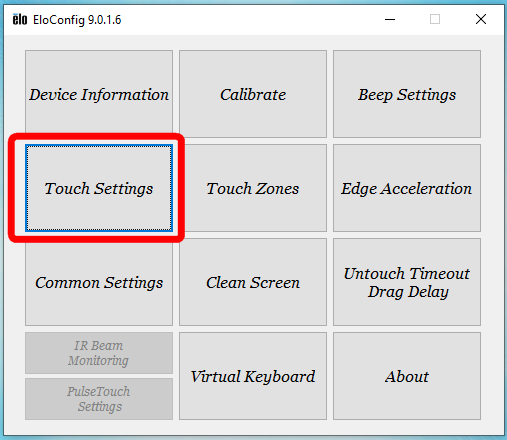

Click on Touch Settings within the EloConfig menu.

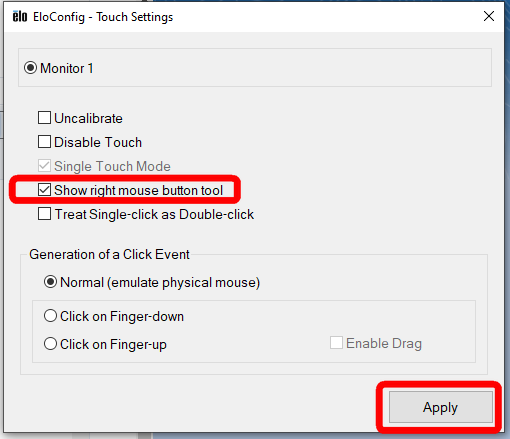

Check the box next to Show right mouse button tool, then click Apply.

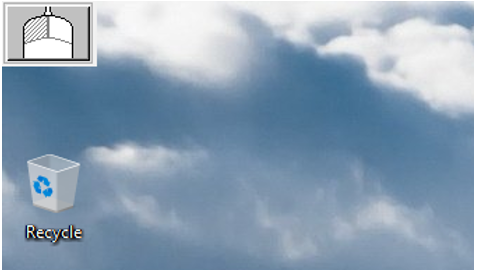

A Right-click toggle button will now be displayed at the top-left corner of the selected touch monitor.
