This article provides information for Elo P/N: E131942, Wi-Fi Adapter for IDS 04/54 IoT.

This Wi-Fi Adapter is for Elo 04 and 54 IDS Monitors only.


Details:

• Enclosure Color: Black
• Compatibility: 3204L, 4304L, 5054L, 5554L

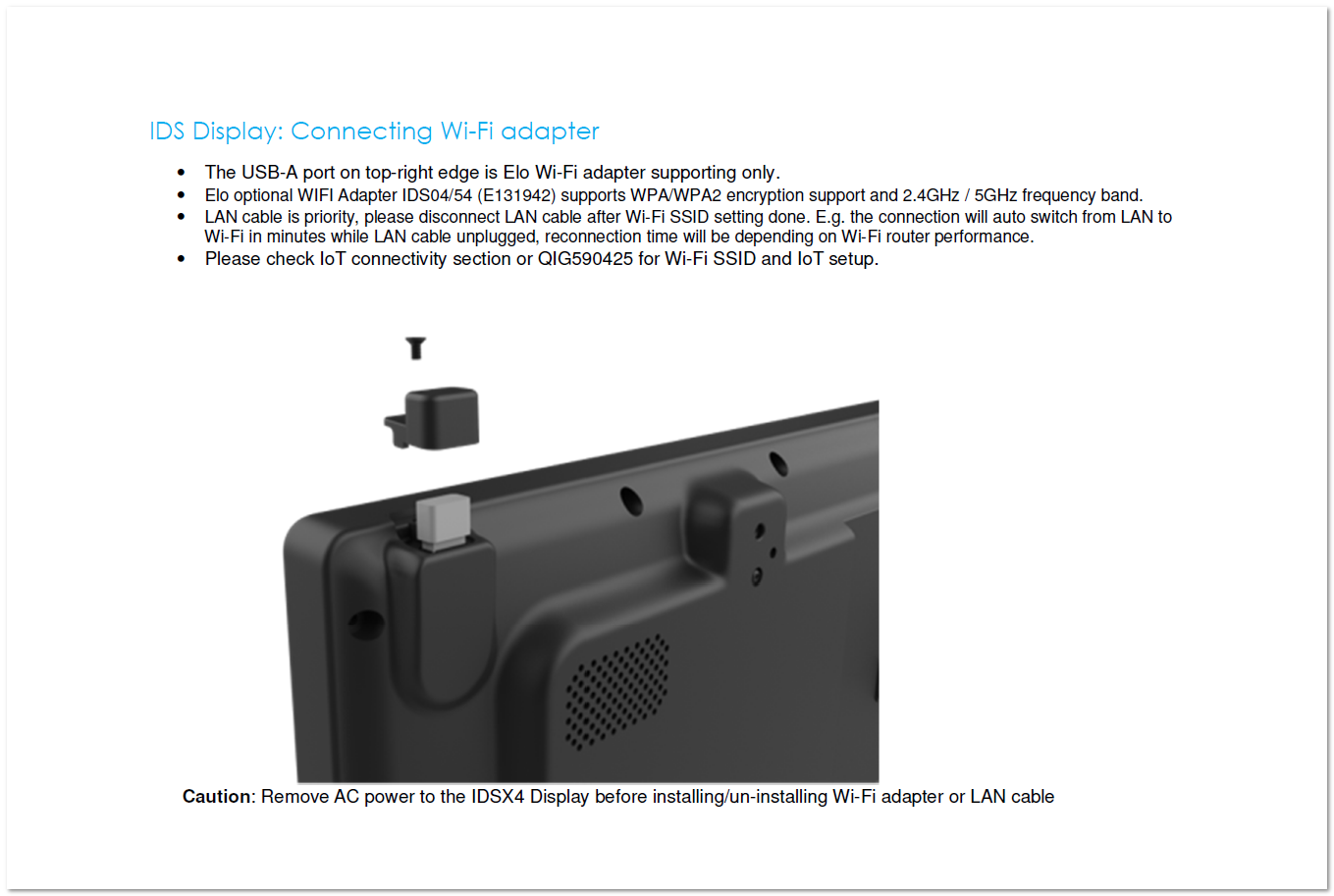

• Interface: USB 2.0 (Plug into IDSx4 IoT USB port on top side)
• Regulatory approvals and declarations:
  • Japan (MIC, VCCI)
  • USA (FCC)
  • Australia (RCM)
  • EU (CE)
  • Canada (IC)
  • UK (UKCA)
• Warranty: 1-year

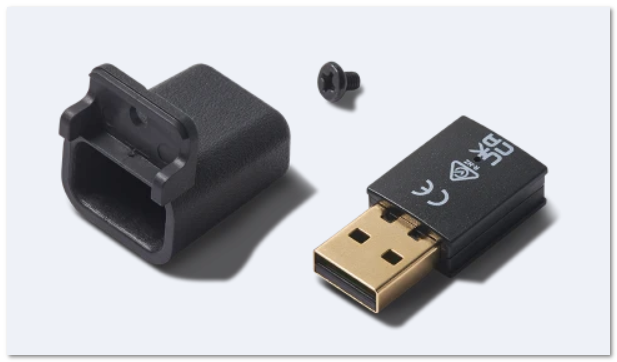

• What's in the Box:
  • Wi-Fi adapter
  • Wi-Fi adapter cover
  • 1x screw
  • QIG

Specifications:

• Wi-Fi module: RTL 8811CU
• Required IEEE standard:
  • supports the IEEE 802.11ac and 802.11 a/b/g/n specifications
  • Backward compatible with 802.11a/b/g devices
• Embedded antenna, one transmits one receive paths (1T1R) or better.
• Modulation Method: CCK, DQPSK, DBPSK, BPSK, 16QAM, 64QAM, 256 QAM, OFDM with BPSK, QPSK, 16QAM, 64QAM and 256QAM modulation.
• Convolutional Coding Rate: 1/2, 2/3, 3/4, and 5/6
• PHY data rate up to 72.2 Mbps using 20MHz bandwidth, 150 Mbps using 40MHz bandwidth, and 433.3 Mbps using 80MHz bandwidth

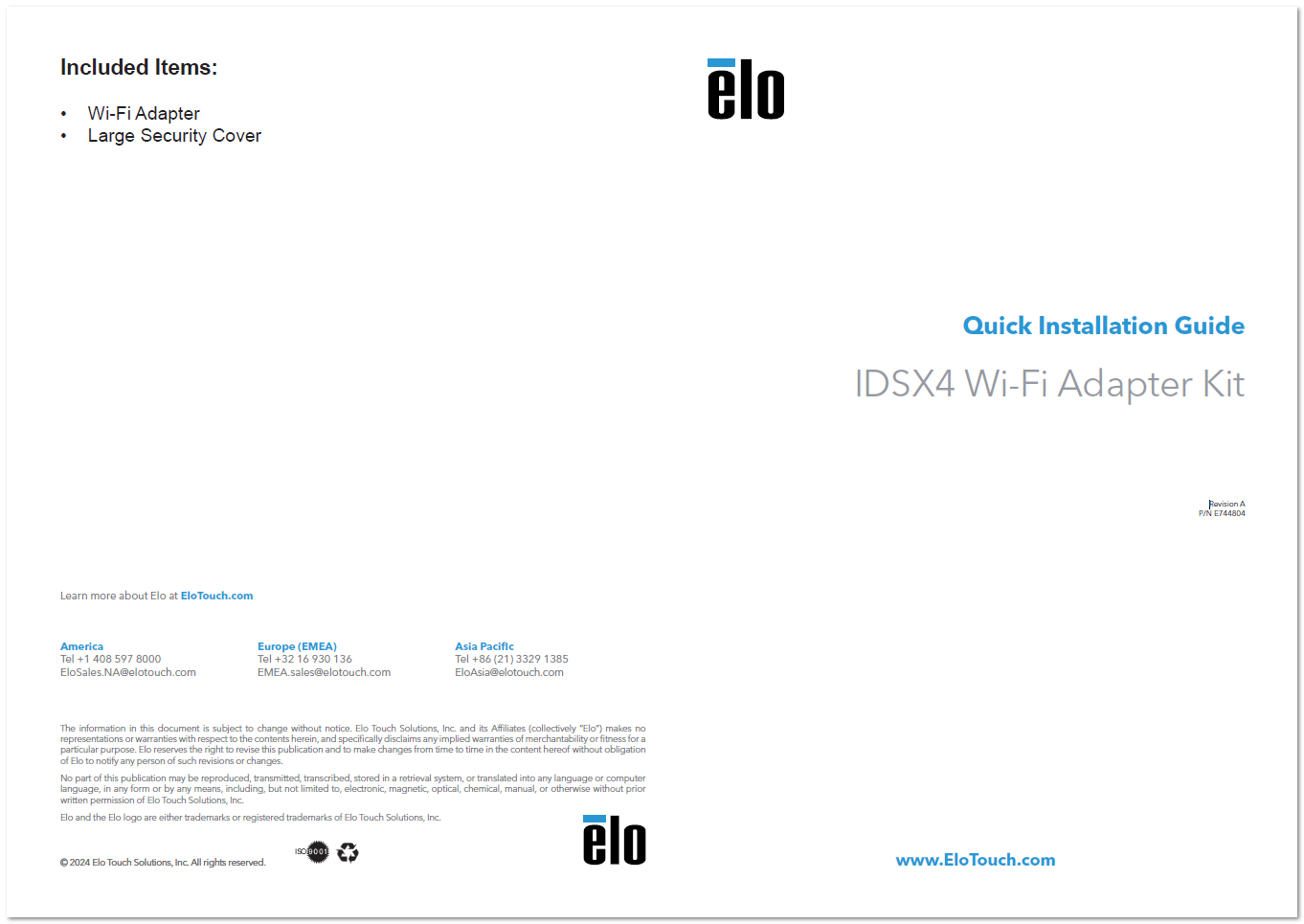

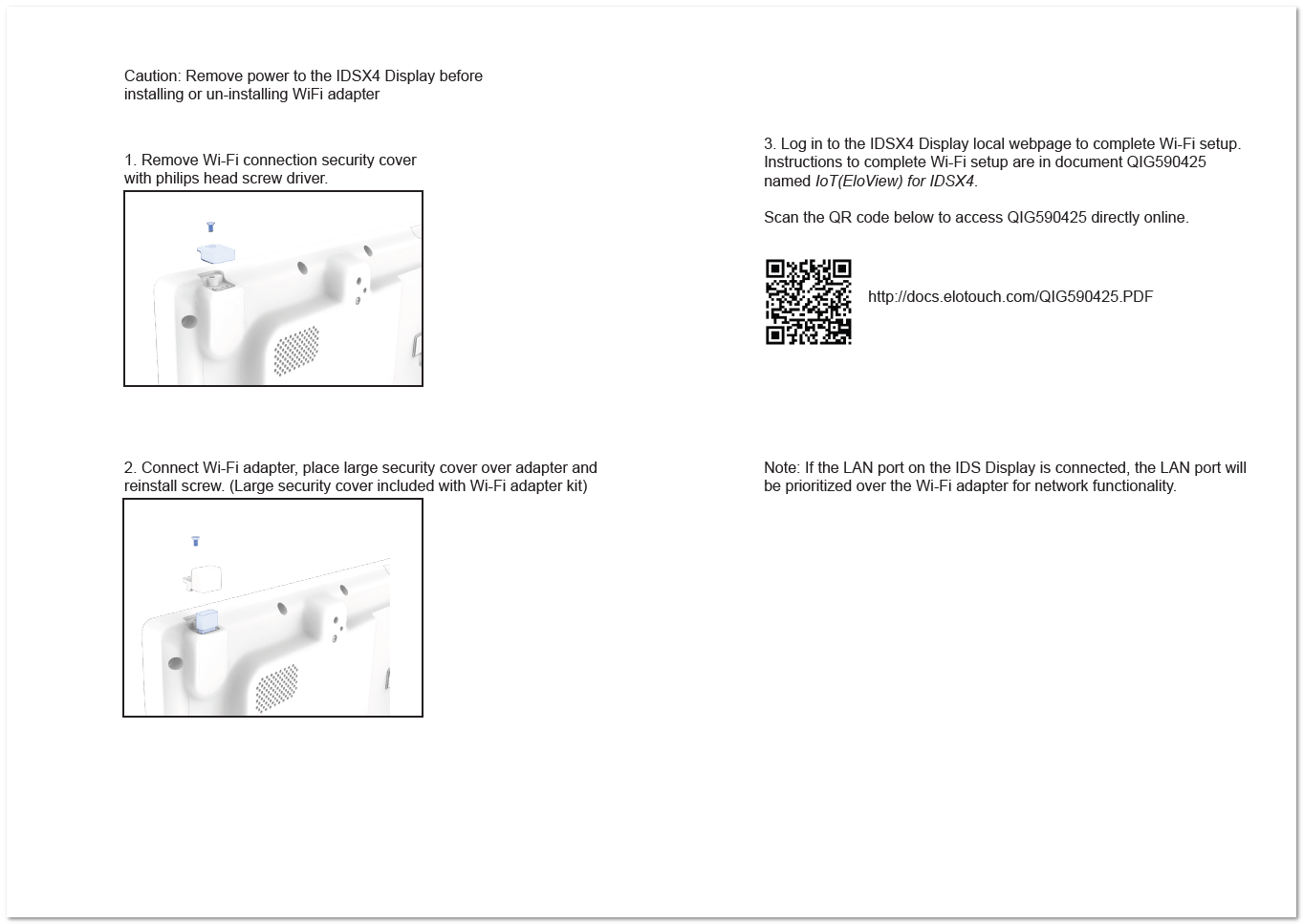

Quick Install Guide:
