This article explains how to upgrade the firmware on Elo 03/53 series IDS monitors

The below steps describe how to update the firmware on Elo's IDS-03 and IDS-53 digital signage monitors.

Required Materials

• Windows 7 / 10 host computer (32-bit or 64-bit)
• Video cable (HDMI)
• USB cable (Type A to Type B)
• MultiISP_v1.84 software
• IDS-03, IDS-53 Firmware download appropriate fw for your monitor)

Steps for Upgrading Firmware on IDS-03 Series Monitors

1. Turn ON the 03/53 IDS Monitor:

• Ensure the IDS-03 monitor is powered on.

2. Connect the Video and USB Cables:

• Connect one end of the HDMI video cable to the host PC and the other end to the IDS monitor.

• Connect the USB cable (Type A to Type B) from the host PC to the USB Type B port on the IDS monitor.

3. Install the USB Driver on the Host PC:

• This is required for proper communication between the PC and the monitor.

• Download the MultilSP_v1.84 and unzip to a location on the host PC.

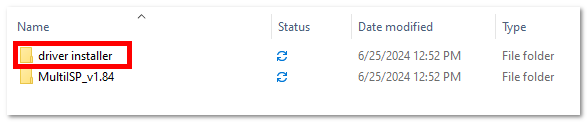

• Open the Driver installer folder.

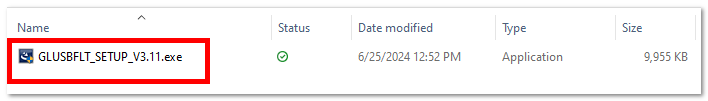

• Double-click Install the GLUSBFLT_SETUP_V3.11.exe driver file on the host PC.

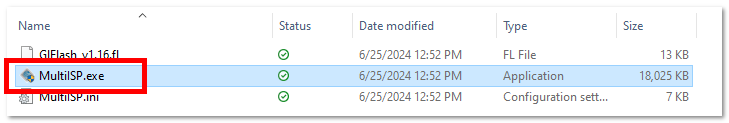

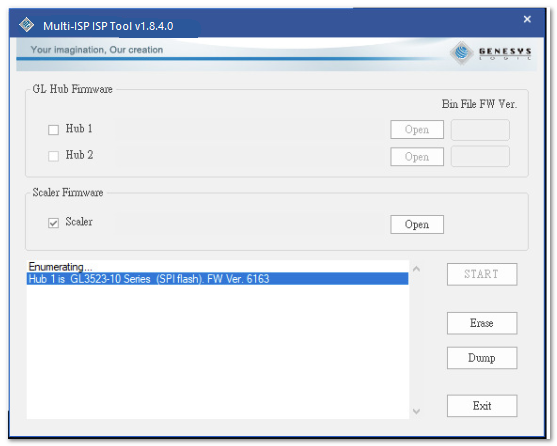

4. Open the MultiISP Software:

• After installing the driver, open the MultiISP.exe program on the host PC.

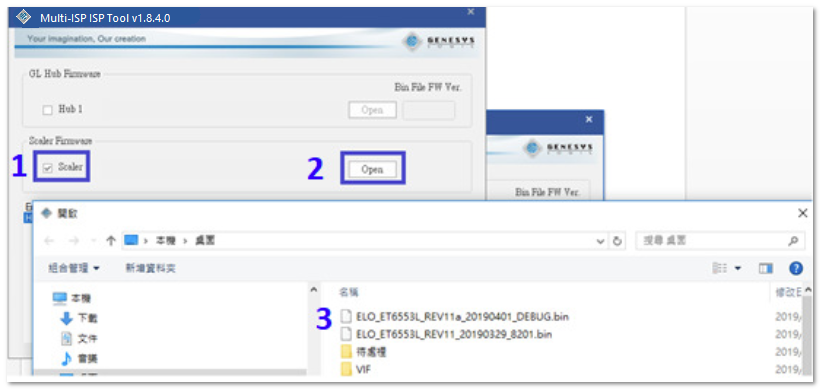

5. Load the Firmware File:

• In the MultiISP software, check the "Scaler" checkbox.

• Press the "Open" button and select the firmware file that will be used for the upgrade.

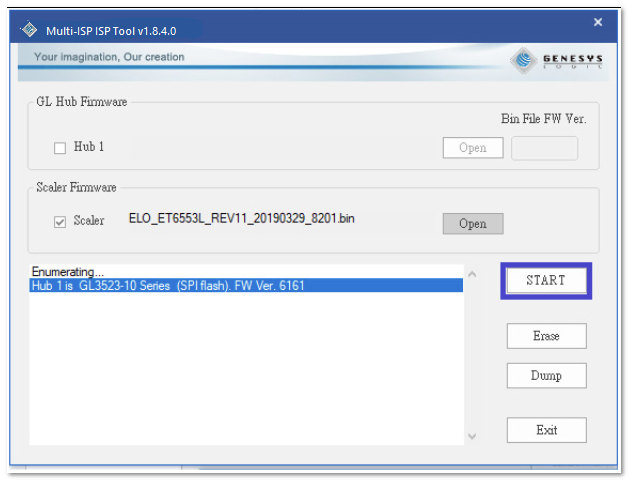

6. Start the Firmware Update Process:

• Click the "START" icon to initiate the firmware update process.

• Wait for the update to complete.

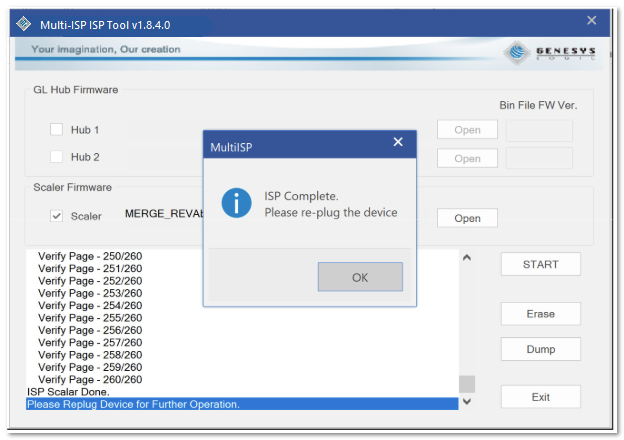

7. Finish and Reboot:

• Once the update is finished, click “OK” and then “Exit” in the MultiISP software to reboot the monitor.

Additional Notes

• Ensure that the firmware file is compatible with the IDS-03 or IDS-53 monitor model.

• Do not disconnect the video or USB cables during the firmware update process.

• It is recommended to perform the firmware upgrade in a stable environment to avoid any interruptions.

By following these steps, you can successfully upgrade the firmware on your IDS-03 or IDS-53 monitors. If you encounter any issues during the process, please refer to the monitor’s user manual or contact technical support for further assistance.
