This article addresses computer module compatibility on the Elo 04-Series and 54-Series Digital Signage monitors.

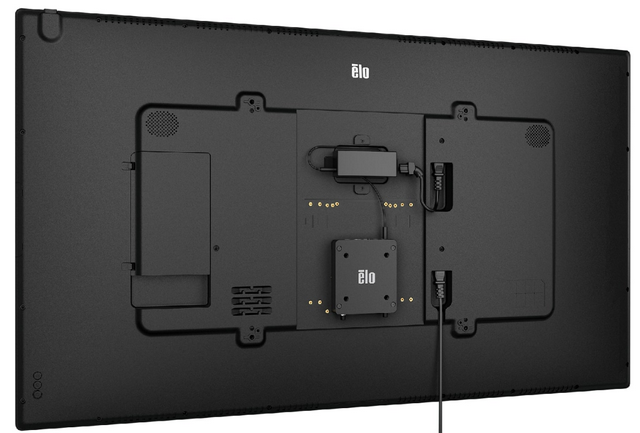

The new 04/54 design accommodates compute modules with 100mm VESA mounting solutions, such as the Elo BackPack, an Intel NUC, or a BrightSign player.

Additionally, these compute devices can be connected using the IDS inbox cable, which mounts on the rear of the monitor. This setup allows customers to power both the monitor and the external PC with a single AC cable. The addition of a Video and USB cable is still required; however, there are cable routing channels built into the back of the monitor.

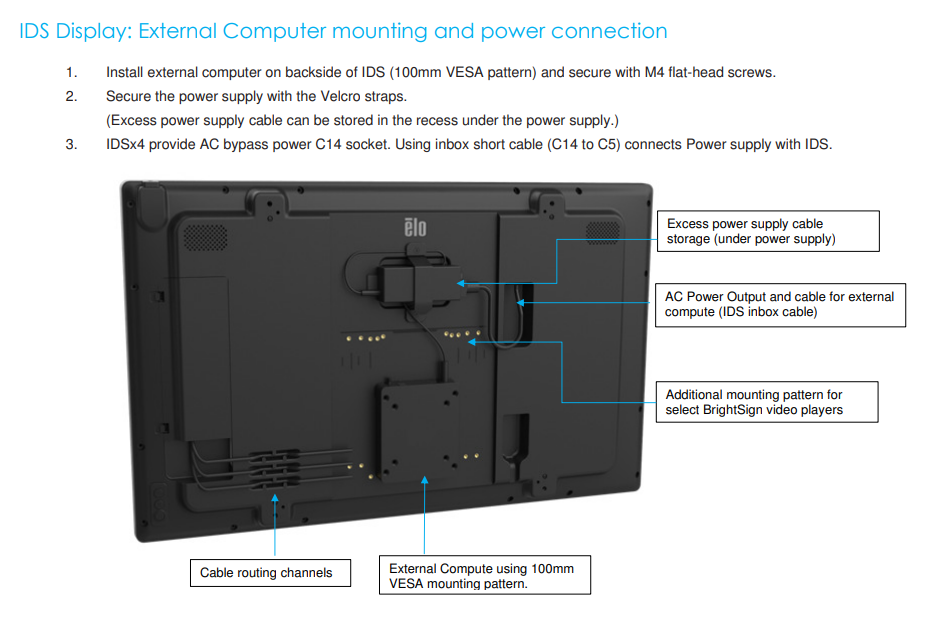

Please refer to the screenshot below from page 8 of the User's Manual for further details:
