Elo Multi-Touch Driver 9.2.0: Control Panel (EloConfig) Features & Settings Guide
Audience: Public / Elo Customers, Integrators & IT Administrators
Article Type: Driver Overview & Configuration Reference
This article provides a visual overview and walkthrough of the Control Panel (EloConfig) options available in the Elo Multi-Touch 9.2.0 driver for Windows.
Driver Download: Download Elo Multi-Touch Driver 9.2.0
Documentation: Download Driver User Manual (DOCX) for detailed parameter descriptions and advanced configuration instructions.
Control Panel (EloConfig) Screens & Settings

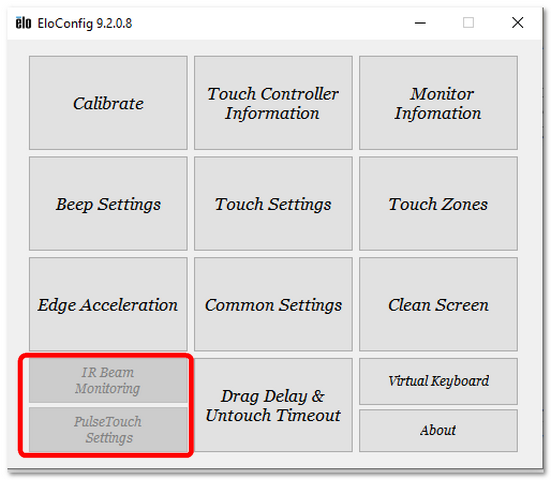

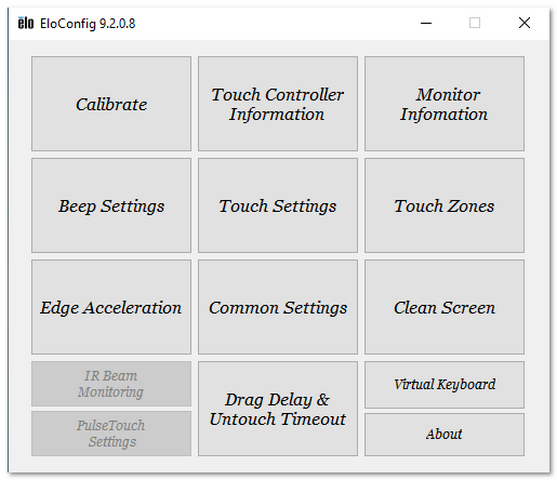

1. Main GUI (Device Overview)

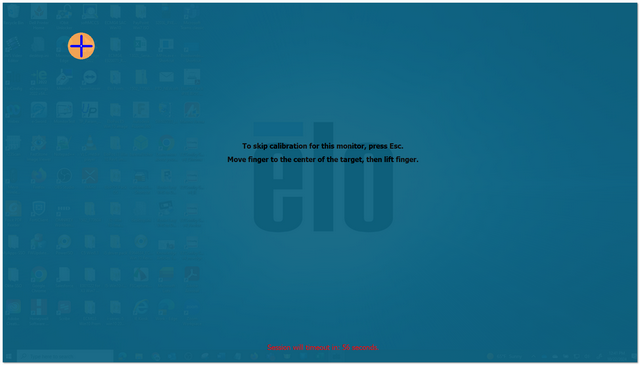

2. Calibrate

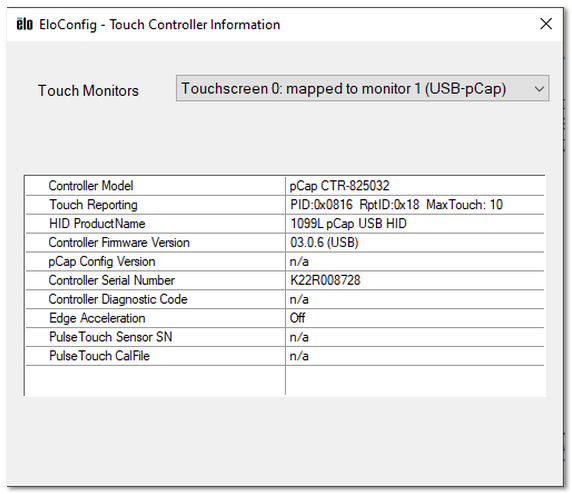

3. Touch Controller Information

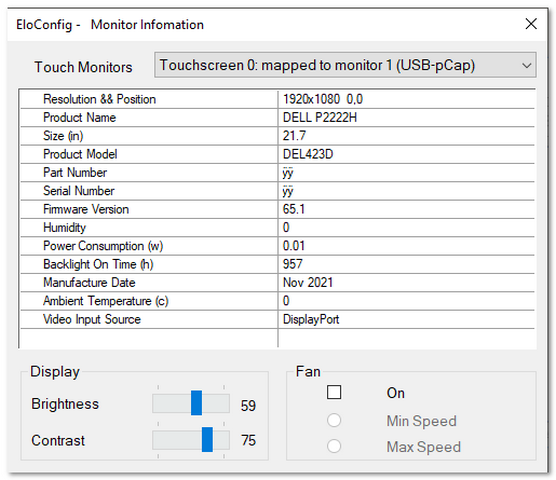

4. Monitor Information

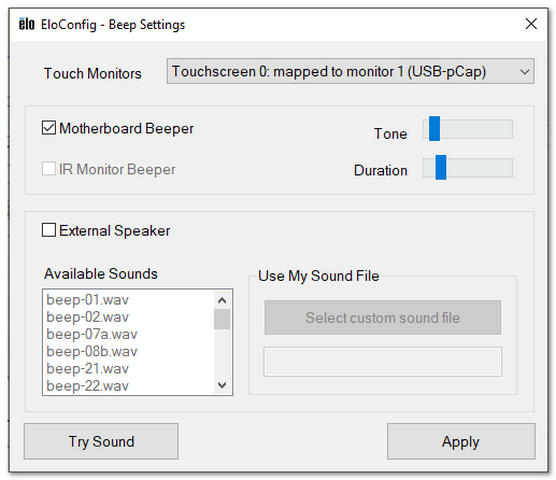

5. Beep Settings (Touch Sound Feedback)

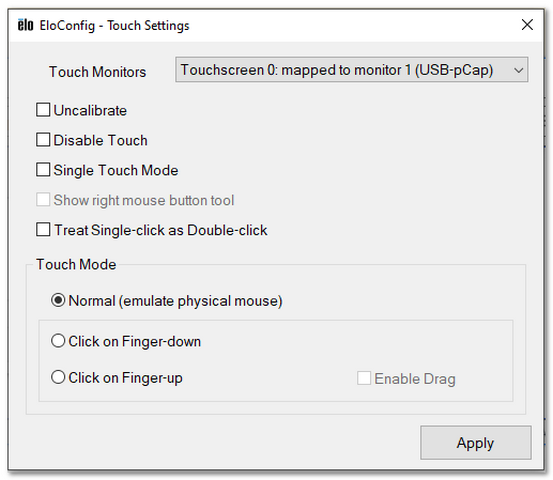

6. Touch Settings

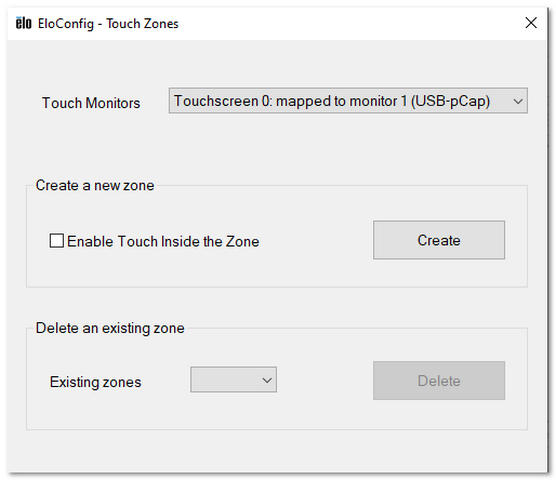

7. Touch Zones (Active Touch Area Configuration)

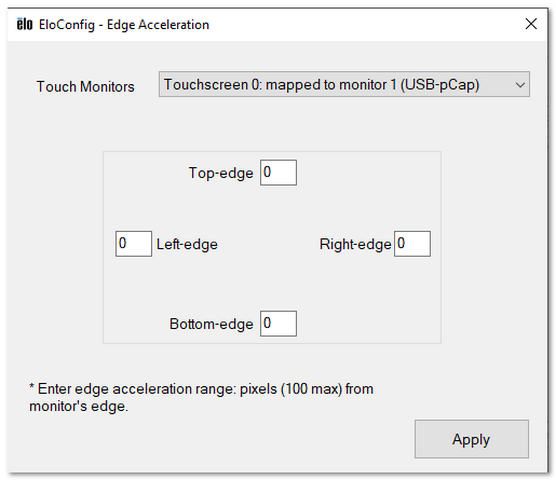

8. Edge Acceleration

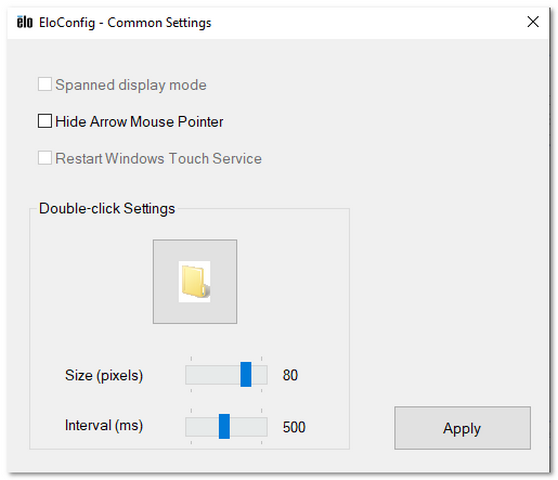

9. Common Settings

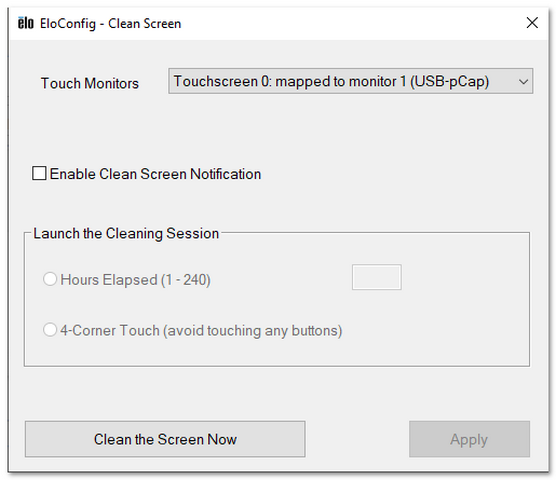

10. Clean Screen Mode

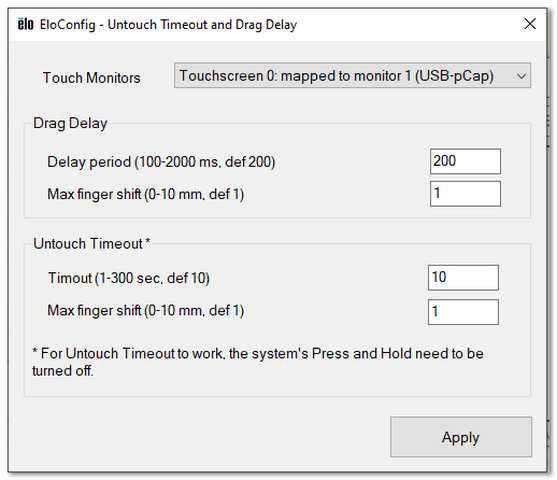

11. Drag Delay & Untouch Timeout

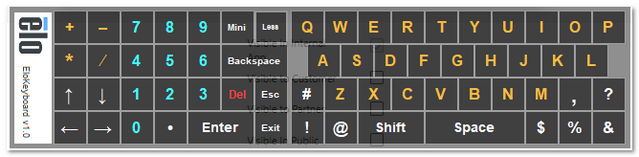

12. Virtual Keyboard

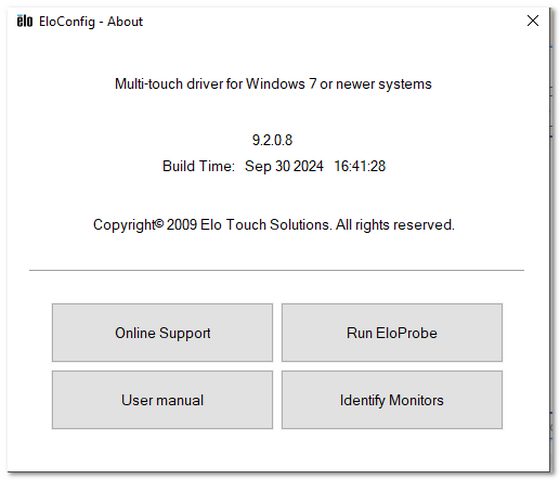

13. About Tab (Driver & Package Version)
Technology-Specific Settings (IR Beam & PulseTouch)
Note: IR Beam Monitoring and PulseTouch Settings tabs are dynamically enabled only when a compatible Infrared (IR) or PulseTouch monitor is detected. For all other touch technologies, these menu options remain grayed out.

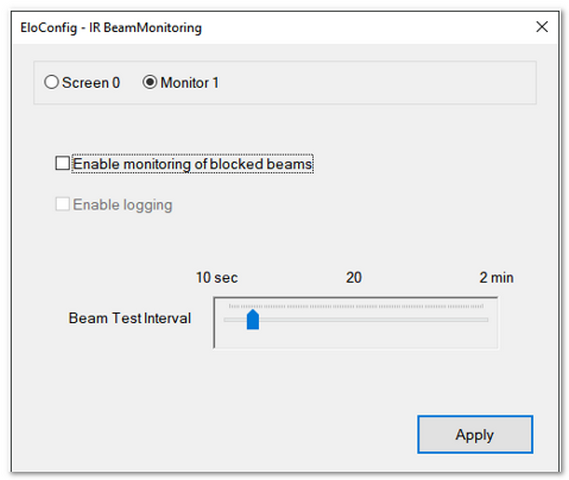

IR Beam Monitoring

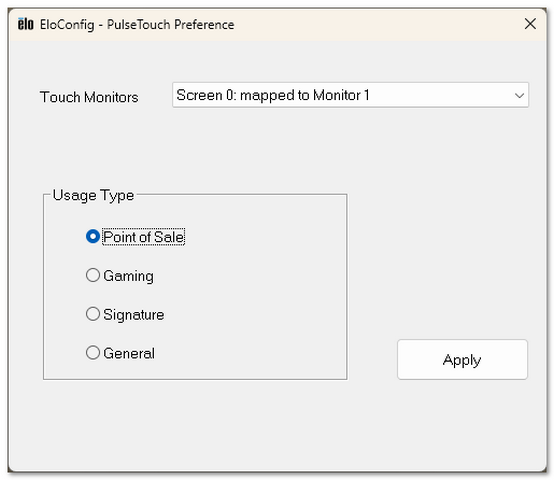

PulseTouch Settings
