This article provides information is for Elo P/N: E949374: AiO Power Brick,19V/180W,DELTA.

Power Adapter for E809509, Expansion Module for Android

Specs:

• AC Input Specs
  • Input Rated Voltage: 115V/230V
  • Input Voltage Range: 90Vac to 264Vac, continously
  • Input Frequency Range: 47Hz to 63Hz, continously
  • Input Voltage Harmonic Distortion: <><></></> 8%
  • Input Current: 90Vac / full load: <><></></>2.34A, 180Vac/full load: <><></></>1.25A
  • Inrush Current: <><></></>140A Fuse will not open and components will not be damaged
  • Efficiency: 115/230Vac Average efficiency at loads of 25-50-75 and 100% load, 88%
• DC Output Specs
  • Output Rated Voltage: Measured at the end of DC cable, 19.5V
  • Output Current: At constant voltage mode, 0A to 9.23A
  • Output Voltage Range: 00~9.23A output at DC cable end, 19.5 +/- 5%

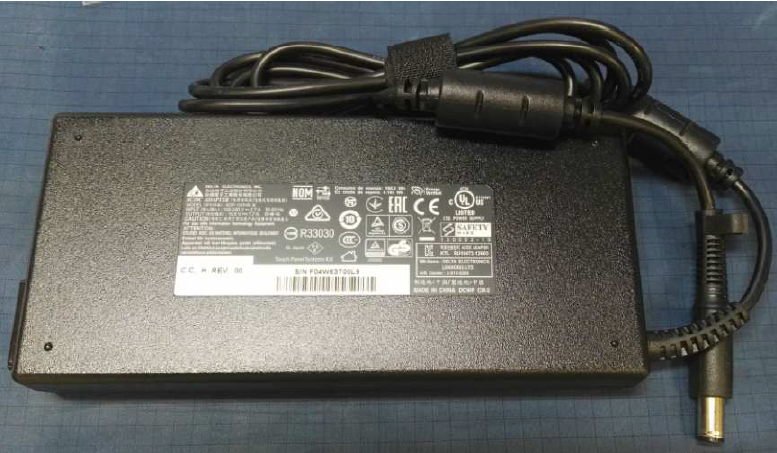

Photo:

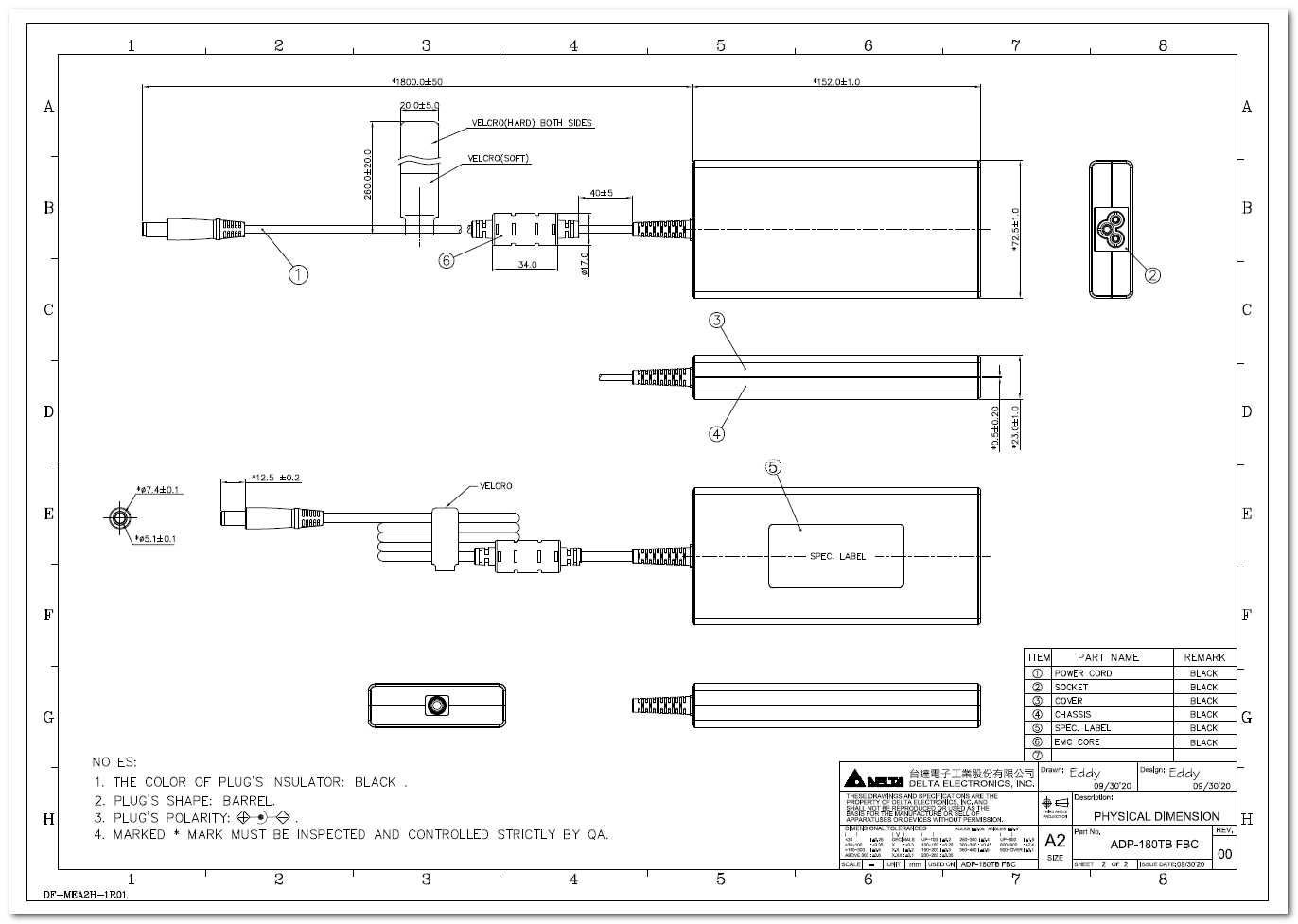

Drawing
