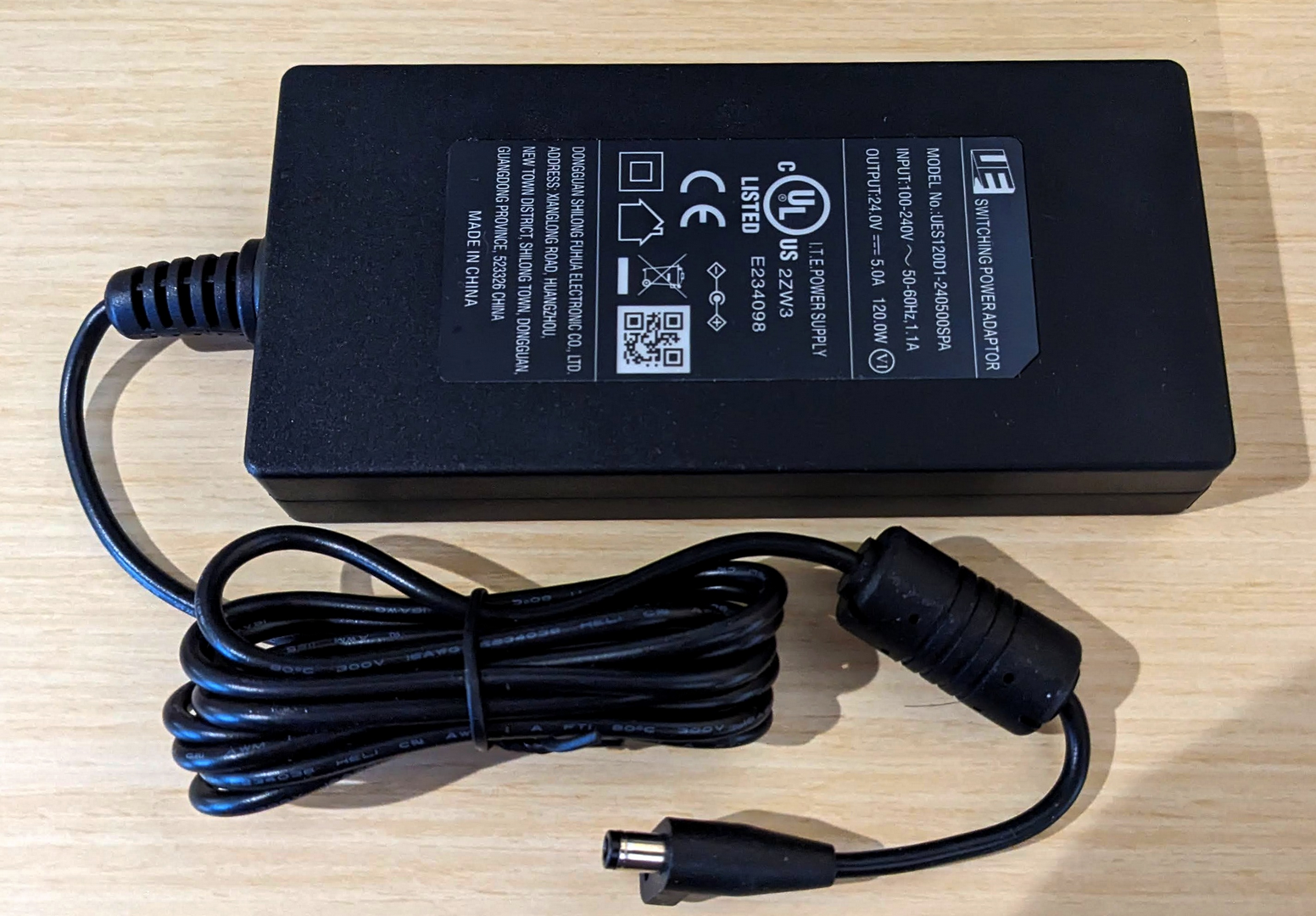

This article provides specifcations for the power adapter that ships with E815044, Small I/O Hub.

General Technical Specifications

• RoHS Compliant: Yes

• Input Voltage Range: 90Vac to 264Vac

• Input Frequency Range: 47Hz to 63Hz

• Input Current: < 2.0Arms at 100Vac input and maximum load

• Efficiency: 88% min.

  • Measured at 115Vac/230Vac input voltage

  • Tested at 25%, 50%, and 100% of rated load

  • Includes DC cable loss

• Power Saving Requirement: < 0.075W (no-load) @ 115/230Vac, 5V output

• Output Rated Voltage/Current: 24.0VDC / 5.0ADC

• Output Voltage Ripple and Noise: ≤ 240mV peak-to-peak

• Peak Load:

  • 8A for 2ms peak, duty cycle 1/14 (2A rms assumed), R/S: 2.5A/µs

  • 10A for 0.1ms peak, duty cycle 1/40 (2A rms assumed), R/S: 2.5A/µs

• OCP (Over Current Protection): 6A < OCP < 9A, t ≥ 50ms

• Temperature:

  • Operating: -20°C to 50°C

  • Non-Operating: -30°C to 70°C

Approved Manufacturer List

• Manufacturer: UE Electronic
  Part Number & Revision: UE231013DGMG1RI
