Bem-vindo ao Suporte Elo

Drivers, informações do produto, respostas técnicas e muito mais.

Onde posso encontrar o desenho e as especificações de potência da fonte de alimentação P/N: E323104?

Este artigo fornece mais informações sobre P/N: E323104 Desenho da Fonte de Alimentação e Especificações de Potência

O Desenho da Fonte de Alimentação E323104 e as Especificações de Potência são mostradas abaixo.

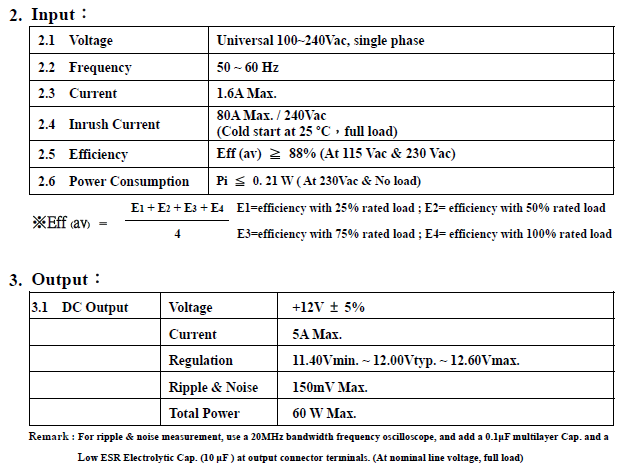

Especificações de Potência

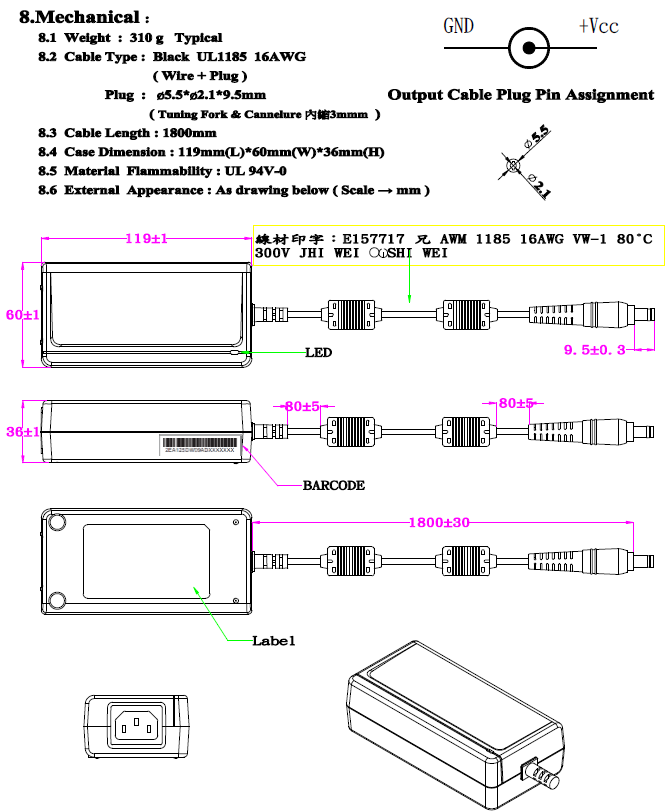

Desenhos
