This article provides information about the Elo E134286 Finger Print Scanner

Below are links to documents and information for the Elo E134286 Edge Connect Finger Print Scanner.

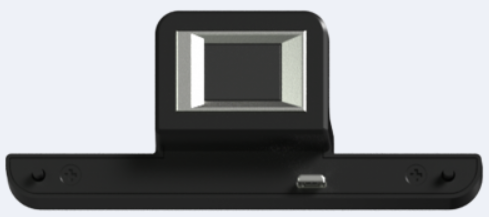

Elo’s new Fingerprint Scanner delivers a fast and reliable way to use biometric authentication for individuals who require access to a device or building. From patient and doctor authentication to employee login, the reader seamlessly integrates with a variety of Elo displays via the Elo Edge Connect technology. By using a capacitive sensor, the Fingerprint Scanner can withstand up to 4 million touches - providing the durability you need with high quality scans time after time.

P/N: E134286 - Description: KIT, FPR, USB, TCET, EDGE CONNECT



Documentation:
•   Quick Install Guide: https://docs.elotouch.com/QIG600109.pdf
•   User Manual: https://docs.elotouch.com/UM600514.pdf
•   Dimensional Drawing: https://docs.elotouch.com/MS602693.pdf
•   CAD File Request: https://support.elotouch.com/CadRequests/Agreement.aspx?Type=IDS&Model=FPR
•   SDK's: https://myelo.elotouch.com/support/s/developerportal

Device Compatibility:
•    I-Series for Android (2.0, 3.0)
•    I-Series for Windows (2.0)
•    EloPOS
•    1002L, 1302L, 1502L, 2002L, 2202L, 2402L, 2702L
•    3202L, 4202L, 4602L, 5502L, 5553L, 6553L

Supported Operating Systems:
•    Windows Embedded Pro 7 32/64-bit
•    Windows 10 LTSB
•    Android 4.4.2 or later version.
•    Linux: Ubuntu 18.04 with EloPOS

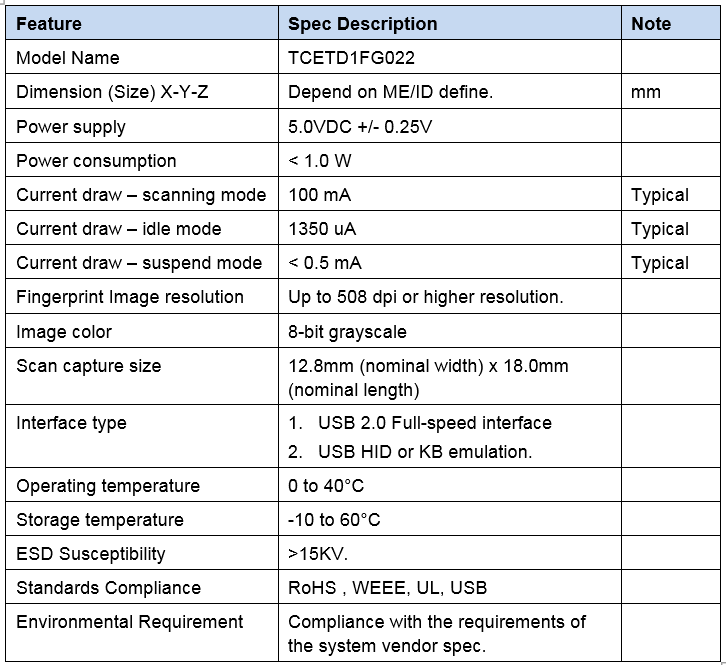

Features:
