Troubleshooting Windows 11 Touchscreen Unresponsiveness or Disabled Input

Audience: Public / Elo Customers, IT Administrators, Field Support & Integrators

Article Type: Post-Upgrade Troubleshooting & OS Hardware Recovery Guide

This article provides troubleshooting steps for scenarios where an Elo Touchscreen stops responding or fails to register touch input after a host computer has been upgraded from Windows 10 to Windows 11.

If touch functionality was operating normally prior to the Windows 11 upgrade, verify the physical and device manager states below before reinstalling driver software or replacing hardware.

Step 1: Check for Stickers, Asset Tags, or Surface Obstructions

1. Remove All Surface Items: Peel off all asset labels, barcode tags, tape, sticky notes, and protective shipping films from the entire surface and outer border of the glass.
2. Clean Residual Adhesive: Clean the display using a standard glass cleaner or a 50/50 Isopropyl Alcohol solution to remove any tacky residue.
3. Hard Power Discharge (30 Seconds): Disconnect the AC power cable completely from the Elo monitor or terminal for 30 seconds to allow the controller's baseline acoustic/capacitive calibration to discharge fully.
4. Reconnect & Restart: Reconnect the power cable, allow the display and computer to restart normally, and test touch operation.

Reference Article: Why is touch not working on parts of my screen or not at all?

Step 2: Verify HID Touch Device State in Windows Device Manager

During Windows 11 feature upgrades, the native HID-compliant touch screen driver stack can occasionally be disabled or placed into a suspended power state by the OS.

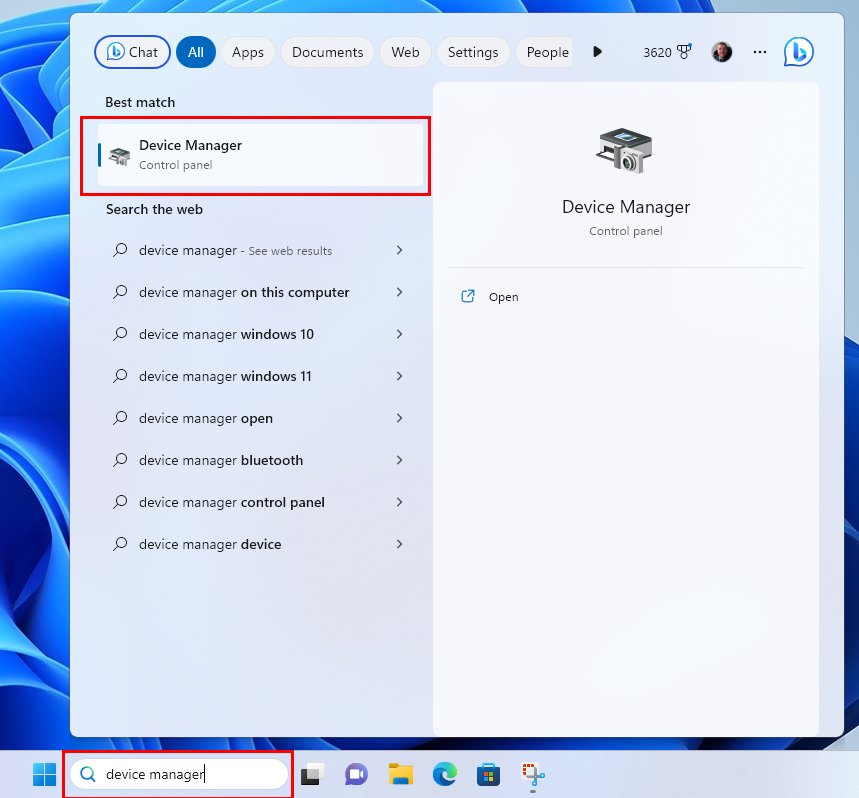

1. Open Device Manager: Type Device Manager in the Windows 11 Taskbar search box, then launch the Device Manager control panel:

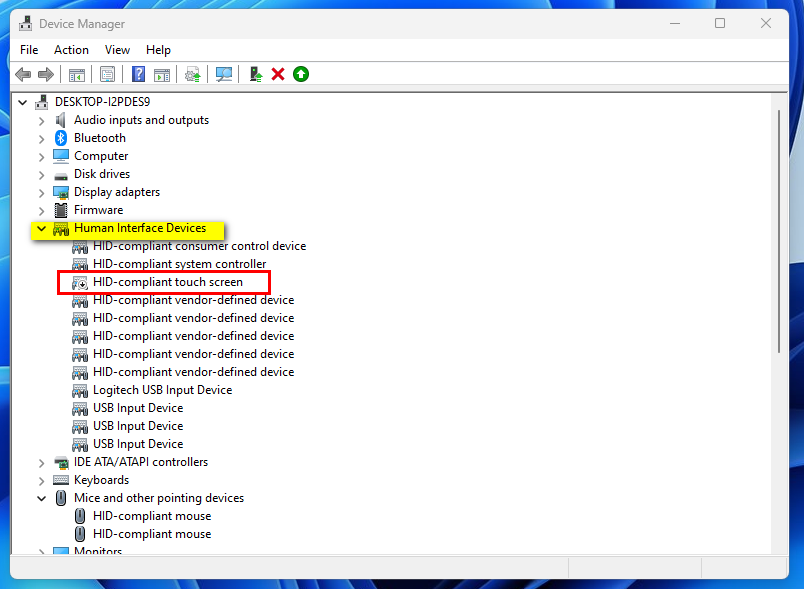

2. Locate HID Touch Screen: Expand the Human Interface Devices category, then locate and select HID-compliant touch screen:

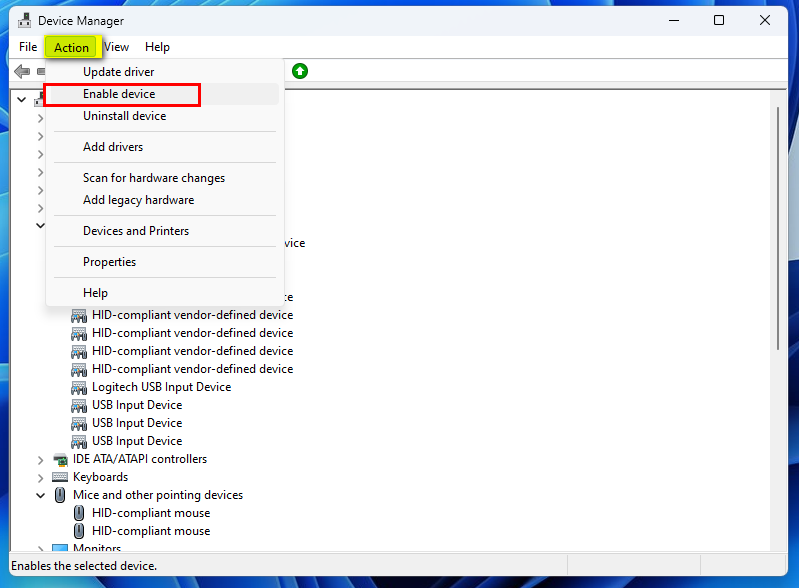

3. Enable Device (If Disabled): If the touch device displays a down-arrow disabled icon, click Action from the top toolbar (or right-click the item) and select Enable device:

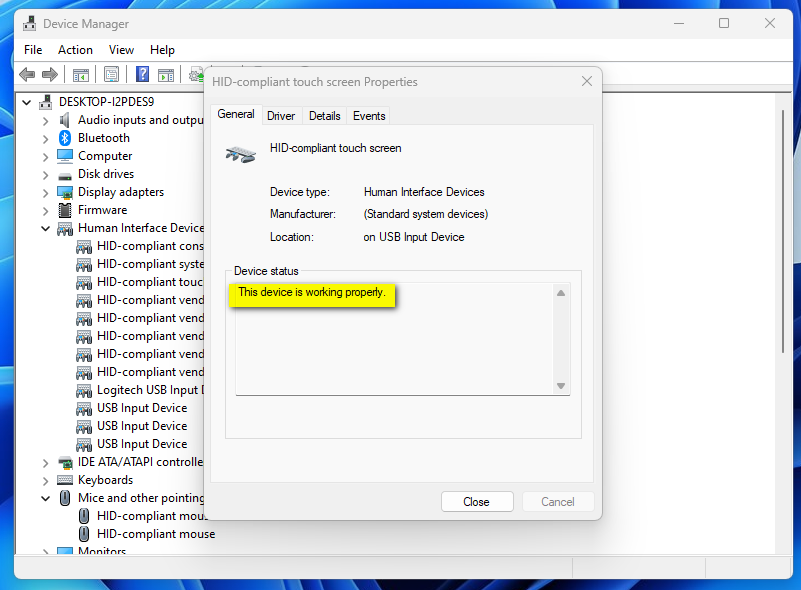

4. Verify Operating Status: Right-click HID-compliant touch screen and select Properties. Under Device status, confirm that Windows reports: "This device is working properly."



Step 3: Physical USB Cabling & Controller Diagnostics

If the device is enabled in Device Manager but touch inputs fail to register:

• Reseat USB Touch Cable: Disconnect and firmly reconnect the upstream USB communication cable (or USB-C to USB-C cable) directly between the display and the Windows 11 host.
• Bypass Hubs & Docking Stations: Connect the USB cable directly into an integrated motherboard USB port (avoiding passive external USB hubs or unpowered extensions).
• Reboot System: Restart Windows 11 to allow the HID digitizer class driver to re-enumerate endpoint descriptors.
