How Do I Verify and Update the Firmware on an Elo 0700L Monitor?
This article explains how to verify the current firmware revision and perform a firmware update on an Elo 0700L Customer Facing Display (CFD) using a Windows XP computer.
📋 Prerequisites & Required Files
Ensure you have downloaded the utilities and are operating on the correct environment before proceeding:
- Required Download: DisplayLink Utilities and Firmware CD2.zip
- Supported OS: Windows XP (or compatible test environment)
Step-by-Step Procedure
Phase 1: Environment & Driver Setup
-
Extract the Software: Download the
CD2.ziputility package above and extract its contents directly to the root of your localC:\drive (e.g.,C:\CD2).
Note: Extracting directly to the C:\ drive simplifies navigation within the Windows Command Prompt (CMD) in subsequent steps. - Hardware Connection: Connect the 0700L monitor's USB interface cables directly to the Windows XP computer.
-
Driver Installation: When the Windows "Found New Hardware Wizard" appears, decline the automatic driver search and installation.
- Manually install the specific driver provided within the downloaded package by executing the file:
DisplayLink-5.6.31548.exe.
- Manually install the specific driver provided within the downloaded package by executing the file:
Phase 2: Verifying Current Firmware & Retrieving Serial Number
-
Open a Windows Command Prompt (CMD) with Administrative privileges.
- Navigate to the folder containing the extracted firmware using the
cdcommand (e.g.,cd C:\CD2\0700L FW). - To identify your unit's current firmware revision level and obtain its hardware serial number, execute the following command:
dl_nivo --identify

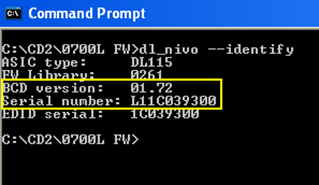

- Example identification output (as shown in the image below):
-
Firmware Version:
01.72 -
Serial Number:
L11C039300
- Navigate to the folder containing the extracted firmware using the
🛑 Important Verification
Do not interrupt power or disconnect the USB connection once the firmware programming sequence begins. Ensure you have accurately recorded the device serial number retrieved in Step 4 before running the script.
Phase 3: Upgrading the Firmware

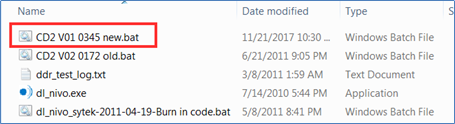

- Using Windows Explorer, navigate to the 0700L FW directory and double-click the file named:
CD2 V01 0345 new.bat.
- A dedicated command prompt window will launch, requesting the device's Serial Number. Type the Serial Number precisely as retrieved in Step 4.b (e.g.,
L11C039300) and press Enter.

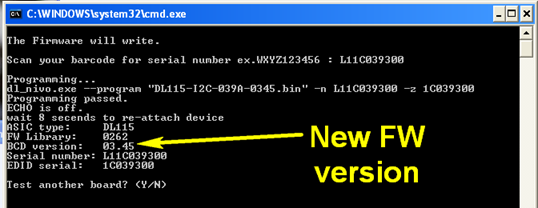

- The firmware flashing process will initialize and complete automatically within a few seconds. Once complete, the screen will display confirmation of the newly installed firmware revision.
-
Batch Deployments:
- If you have additional 0700L devices to update, type Y to continue the loop.
- If updating is complete, type N to safely exit the utility.
