How Do I Set Up the 0702L Touchscreen Monitor with Elo Android Devices?
This article describes step-by-step setup procedures for connecting and configuring the Elo 0702L 7-inch Touchscreen Monitor with supported Elo Android compute engines, including the Elo Backpack® and I-Series systems.
🔌 DisplayLink® Single-Cable Connectivity:
The Elo 0702L monitor utilizes DisplayLink technology to transmit power, video, and touch signals over a single USB physical interface. This setup requires the installation of the free DisplayLink Presenter utility app on the host Android operating system to enable video output.
Step-by-Step Hardware & Software Setup
- Establish Physical Connections: Turn on your host Elo Android device (note: if you are using the Elo Backpack, ensure a primary monitor is connected during the initial setup phase). Connect the micro-USB side of the provided Y-cable to the 0702L, and plug the two USB-A connectors into available USB ports on the host Android device.
-
Retrieve the Application: Video output on the 0702L requires the DisplayLink Presenter companion app. You can download it directly from the Google Play Store:
👉 Download DisplayLink Presenter on Google Play Store -
Install DisplayLink Presenter APK: Depending on your device's deployment configuration, complete the installation using one of the following methods:
- If using EloView: Upload the DisplayLink Presenter APK to your account content library and push the application directly to your target device group.
- If using Android Home (Standard Mode): Download the `.apk` file to a standard USB flash drive, insert the drive into your Elo device, and execute the installation locally.
-

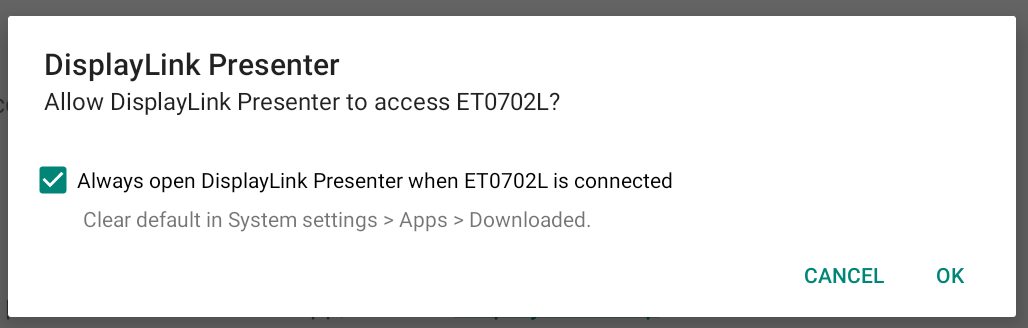

Enable Automated Launch: When you connect the 0702L, Android will prompt you with a connection dialogue. Check the box to select "Always open DisplayLink Presenter when 0702L is connected" and click OK.
-

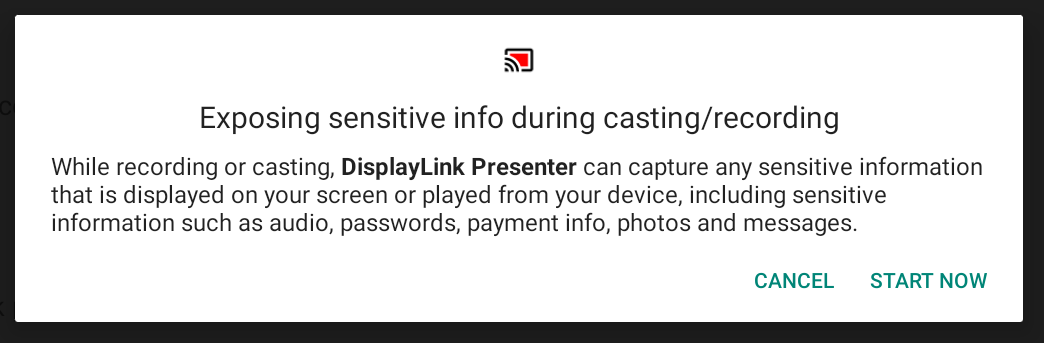

Initiate Screen Capture: When prompted with the Android screen-sharing warning dialogue, select "START NOW" to begin mirroring or extending your display onto the 0702L.
- Touch Calibration Notice: Android automatically recognizes the Projected Capacitive (PCAP) USB touch controller built into the 0702L. Touch controls will become active immediately without requiring any manual touch driver installation.
⚠️ Single Primary Monitor Setup & Delayed Display:
If you intend to use the 0702L as the sole, single primary monitor for your Elo Android system, disconnect any secondary displays connected to the compute engine and reboot the device.
Please Note: When configured as a single primary display, it can take up to 90 seconds for the Android system to load the DisplayLink drivers and output video to the 0702L after system startup.
