This article provides the steps to follow to install a 0702L on the back of an i-Series 4.0 unit

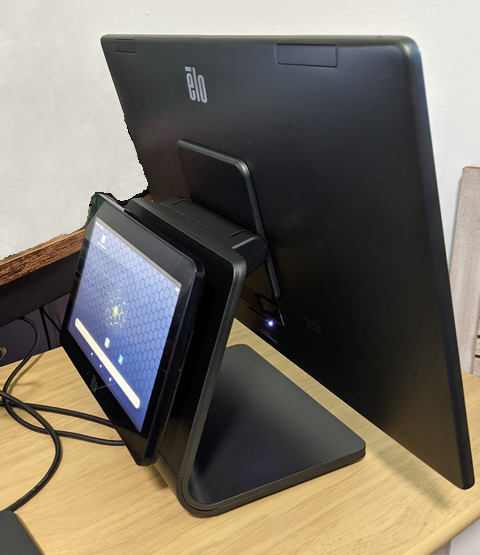

Steps for installing the Elo 0702L touchscreen monitor as a rear facing customer display on the back of an i-Series 4.0 stand.

Hardware Needed

• P/N: E796382, 0702L Touchscreen Monitor
• Elo i-Series 4.0 Slate with Stand
• 4x Phillips M4 x 0.5 x 18mm Phillips Screws
• Phillips Scewdriver

Software Needed

• DisplayLink Presenter for Android

Steps

1. Remove cable cover door from front of stand

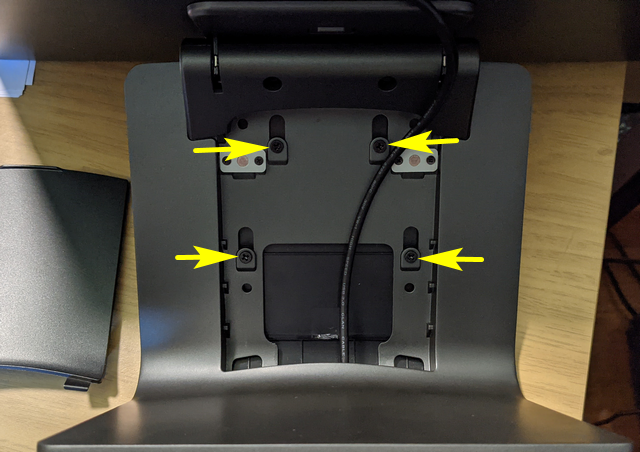

2. Remove the 4-screws indicated below

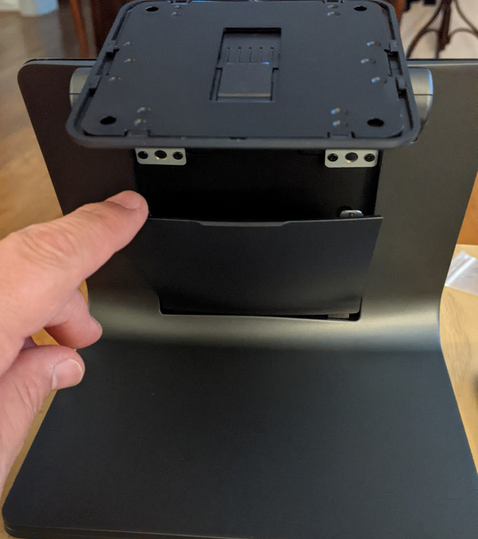

3. Slide back cover up and off of stand

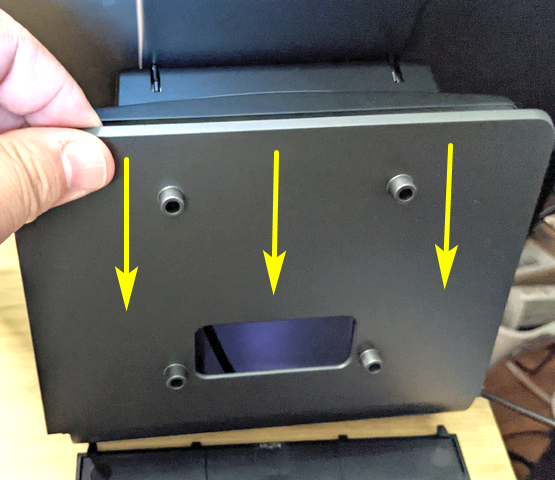

4. Slide the 75mm VESA mount adapter down into place on the back of the stand

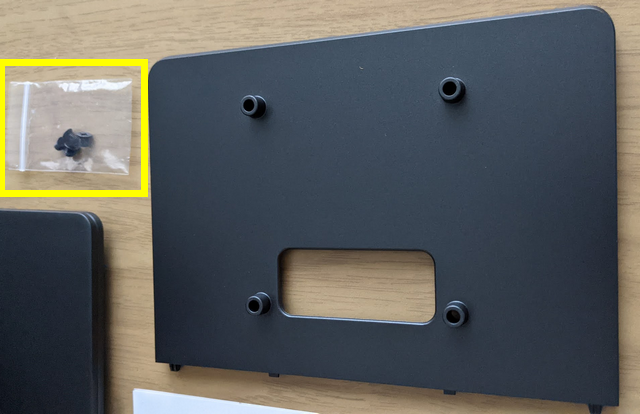

5. Use the Phillips screws that came with the i-Series 4.0 stand to secure VESA mount adapter to stand



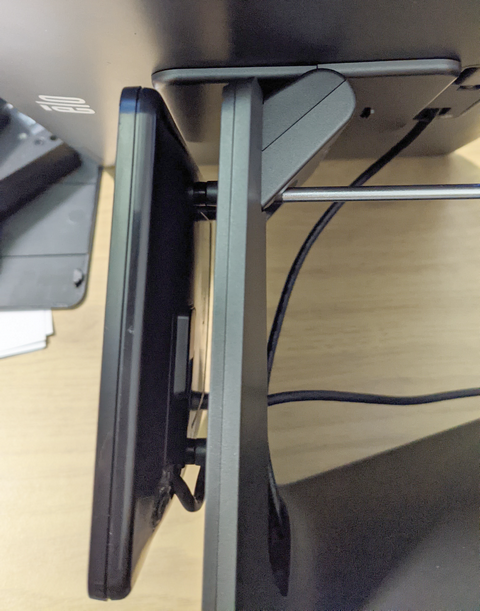

6. Align the 0702L touchscreen monitor with the 4 mounting studs on the VESA mount adapter and secure with the Phillips M4 x 18mm screws




7. Route the 0702L's Y-Cable through the cable route on stand and connect USB connectors to the i-Series 4.0 USB Hub

8. Place cable cover door back on front of stand

9. Download and install the DisplayLink Presenter app

10. The 0702L touchscreen monitor should now be fully functional
