This article provides 1502LM Dimensional Drawings

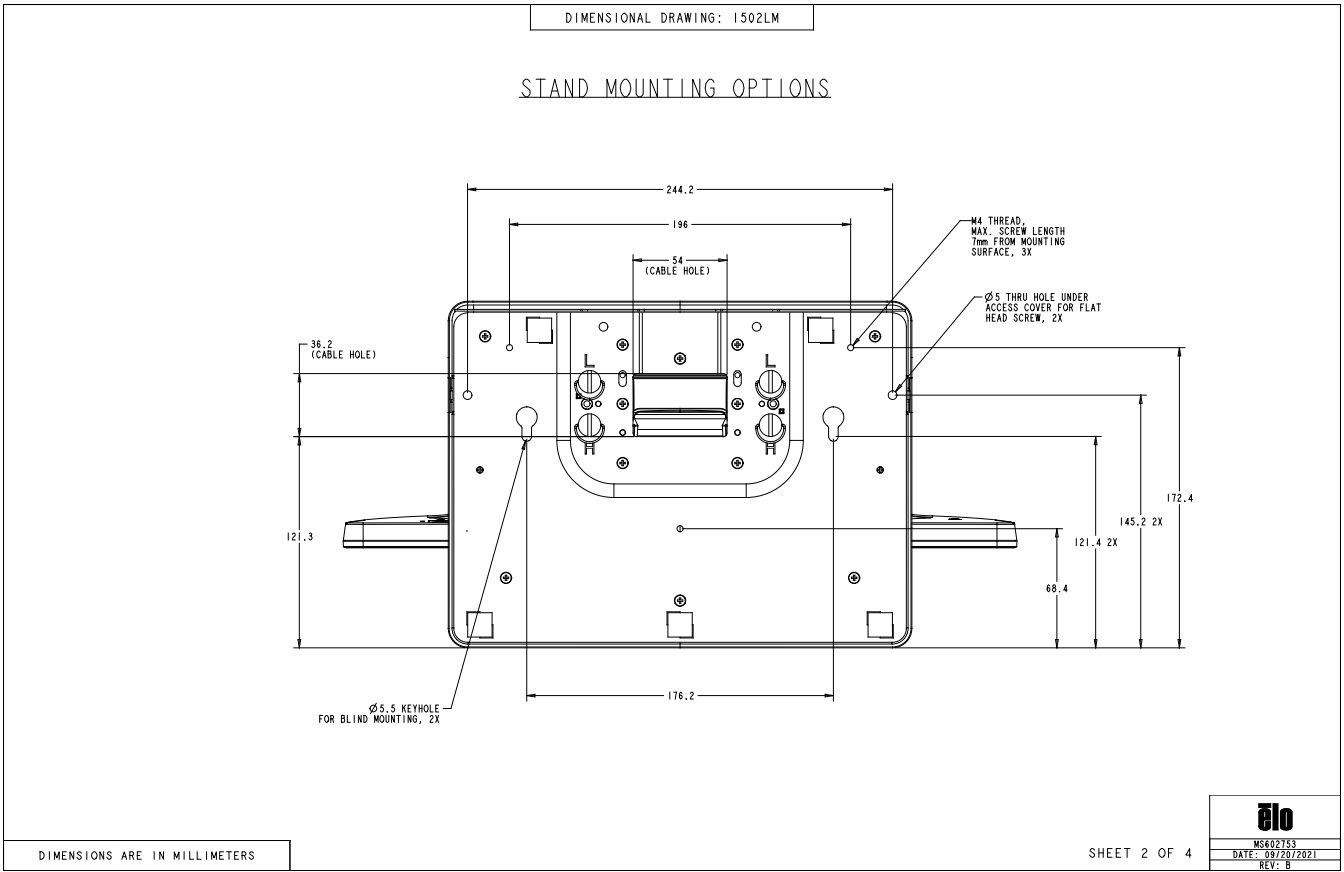

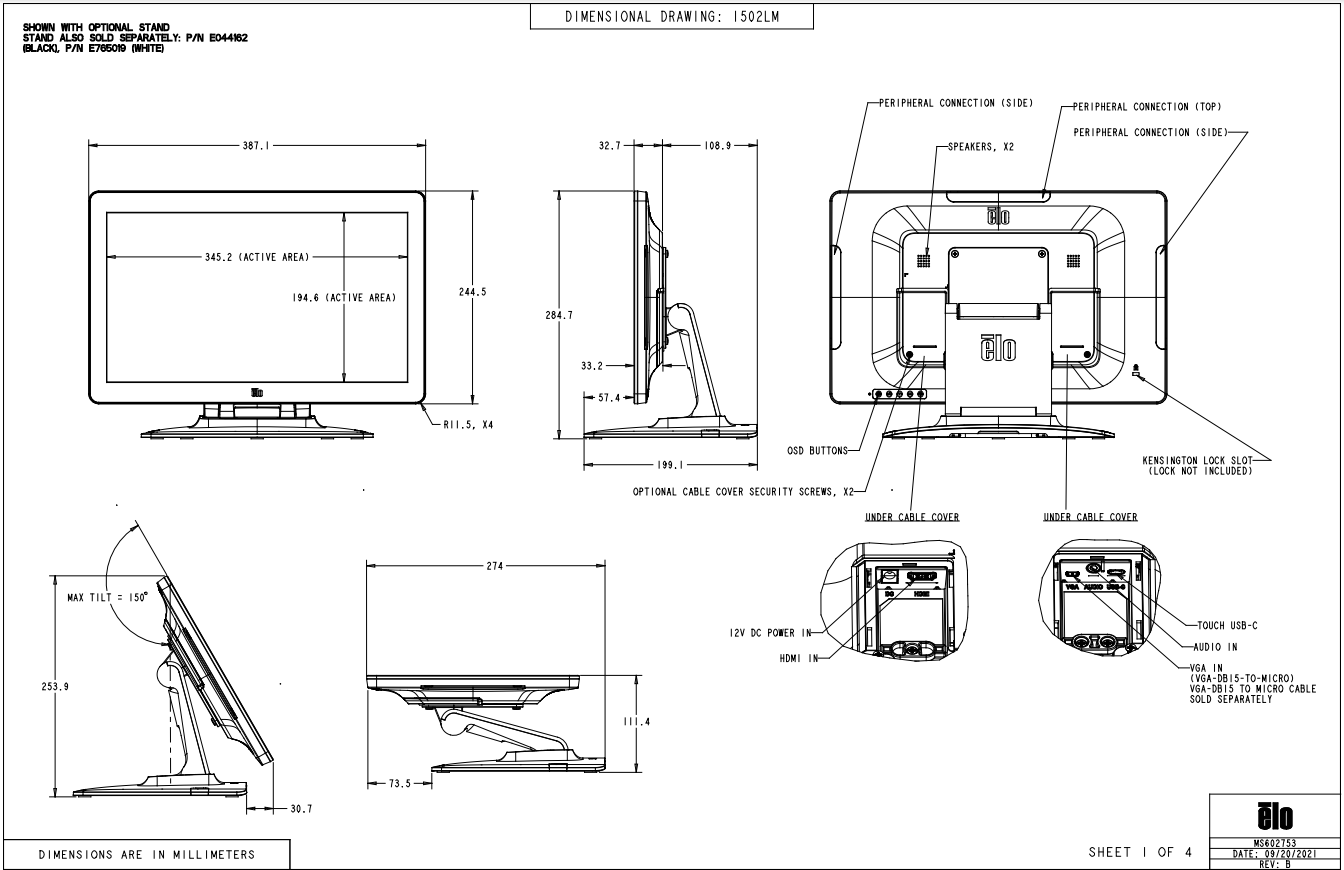

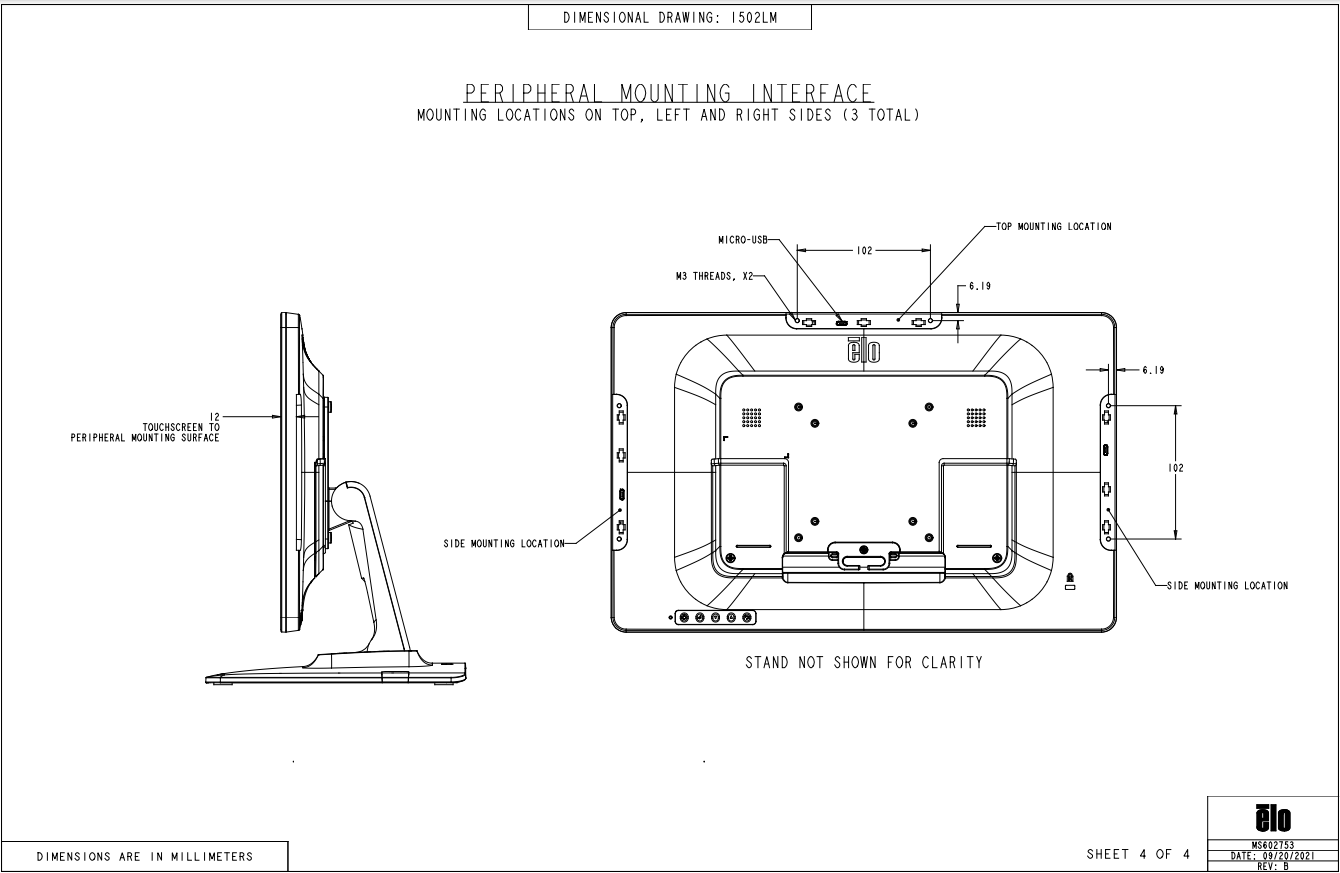

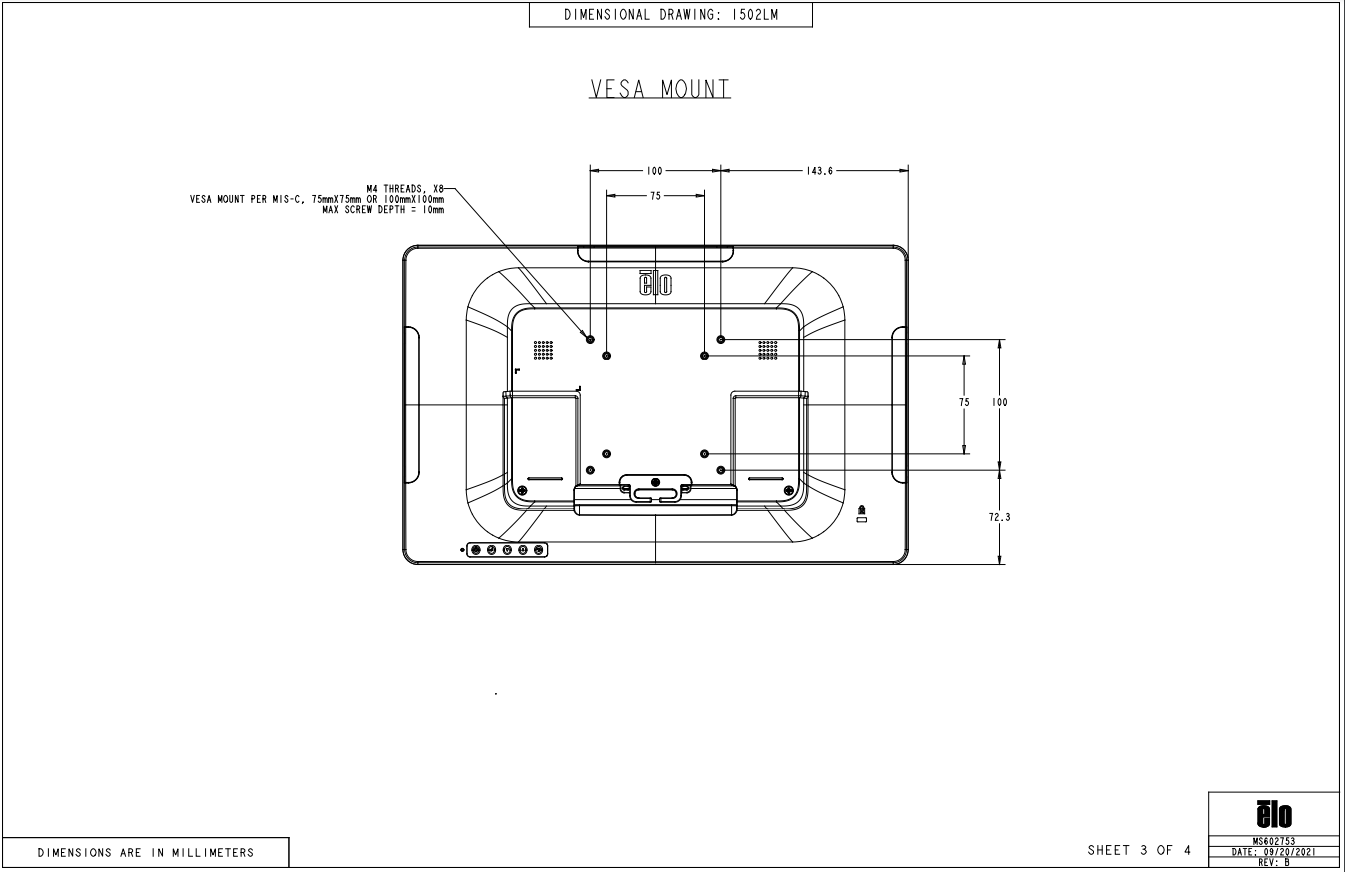

Below are drawings of the 1502LM product.
These include the following part numbers:
- White With Stand - E542808
- Black With Stand - E542617
- White Without Stand - E967255
- Black Without Stand - E967064
The above drawings can also be downloaded in .pdf form HERE
CAD drawings can be requested HERE
Please report any broken links by emailing support@elotouch.com and include a link to the knowledge article
