What are the 1502LM Mounting Options?

This article provides information about mounting the 1502LM monitor

Mounting methods for Elo 1502LM

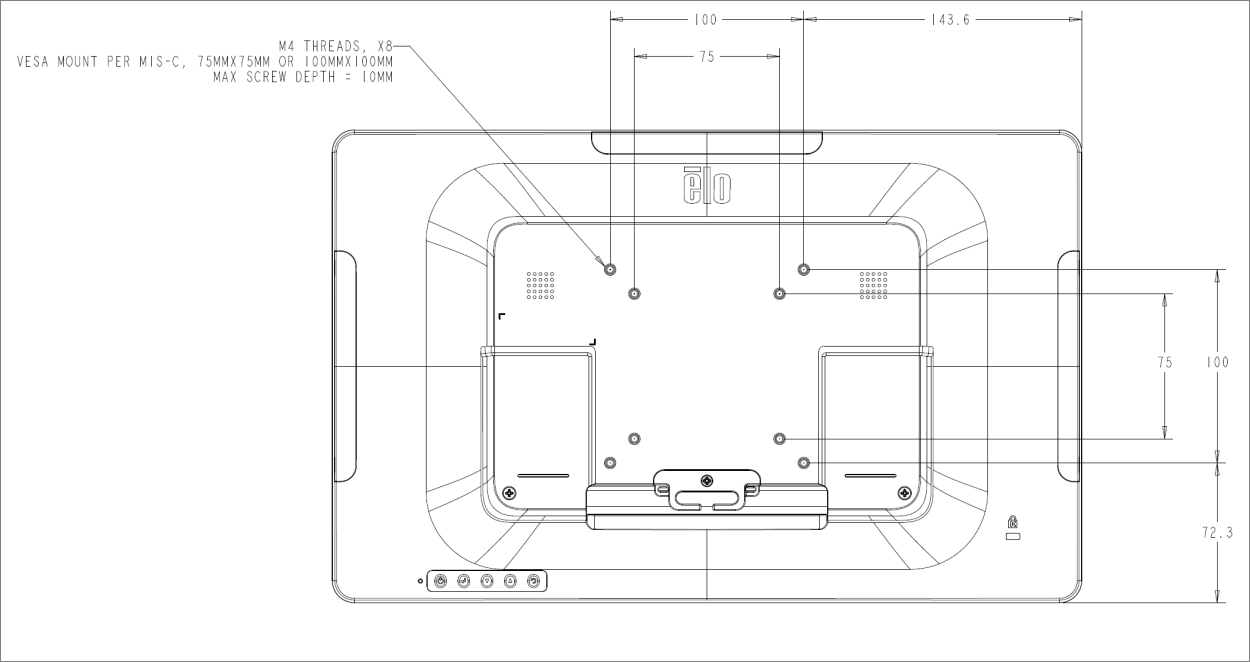

Rear VESA Mount

  • A four-hole 75x75mm and 100x100mm mounting pattern for M4 screws x 4, length 10mm is provided for fixing on the rear of the monitor.
  • Remove the stand using a Phillips screwdriver to access this mounting interface. The VESA FDMI-compliant counting is coded: VESA MIS-D, 75, C and VESA MIS-D, 100, C.

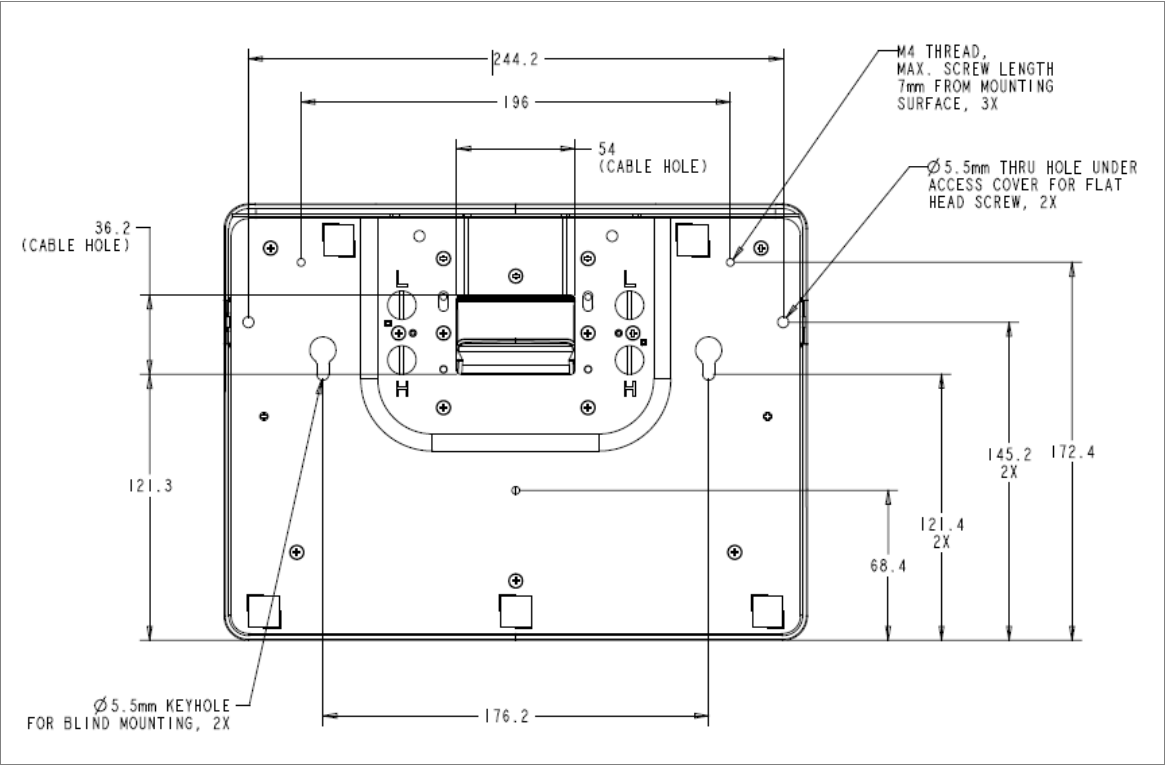

Stand base mounting options are shown below.
