This article provides instructions for replacing the Real-Time Clock (RTC) battery in an Elo Backpack® with an Intel processor.
ℹ Before You Begin
Before servicing the unit, power it off, disconnect all power and peripheral cables, and use proper ESD (electrostatic discharge) protection to help prevent damage to internal components.
Before servicing the unit, power it off, disconnect all power and peripheral cables, and use proper ESD (electrostatic discharge) protection to help prevent damage to internal components.
RTC Battery Replacement Procedure
- Place the Elo Backpack with Intel on a clean, protected work surface.
- Remove the power brick retaining screw, then remove the power brick.
- If surface mount brackets are installed, remove the four mounting screws and detach the brackets.
- Using a Phillips PH1 screwdriver, remove the fifteen (15) screws securing the chassis.
- Carefully separate the top cover from the bottom chassis.
The metal cover may adhere slightly to the enclosure. If necessary, use a plastic pry tool to gently begin separating the cover before lifting it away by hand.

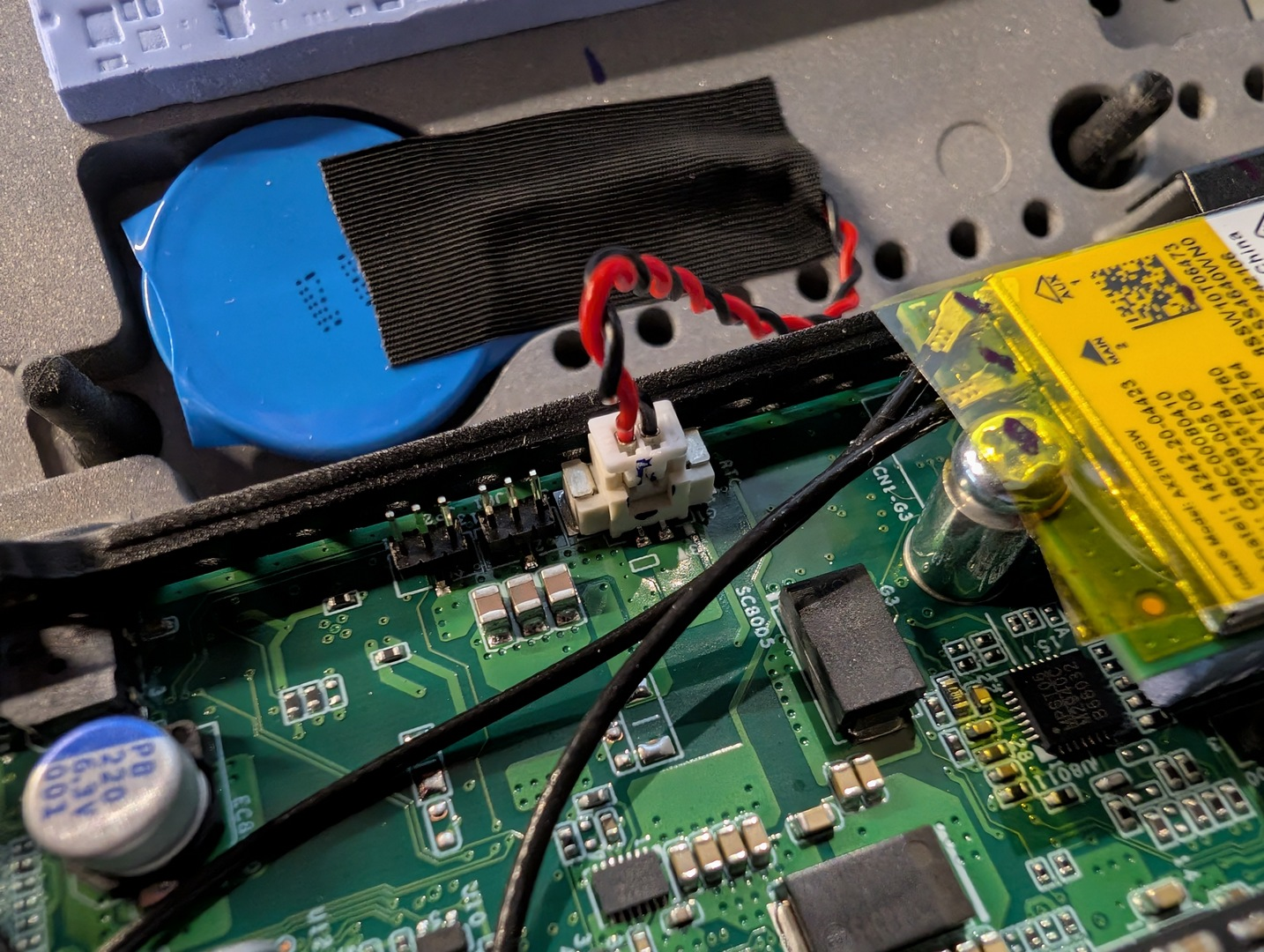

Take care not to damage the RTC battery connector or its wiring. - Disconnect the RTC battery connector from the system board.
- Carefully peel back the black cloth tape securing the RTC battery, then remove the battery from the chassis.
- Install a replacement CR2450W high-temperature coin manganese dioxide lithium battery in the original location.
- Secure the replacement battery using the original black cloth tape.
- Reconnect the RTC battery connector to the system board.
- Reassemble the Backpack by reversing the disassembly steps.
⚠ Important
Replace the RTC battery only with the same battery type or an Elo-approved equivalent: CR2450W high-temperature coin manganese dioxide lithium battery. Using an incorrect battery type may result in improper operation or damage to the system.
Replace the RTC battery only with the same battery type or an Elo-approved equivalent: CR2450W high-temperature coin manganese dioxide lithium battery. Using an incorrect battery type may result in improper operation or damage to the system.
RTC Battery Specifications
| Specification | Value |
|---|---|
| Battery Type | CR2450W |
| Chemistry | Coin manganese dioxide lithium |
| Temperature Rating | High Temperature |
💡 Tip
Replacing the RTC battery may reset the system date, time, and BIOS settings if the battery has been fully discharged. Verify the BIOS configuration and system clock after completing the replacement.
Replacing the RTC battery may reset the system date, time, and BIOS settings if the battery has been fully discharged. Verify the BIOS configuration and system clock after completing the replacement.
